P_2x3B_142

P_2x3B_142_A

Production testing

Date:3/9/2007

Operator: Cameron McKinney

start testing time:10:02 AM

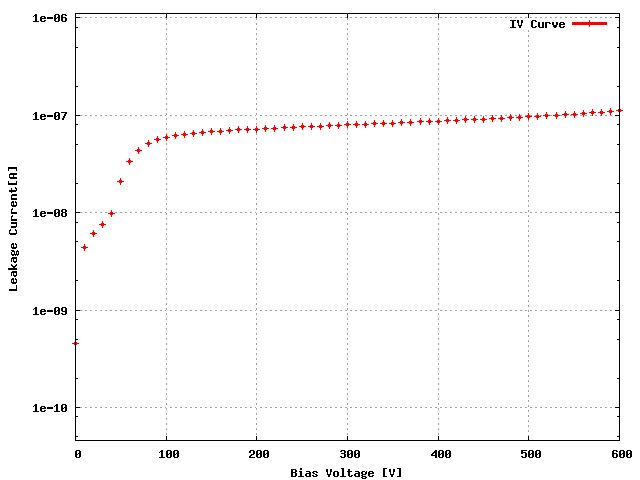

Sensor: S_2x3B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 20C

ROC1 W34_XA4K3PT 20B

ROC2 W34_XA4K3PT 20A

ROC3 W34_XA4K3PT 15C

ROC4 W34_XA4K3PT 15D

ROC5 W34_XA4K3PT 16A

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	20C
ROC1	W34_XA4K3PT	20B
ROC2	W34_XA4K3PT	20A
ROC3	W34_XA4K3PT	15C
ROC4	W34_XA4K3PT	15D
ROC5	W34_XA4K3PT	16A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 138 118 132 134 138 132

Vana, VanaData 127 114 120 126 122 135

CalDelData and plots 74 90 91 80 82 84

VthrCompData and plots 75 67 67 72 81 74

TestDdata ,TestD Plots 1 0 0 2 0 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

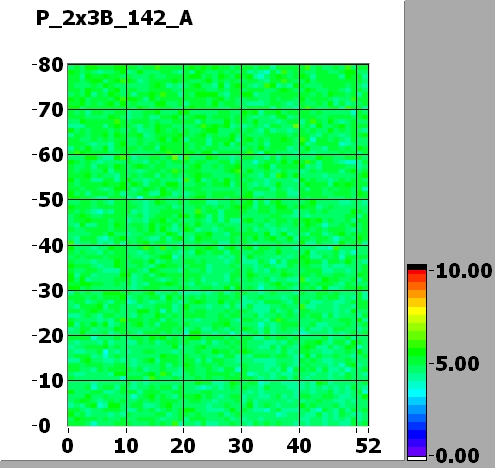

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	135	140	130	130	140	120
Vsf	140	135	135	135	140	140
VoffsetOp	90	70	70	90	80	75
VIbias_PH	100	100	100	105	95	105

ROC0 NOISE			MEAN = 4.262443 SIGMA = 0.348267
ROC1 NOISE			MEAN = 5.101472 SIGMA = 0.382650

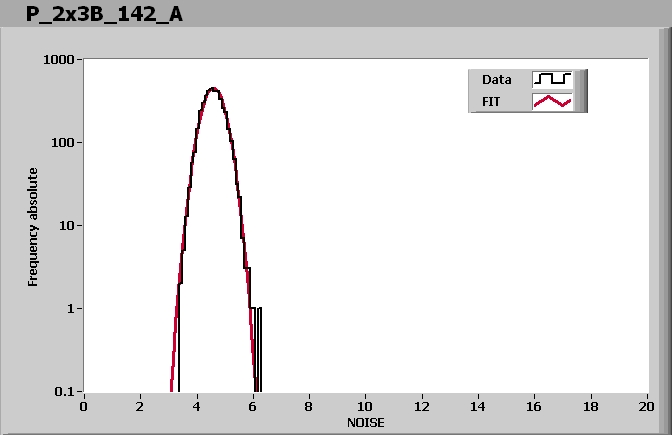

ROC2 NOISE			MEAN = 4.585776 SIGMA = 0.369555
ROC3 NOISE			MEAN = 4.822704 SIGMA = 0.380975

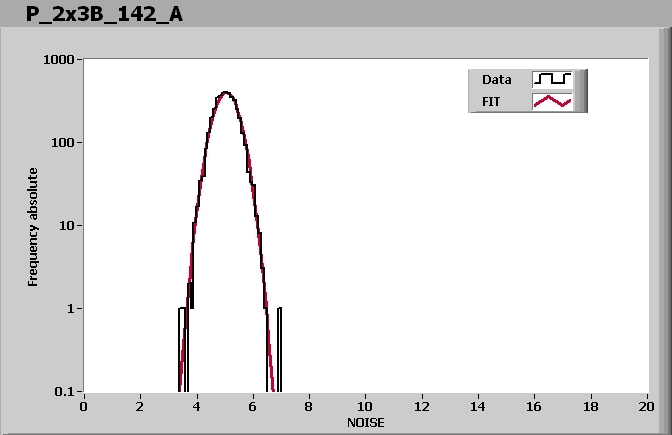

ROC4 NOISE			MEAN = 5.043355 SIGMA = 0.407840
ROC5 NOISE			MEAN = 5.583546 SIGMA = 0.454574

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:24 AM

Ibias_DAC, Ibias_DAC Data	138	118	132	134	138	132
Vana, VanaData	127	114	120	126	122	135
CalDelData and plots	74	90	91	80	82	84
VthrCompData and plots	75	67	67	72	81	74
TestDdata ,TestD Plots	1	0	0	2	0	1
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
