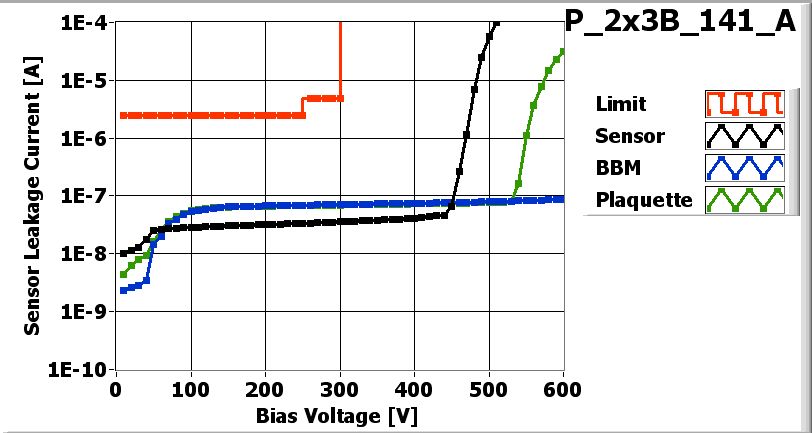

![[IMAGE] of](P_2x3B_141_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

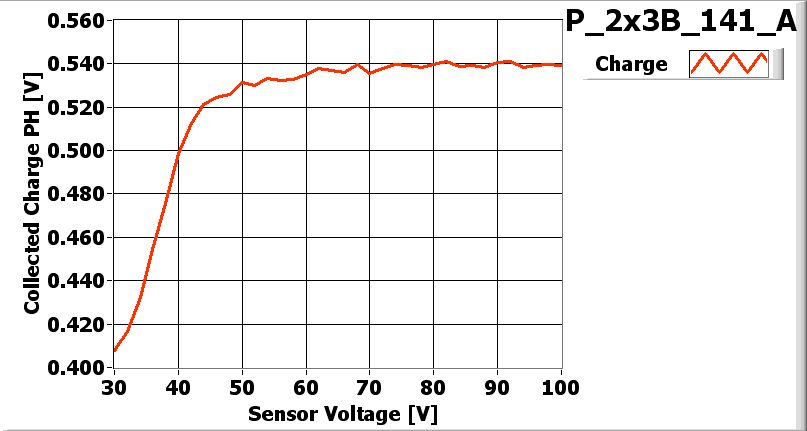

![[IMAGE] of](P_2x3B_141_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_141-2x3B |
| VHDI | 2x3_490 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 47A |
| ROC1 | W36_XD4K3LT | 46C |
| ROC2 | W36_XD4K3LT | 45C |
| ROC3 | W36_XD4K3LT | 63B |
| ROC4 | W36_XD4K3LT | 63D |
| ROC5 | W36_XD4K3LT | 64A |
Inspected by Lockwood Gale on date 3/22/2007
| LR_dev | 0.041 |
| LL_dev | 0.053 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/22/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/22/2007 by Ozhan Koybasi
P_2x3B_141_Aon 3/23/2007 10:58 AM
P_2x3B_141_Aon 3/23/2007 10:58 AM
PLAQUETTE TESTED on 2007-03-23 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 134 | 142 | 134 | 134 | 128 | |
| Vana | 142 | 112 | 124 | 137 | 127 | 140 | |
| Cal_Del | 84 | 96 | 89 | 84 | 89 | 87 | |
| Vthrs_Comp | 81 | 66 | 67 | 73 | 71 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 25 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 25 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

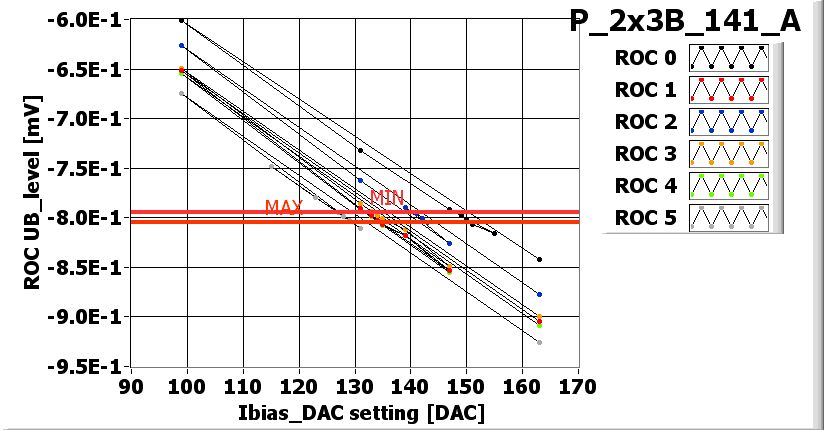

![[IMAGE] of](P_2x3B_141_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

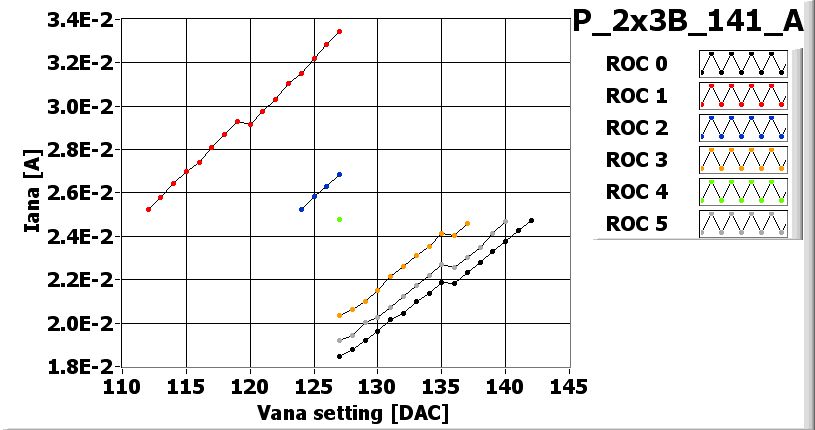

![[IMAGE] of](P_2x3B_141_A_Vana.jpg) |
VANA_XML-File |

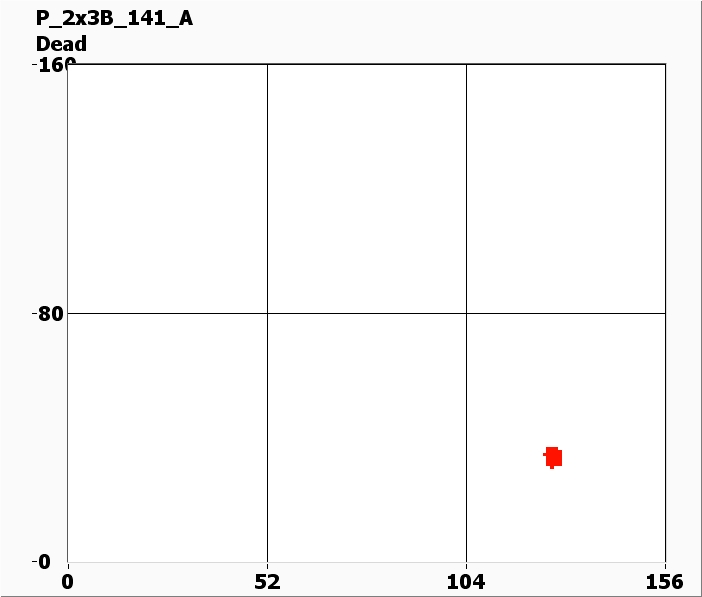

![[IMAGE] of](P_2x3B_141_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_141_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_141_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_141_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 145 | 115 | 115 | 125 | 120 |
| Vsf | 145 | 140 | 135 | 135 | 140 | 145 |
| VoffsetOp | 105 | 60 | 85 | 85 | 65 | 70 |
| VIbias_PH | 100 | 105 | 100 | 100 | 105 | 100 |

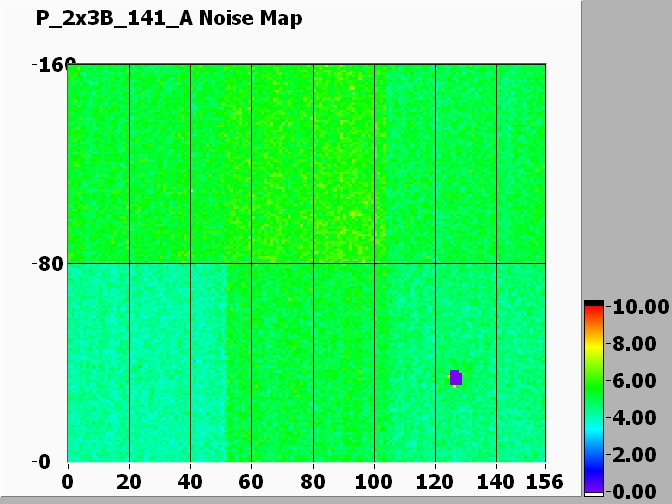

Noise MAP
![[IMAGE] of](P_2x3B_141_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_141_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
