![[IMAGE] of](P_2x3B_140_C_IV.jpg)

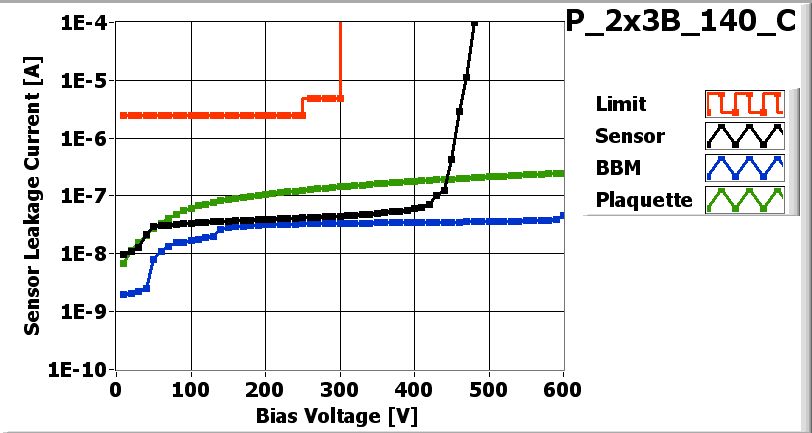

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_140_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_140-2x3B |
| VHDI | 2x3_464 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DULQEDT | 64D |
| ROC1 | DULQEDT | 27C |
| ROC2 | DULQEDT | 26B |
| ROC3 | DULQEDT | 16B |
| ROC4 | DULQEDT | 27D |
| ROC5 | DULQEDT | 25A |
Inspected by Lockwood Gale on date 6/6/2007
| LR_dev | 0.030 |
| LL_dev | 0.033 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC2 ch 35 multiple bond attempts, all wires OK. |
PLAQUETTE made READY for ENCAPSULATION on 6/6/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/6/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/6/2007 by Kozak Brian
P_2x3B_140_Con 6/7/2007 10:34 AM
P_2x3B_140_Con 6/7/2007 10:34 AM
PLAQUETTE TESTED on 2007-06-07 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 158 | 154 | 156 | 148 | 154 | |
| Vana | 139 | 161 | 138 | 142 | 148 | 157 | |
| Cal_Del | 102 | 78 | 86 | 88 | 87 | 78 | |
| Vthrs_Comp | 86 | 92 | 81 | 84 | 88 | 92 | |
| Unbumped | 1 | 0 | 8 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 8 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_140_C_Ibias-dac.jpg) |

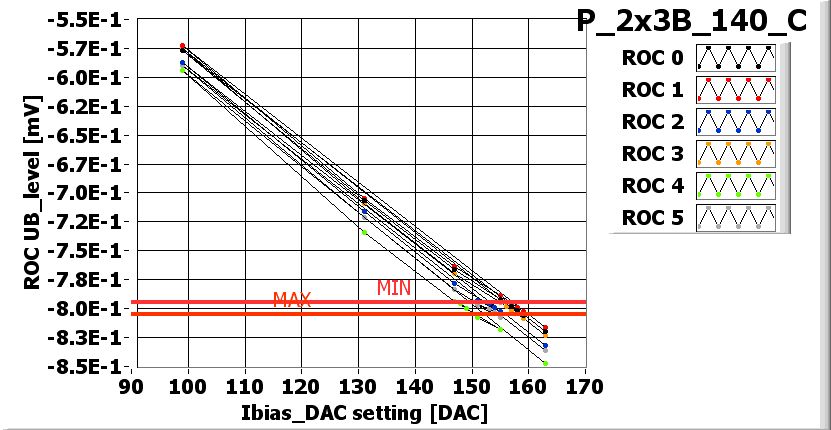

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_140_C_Vana.jpg) |

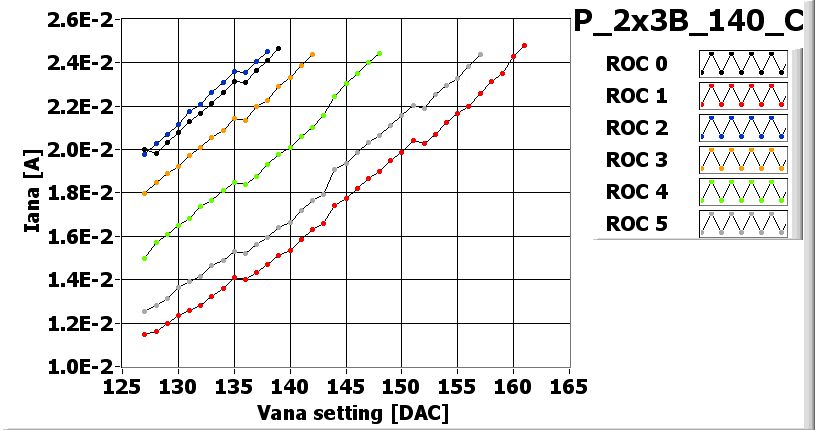

VANA_XML-File |
![[IMAGE] of](P_2x3B_140_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_140_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_140_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_140_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 105 | 95 | 105 | 95 | 100 |
| Vsf | 145 | 155 | 145 | 145 | 145 | 155 |
| VoffsetOp | 80 | 115 | 110 | 95 | 115 | 105 |
| VIbias_PH | 100 | 100 | 100 | 105 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_140_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_140_C-580-efficiency.jpg)

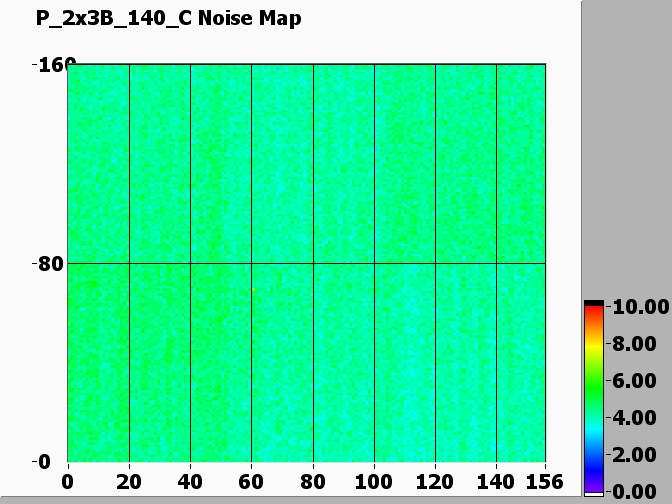

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_140_C-200-noise.jpg)

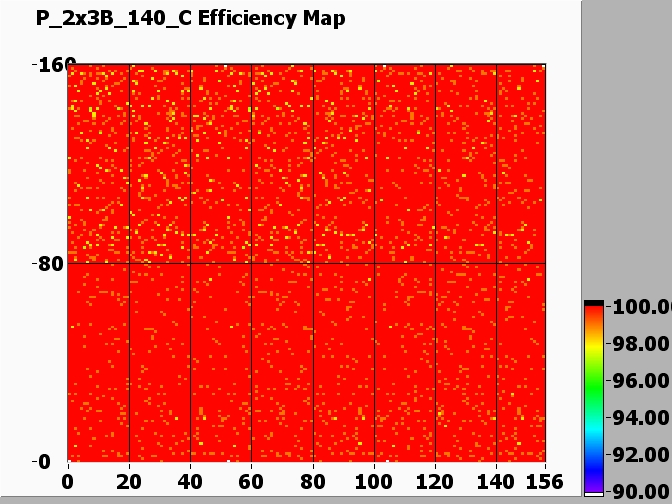

Efficiency MAP
![[IMAGE] of](P_2x3B_140_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
