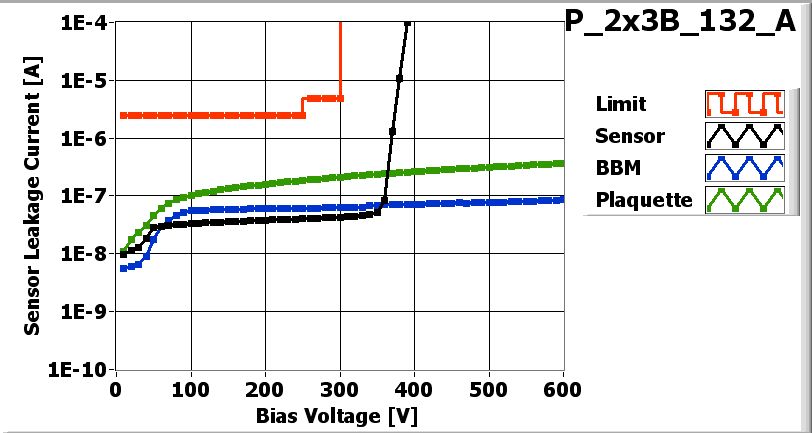

![[IMAGE] of](P_2x3B_132_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_132_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_132-2x3B |
| VHDI | 2x3_633 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 45D |
| ROC1 | W45_D3LQFLT | 45C |
| ROC2 | W45_D3LQFLT | 44D |
| ROC3 | W45_D3LQFLT | 22B |
| ROC4 | W45_D3LQFLT | 22D |
| ROC5 | W45_D3LQFLT | 23C |
Inspected by Lockwood Gale on date 6/4/2007
| LR_dev | 0.036 |
| LL_dev | 0.042 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/4/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/4/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/4/2007 by Kozak Brian
P_2x3B_132_Aon 6/5/2007 9:35 AM
P_2x3B_132_A-1on 6/5/2007 9:44 AM
P_2x3B_132_A-1on 6/5/2007 9:44 AM
PLAQUETTE TESTED on 2007-06-05 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 174 | 160 | 156 | 148 | 158 | 154 | |
| Vana | 157 | 144 | 149 | 143 | 158 | 142 | |
| Cal_Del | 71 | 78 | 85 | 80 | 76 | 97 | |
| Vthrs_Comp | 91 | 91 | 86 | 88 | 93 | 82 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 7 | 5 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 7 | 5 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

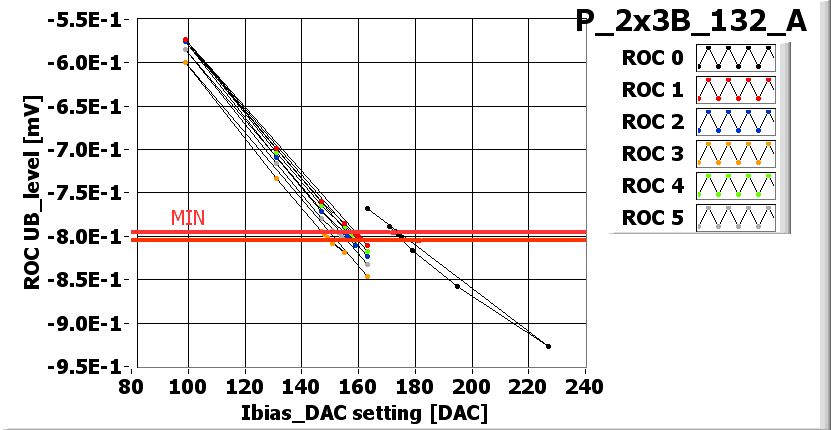

![[IMAGE] of](P_2x3B_132_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

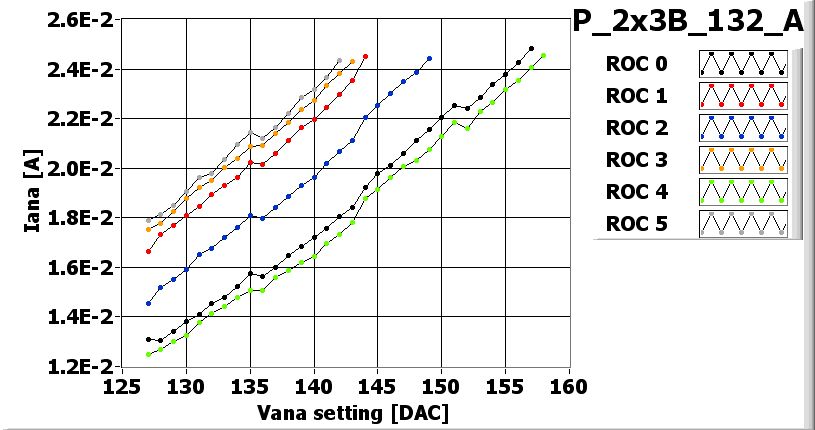

![[IMAGE] of](P_2x3B_132_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_132_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_132_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_132_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_132_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 100 | 95 | 95 | 95 | 95 |
| Vsf | 155 | 145 | 145 | 145 | 155 | 145 |
| VoffsetOp | 125 | 115 | 105 | 120 | 95 | 95 |
| VIbias_PH | 100 | 95 | 100 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_132_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_132_A-1-580-efficiency.jpg)

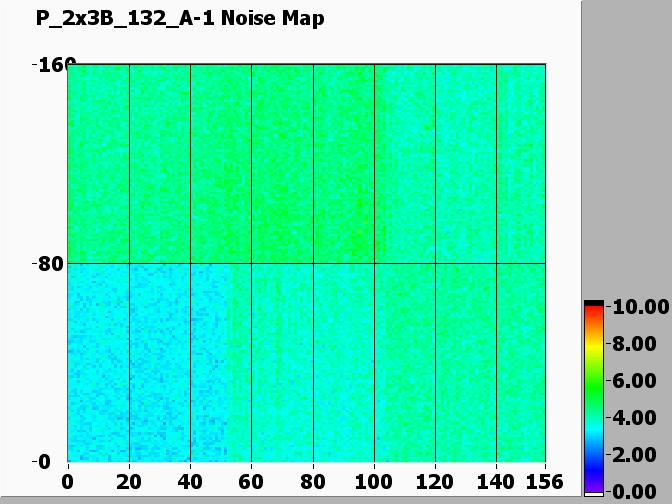

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_132_A-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_132_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
