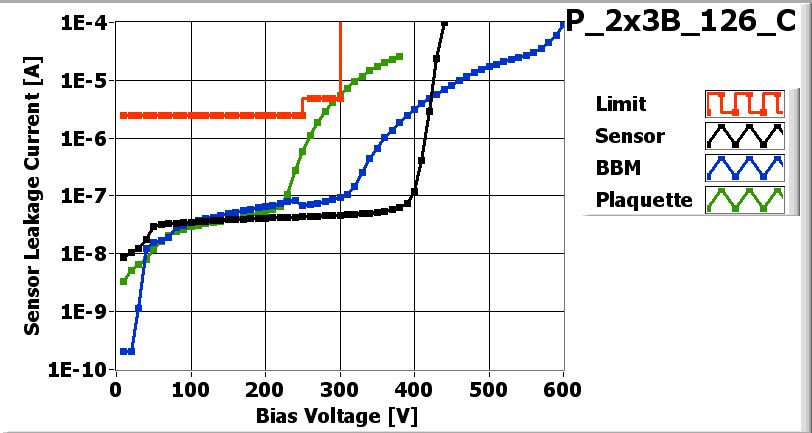

![[IMAGE] of](P_2x3B_126_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 380 V |
![[IMAGE] of](P_2x3B_126_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_126-2x3B |
| VHDI | 2x3_621 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 46D |
| ROC1 | KMNG2DT | 57D |
| ROC2 | KMNG2DT | 57B |
| ROC3 | KMNG2DT | 37D |
| ROC4 | KMNG2DT | 27A |
| ROC5 | KMNG2DT | 37A |
Inspected by Lockwood Gale on date 6/1/2007
| LR_dev | 0.034 |
| LL_dev | 0.035 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/1/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/1/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 6/1/2007 by Arndt Kirk
P_2x3B_126_Con 6/4/2007 11:45 AM
P_2x3B_126_Con 6/4/2007 11:45 AM
PLAQUETTE TESTED on 2007-06-04 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 160 | 154 | 160 | 156 | 150 | 156 | |
| Vana | 133 | 127 | 143 | 148 | 149 | 140 | |
| Cal_Del | 76 | 74 | 70 | 73 | 74 | 74 | |
| Vthrs_Comp | 78 | 82 | 85 | 90 | 89 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

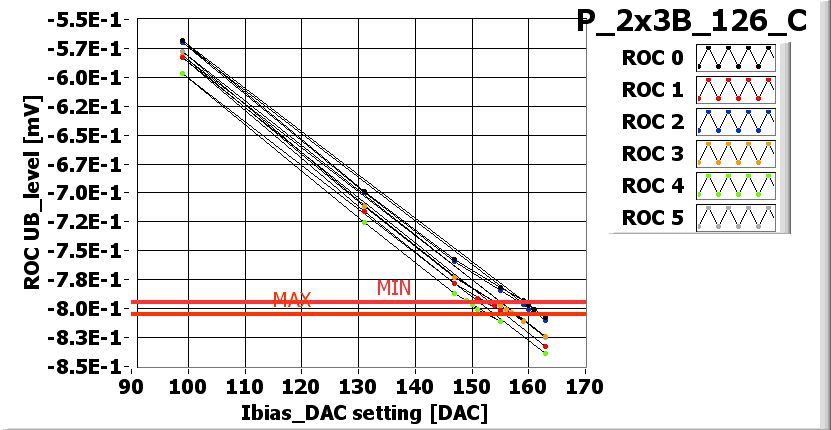

![[IMAGE] of](P_2x3B_126_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

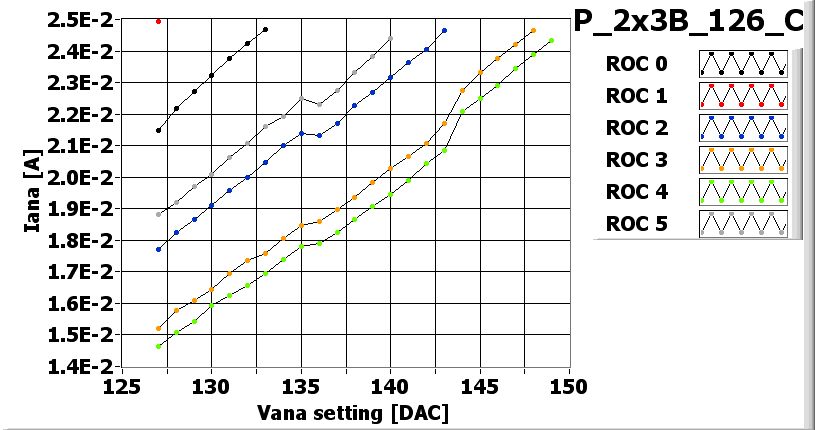

![[IMAGE] of](P_2x3B_126_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_126_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_126_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_126_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_126_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 110 | 90 | 90 | 100 | 110 |
| Vsf | 140 | 135 | 145 | 145 | 150 | 140 |
| VoffsetOp | 95 | 80 | 105 | 105 | 120 | 85 |
| VIbias_PH | 100 | 105 | 100 | 95 | 100 | 100 |

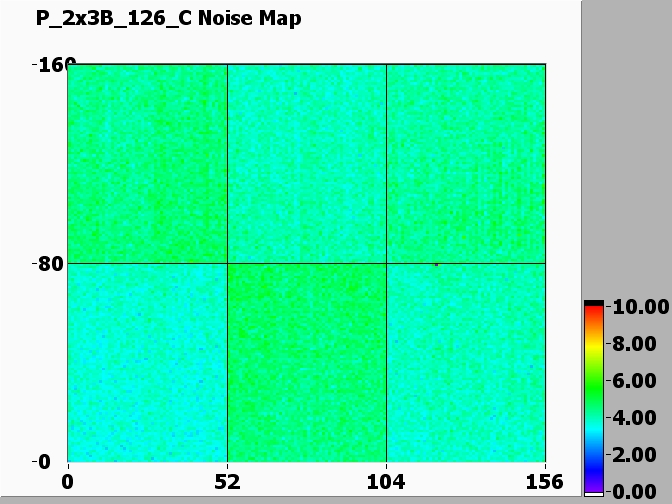

Noise MAP at VMAX
![[IMAGE] of](P_2x3B_126_C-360-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_126_C-360-efficiency.jpg)

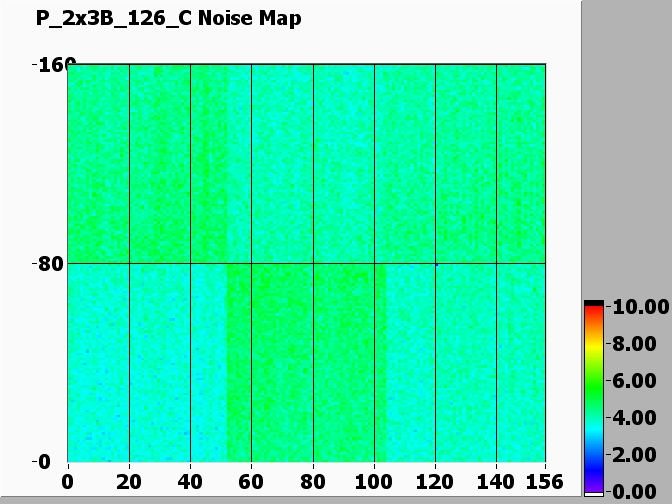

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_126_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_126_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
