P_2x3B_126

P_2x3B_126_C

Production testing

Date:6/4/2007

Operator: Emily Grace

start testing time:11:45 AM

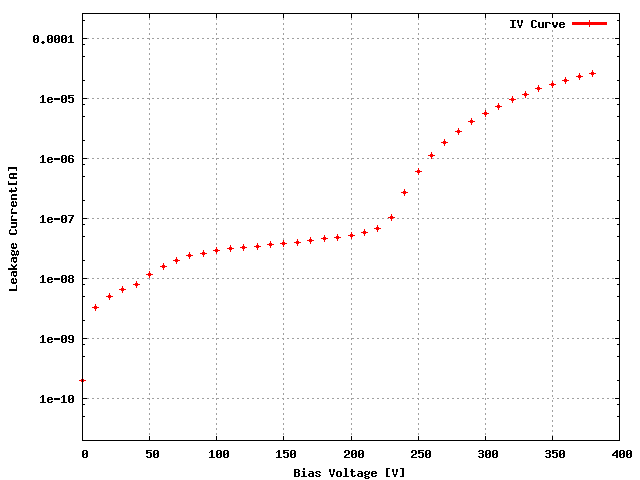

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KMNG2DT 46D

ROC1 KMNG2DT 57D

ROC2 KMNG2DT 57B

ROC3 KMNG2DT 37D

ROC4 KMNG2DT 27A

ROC5 KMNG2DT 37A

ROC	ROC wafer	Label
ROC0	KMNG2DT	46D
ROC1	KMNG2DT	57D
ROC2	KMNG2DT	57B
ROC3	KMNG2DT	37D
ROC4	KMNG2DT	27A
ROC5	KMNG2DT	37A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 160 154 160 156 150 156

Vana, VanaData 133 127 143 148 149 140

CalDelData and plots 76 74 70 73 74 74

VthrCompData and plots 78 82 85 90 89 84

TestDdata ,TestD Plots 0 1 1 0 1 1

LightData ,Light Plots 0 0 0 0 1 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

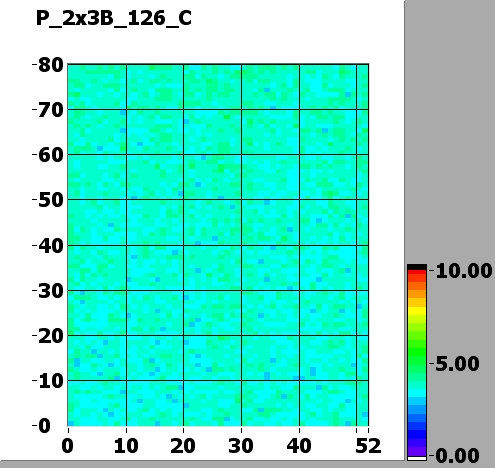

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	110	90	90	100	110
Vsf	140	135	145	145	150	140
VoffsetOp	95	80	105	105	120	85
VIbias_PH	100	105	100	95	100	100

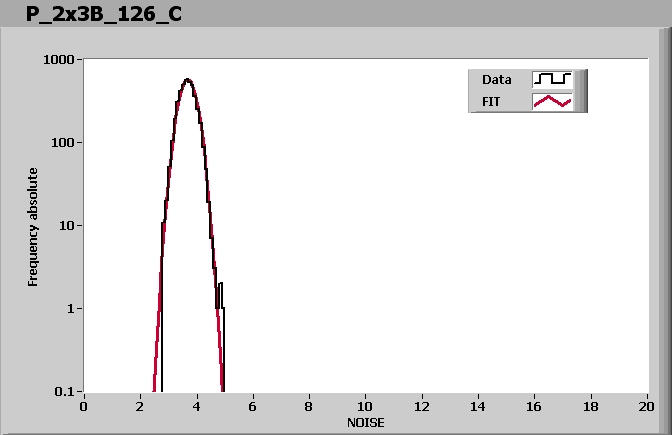

ROC0 NOISE			MEAN = 3.677924 SIGMA = 0.291178
ROC1 NOISE			MEAN = 4.523600 SIGMA = 0.369305
ROC2 NOISE			MEAN = 3.891517 SIGMA = 0.303977

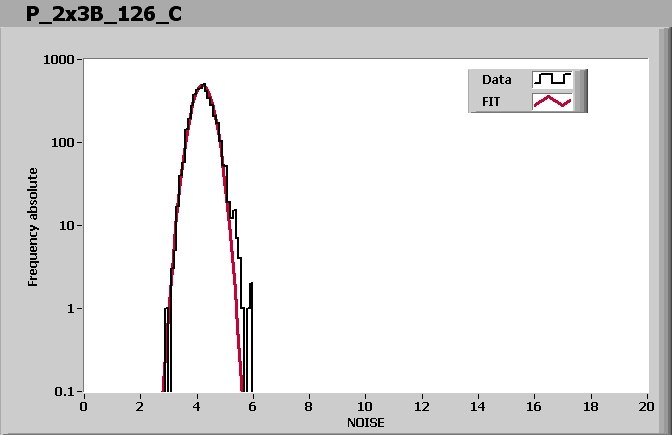

ROC3 NOISE			MEAN = 4.202030 SIGMA = 0.340136

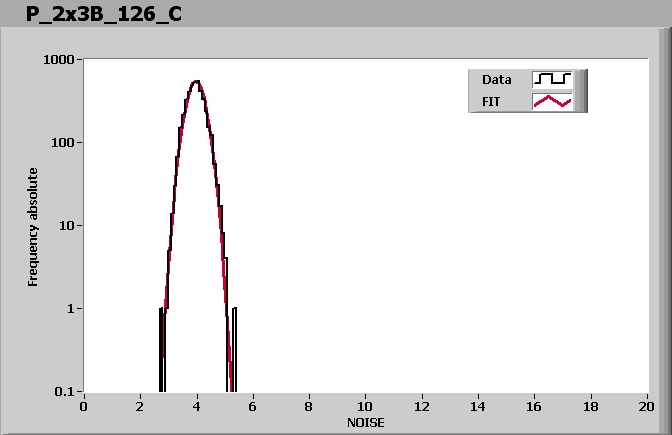

ROC4 NOISE			MEAN = 3.962066 SIGMA = 0.305476
ROC5 NOISE			MEAN = 4.405790 SIGMA = 0.349466

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:10 PM

Ibias_DAC, Ibias_DAC Data	160	154	160	156	150	156
Vana, VanaData	133	127	143	148	149	140
CalDelData and plots	76	74	70	73	74	74
VthrCompData and plots	78	82	85	90	89	84
TestDdata ,TestD Plots	0	1	1	0	1	1
LightData ,Light Plots	0	0	0	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
