![[IMAGE] of](P_2x3B_125_C_IV.jpg)

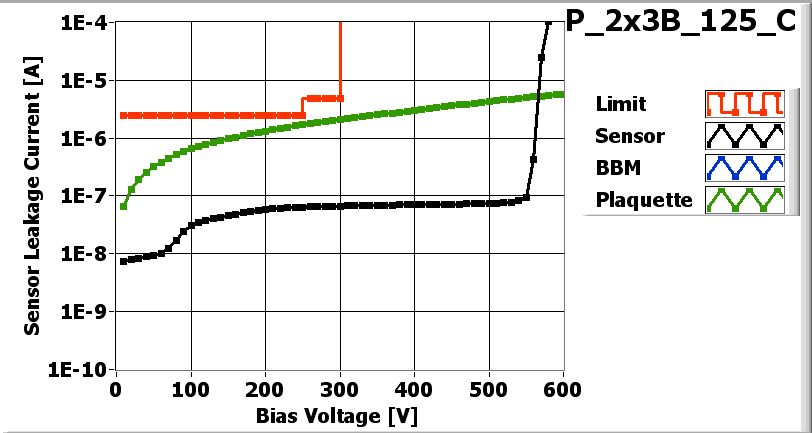

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_125_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_125-2x3B |
| VHDI | 2x3_634 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 45D |
| ROC1 | KMNG2DT | 55D |
| ROC2 | KMNG2DT | 35C |
| ROC3 | KMNG2DT | 06B |
| ROC4 | KMNG2DT | 06A |
| ROC5 | KMNG2DT | 16D |
Inspected by Lockwood Gale on date 6/5/2007
| LR_dev | 0.051 |
| LL_dev | 0.042 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 4, Ch 1, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/5/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/5/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/5/2007 by Kozak Brian
P_2x3B_125_Con 6/5/2007 6:22 PM
P_2x3B_125_Con 6/5/2007 6:22 PM
PLAQUETTE TESTED on 2007-06-05 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 162 | 154 | 162 | 144 | 168 | |
| Vana | 141 | 139 | 134 | 149 | 132 | 148 | |
| Cal_Del | 73 | 83 | 79 | 68 | 70 | 75 | |
| Vthrs_Comp | 75 | 82 | 81 | 87 | 81 | 91 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_125_C_Ibias-dac.jpg) |

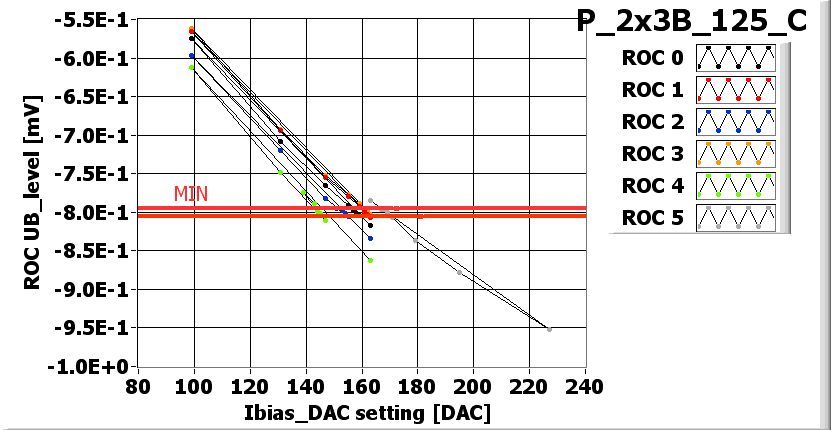

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_125_C_Vana.jpg) |

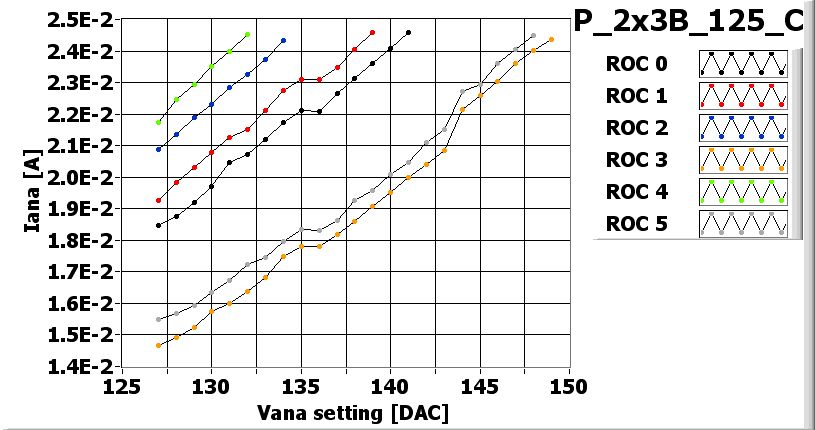

VANA_XML-File |
![[IMAGE] of](P_2x3B_125_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_125_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_125_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_125_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 95 | 110 | 105 | 105 | 100 |
| Vsf | 145 | 145 | 145 | 150 | 140 | 145 |
| VoffsetOp | 110 | 90 | 85 | 110 | 90 | 80 |
| VIbias_PH | 95 | 105 | 105 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_125_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_125_C-580-efficiency.jpg)

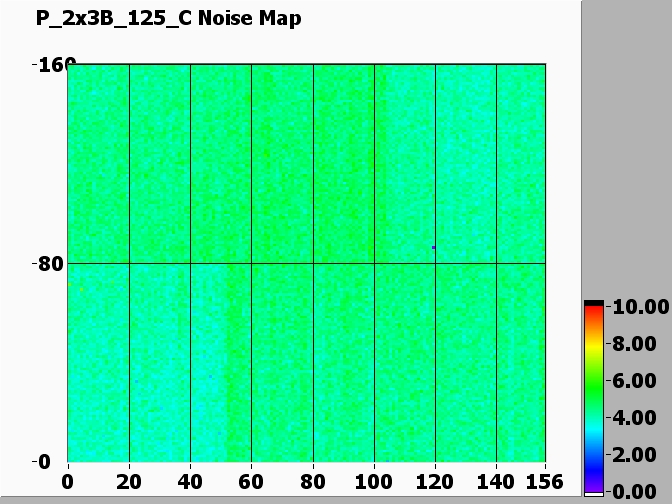

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_125_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_125_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
