P_2x3B_125

P_2x3B_125_C

Production testing

Date:6/5/2007

Operator: Emily Grace

start testing time:6:22 PM

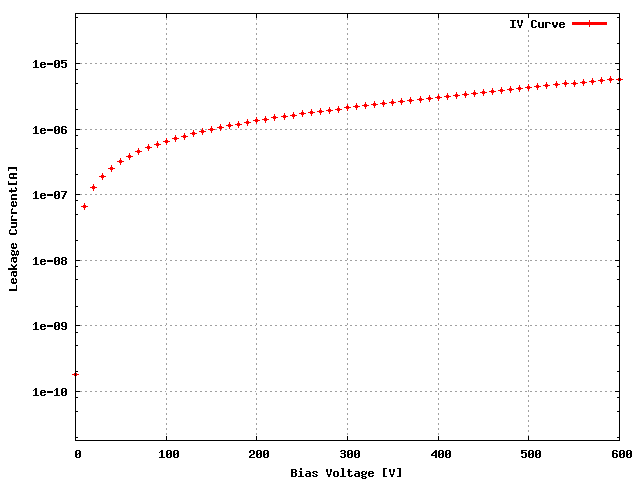

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KMNG2DT 45D

ROC1 KMNG2DT 55D

ROC2 KMNG2DT 35C

ROC3 KMNG2DT 06B

ROC4 KMNG2DT 06A

ROC5 KMNG2DT 16D

ROC	ROC wafer	Label
ROC0	KMNG2DT	45D
ROC1	KMNG2DT	55D
ROC2	KMNG2DT	35C
ROC3	KMNG2DT	06B
ROC4	KMNG2DT	06A
ROC5	KMNG2DT	16D

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 158 162 154 162 144 168

Vana, VanaData 141 139 134 149 132 148

CalDelData and plots 73 83 79 68 70 75

VthrCompData and plots 75 82 81 87 81 91

TestDdata ,TestD Plots 1 0 1 1 0 1

LightData ,Light Plots 0 0 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	95	110	105	105	100
Vsf	145	145	145	150	140	145
VoffsetOp	110	90	85	110	90	80
VIbias_PH	95	105	105	100	100	100

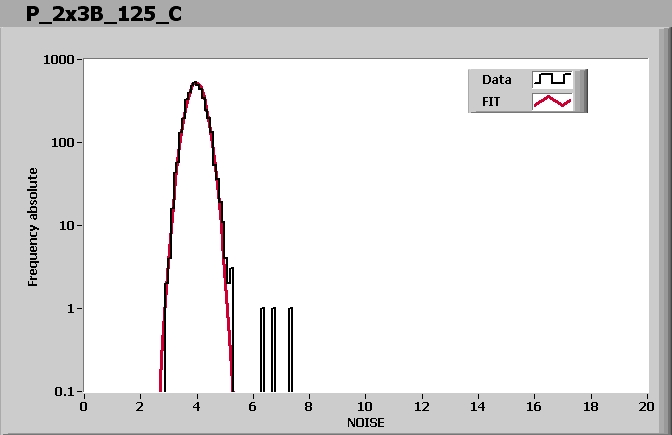

ROC0 NOISE			MEAN = 3.972222 SIGMA = 0.312668
ROC1 NOISE			MEAN = 4.392981 SIGMA = 0.370093
ROC2 NOISE			MEAN = 4.320172 SIGMA = 0.343580
ROC3 NOISE			MEAN = 4.121645 SIGMA = 0.349529
ROC4 NOISE			MEAN = 4.606339 SIGMA = 0.354906

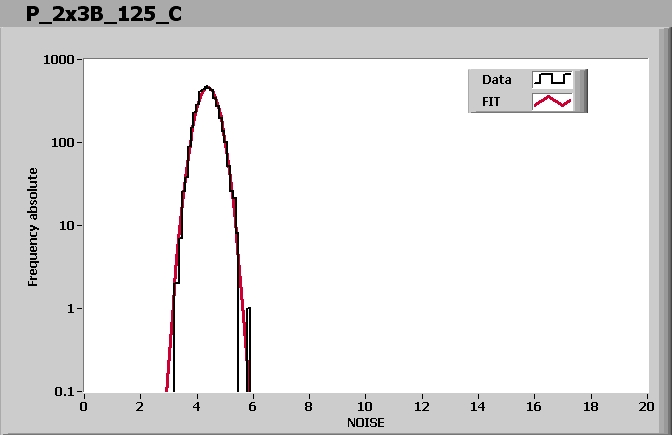

ROC5 NOISE			MEAN = 4.383291 SIGMA = 0.355138

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 6:46 PM

Ibias_DAC, Ibias_DAC Data	158	162	154	162	144	168
Vana, VanaData	141	139	134	149	132	148
CalDelData and plots	73	83	79	68	70	75
VthrCompData and plots	75	82	81	87	81	91
TestDdata ,TestD Plots	1	0	1	1	0	1
LightData ,Light Plots	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
