![[IMAGE] of](P_2x3B_124_A-0.jpg)
Parts committed by Bolla Gino on date 3/22/2007
| Part | ID |
|---|---|
| BBM | BBM_124-2x3B |
| VHDI | 2x3_503 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 64A |
| ROC1 | W35_XH4K3HT | 63D |
| ROC2 | W35_XH4K3HT | 63B |
| ROC3 | W36_XD4K3LT | 24C |
| ROC4 | W36_XD4K3LT | 24D |
| ROC5 | W36_XD4K3LT | 25A |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.026 |
| LL_dev | 0.056 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
Inspected by Arndt Kirk on date 3/27/2007
| Picture | Comment |
|---|---|

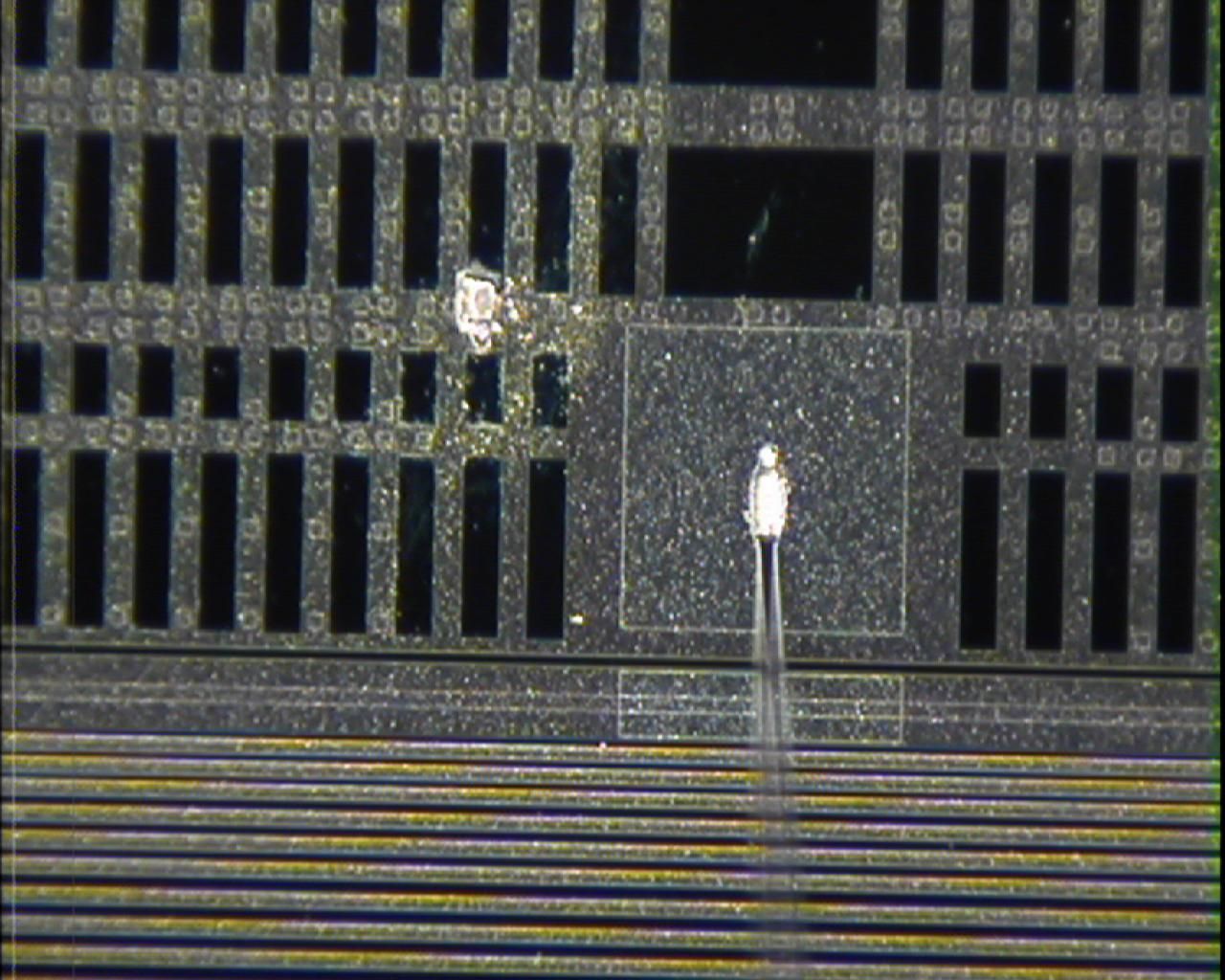

| Vacuum was inadequate on wirebonder workholder during initial attempt to bond sensor bias wirebond. Plaquette cassette moved and bond foot was stuck to sensor p-side near bias bond pad at HDI wirebond pad end of plaquette. Bond foot was wiped with clean swab to remove tail of bond. |
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x3B_124_Aon 3/29/2007 10:59 AM
P_2x3B_124_Aon 3/29/2007 10:59 AM
PLAQUETTE TESTED on 2007-03-29 by Joseph Clampitt

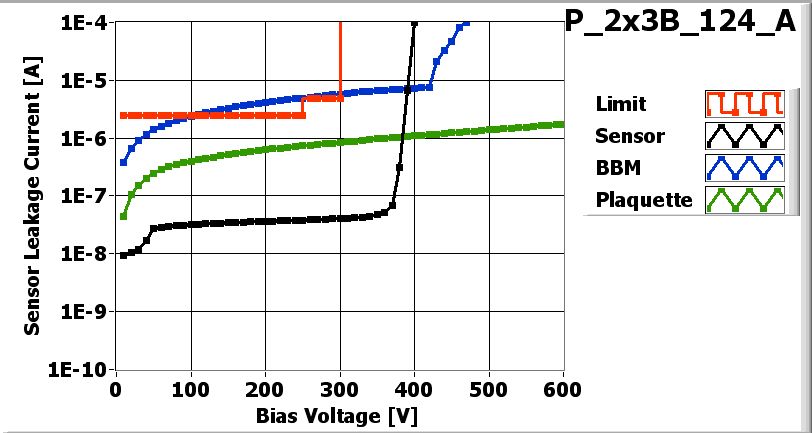

![[IMAGE] of](P_2x3B_124_A_IV.jpg) |
|
|||

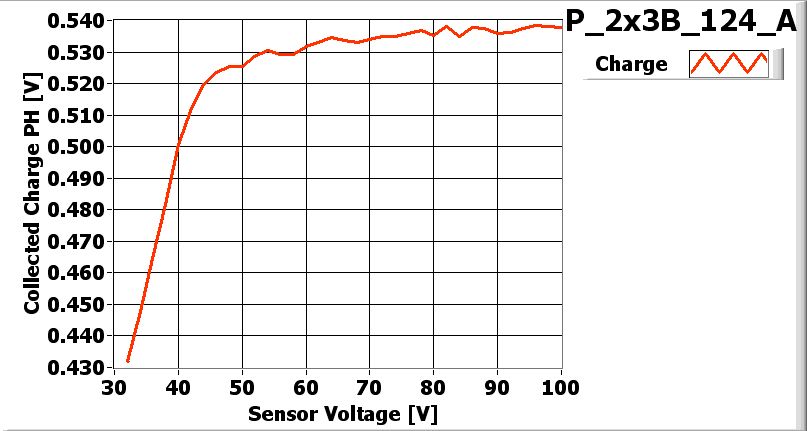

![[IMAGE] of](P_2x3B_124_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 120 | 134 | 140 | 142 | 130 | |
| Vana | 140 | 125 | 129 | 132 | 138 | 139 | |
| Cal_Del | 85 | 85 | 79 | 94 | 100 | 91 | |
| Vthrs_Comp | 88 | 84 | 82 | 74 | 71 | 73 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

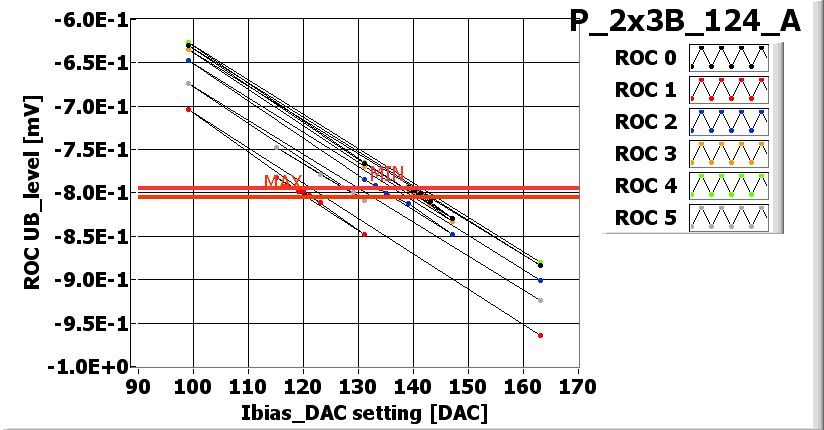

![[IMAGE] of](P_2x3B_124_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

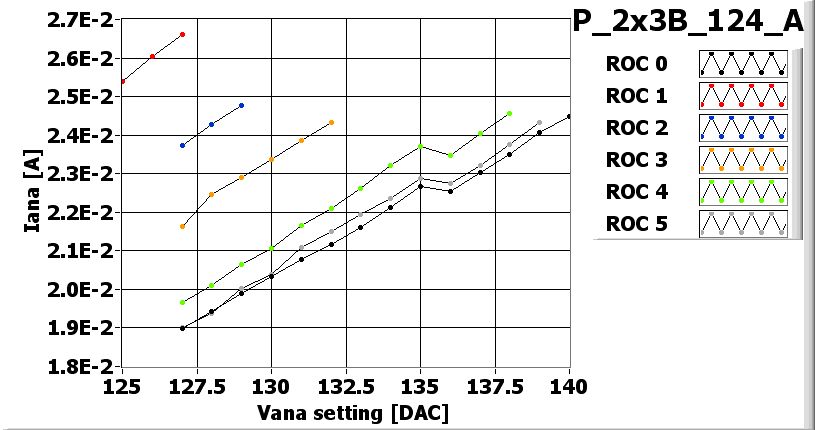

![[IMAGE] of](P_2x3B_124_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_124_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_124_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_124_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_124_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 125 | 130 | 95 | 115 | 135 |
| Vsf | 140 | 140 | 135 | 140 | 140 | 140 |
| VoffsetOp | 95 | 80 | 75 | 90 | 75 | 85 |
| VIbias_PH | 100 | 100 | 100 | 105 | 100 | 100 |

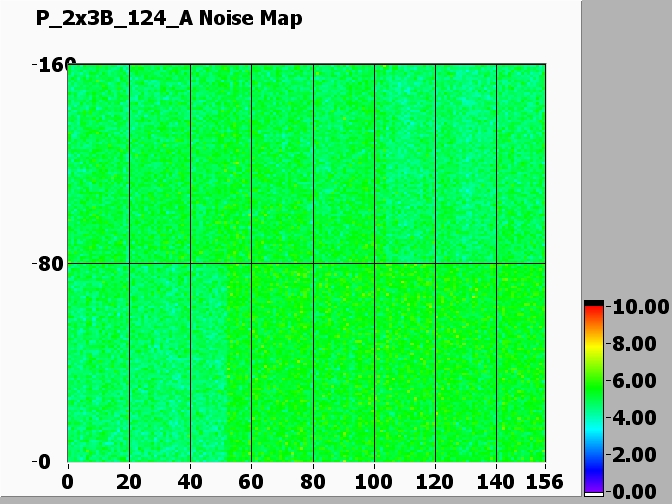

Noise MAP
![[IMAGE] of](P_2x3B_124_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_124_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
