P_2x3B_124

P_2x3B_124_A

Production testing

Date:3/29/2007

Operator: Joseph Clampitt

start testing time:10:59 AM

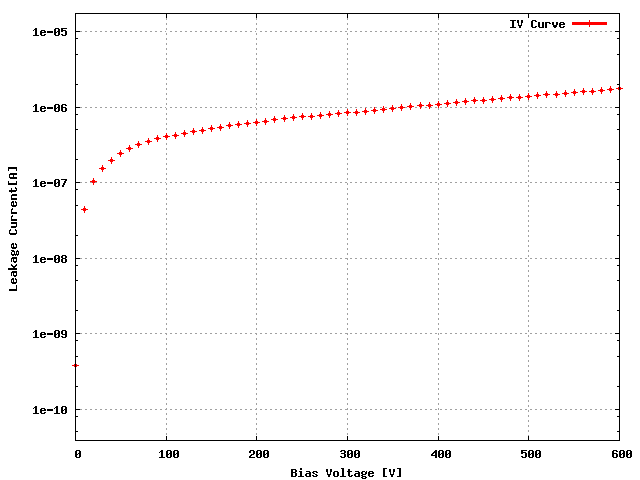

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W35_XH4K3HT 64A

ROC1 W35_XH4K3HT 63D

ROC2 W35_XH4K3HT 63B

ROC3 W36_XD4K3LT 24C

ROC4 W36_XD4K3LT 24D

ROC5 W36_XD4K3LT 25A

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	64A
ROC1	W35_XH4K3HT	63D
ROC2	W35_XH4K3HT	63B
ROC3	W36_XD4K3LT	24C
ROC4	W36_XD4K3LT	24D
ROC5	W36_XD4K3LT	25A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 140 120 134 140 142 130

Vana, VanaData 140 125 129 132 138 139

CalDelData and plots 85 85 79 94 100 91

VthrCompData and plots 88 84 82 74 71 73

TestDdata ,TestD Plots 2 0 0 1 2 60

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD BAD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	125	130	95	115	135
Vsf	140	140	135	140	140	140
VoffsetOp	95	80	75	90	75	85
VIbias_PH	100	100	100	105	100	100

ROC0 NOISE			MEAN = 4.724758 SIGMA = 0.353513

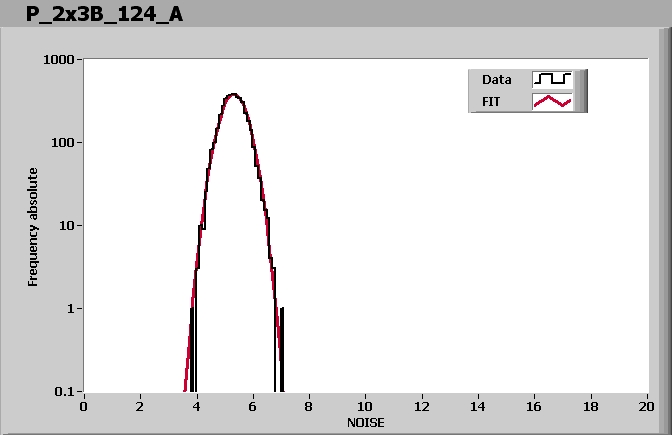

ROC1 NOISE			MEAN = 5.316399 SIGMA = 0.431314

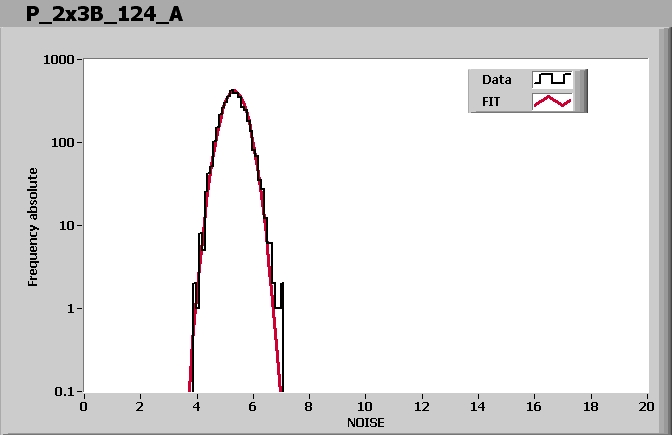

ROC2 NOISE			MEAN = 5.327870 SIGMA = 0.396402
ROC3 NOISE			MEAN = 4.732890 SIGMA = 0.372258
ROC4 NOISE			MEAN = 5.035828 SIGMA = 0.412052

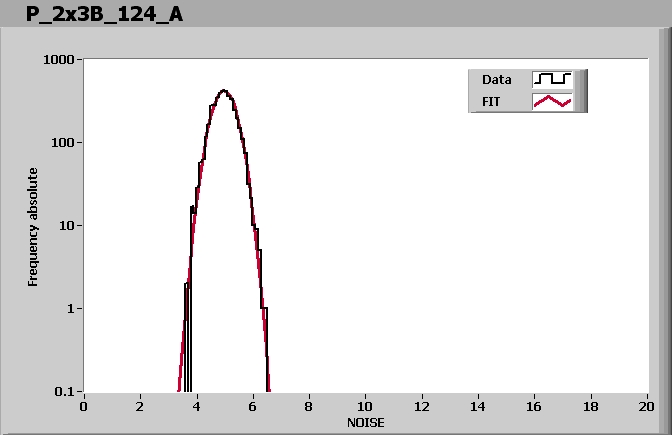

ROC5 NOISE			MEAN = 4.967362 SIGMA = 0.392548

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:19 AM

Ibias_DAC, Ibias_DAC Data	140	120	134	140	142	130
Vana, VanaData	140	125	129	132	138	139
CalDelData and plots	85	85	79	94	100	91
VthrCompData and plots	88	84	82	74	71	73
TestDdata ,TestD Plots	2	0	0	1	2	60
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
