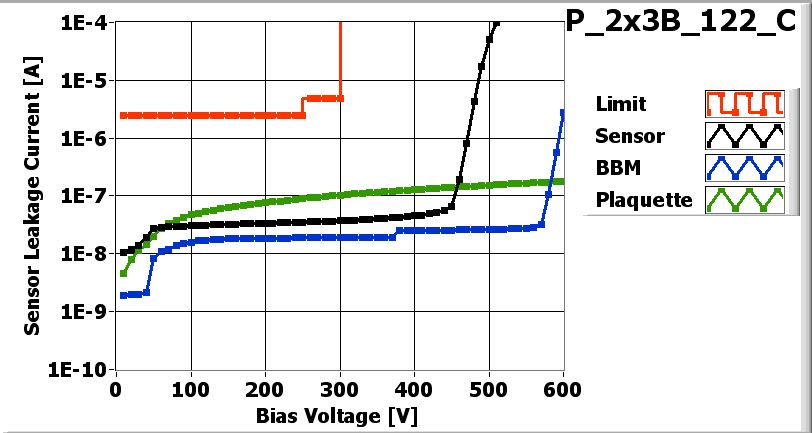

![[IMAGE] of](P_2x3B_122_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

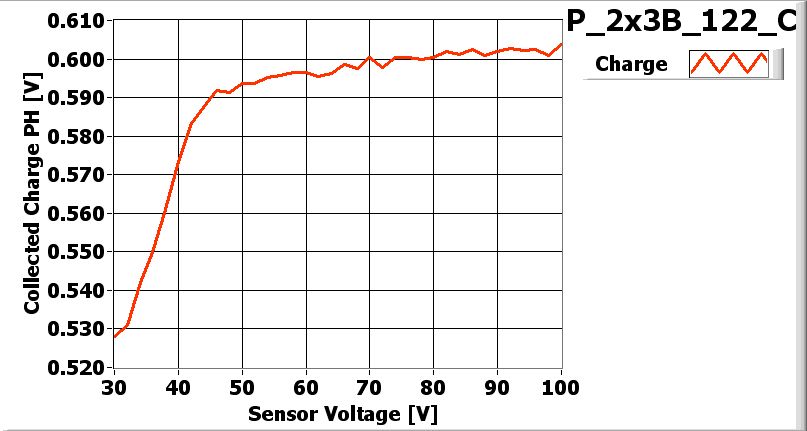

![[IMAGE] of](P_2x3B_122_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_122-2x3B |
| VHDI | 2x3_627 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 32C |
| ROC1 | KMNG2DT | 32D |
| ROC2 | KMNG2DT | 42C |
| ROC3 | KMNG2DT | 52C |
| ROC4 | KMNG2DT | 12C |
| ROC5 | KMNG2DT | 22B |
Inspected by Lockwood Gale on date 5/29/2007
| LR_dev | 0.056 |
| LL_dev | 0.066 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/29/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/29/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/29/2007 by Perera Rajiv
P_2x3B_122_Con 5/30/2007 11:35 AM
P_2x3B_122_Con 5/30/2007 11:35 AM
PLAQUETTE TESTED on 2007-05-30 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 162 | 162 | 174 | 150 | 160 | 148 | |
| Vana | 145 | 139 | 145 | 146 | 135 | 137 | |
| Cal_Del | 85 | 77 | 71 | 76 | 78 | 81 | |
| Vthrs_Comp | 89 | 75 | 90 | 90 | 81 | 78 | |
| Unbumped | 1 | 1 | 2 | 1 | 1 | 6 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 2 | 1 | 1 | 6 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

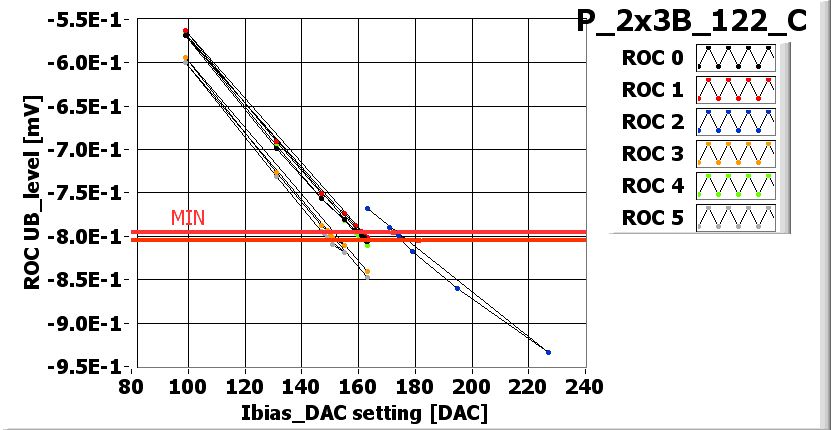

![[IMAGE] of](P_2x3B_122_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

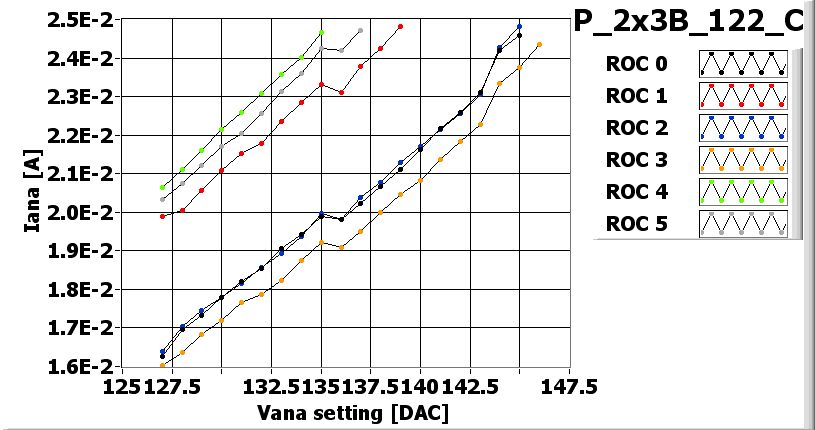

![[IMAGE] of](P_2x3B_122_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_122_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_122_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_122_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_122_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 110 | 100 | 105 | 110 | 100 |
| Vsf | 145 | 140 | 150 | 145 | 140 | 140 |
| VoffsetOp | 110 | 95 | 115 | 105 | 80 | 85 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 | 100 |

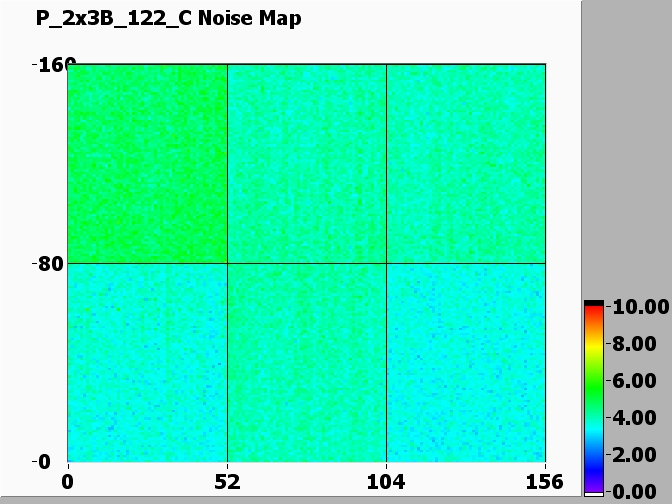

Noise MAP at VMAX
![[IMAGE] of](P_2x3B_122_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_122_C-580-efficiency.jpg)

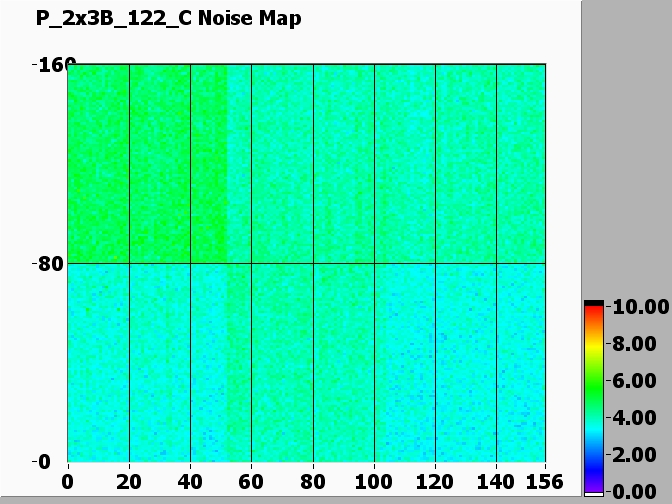

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_122_C-200-noise.jpg)

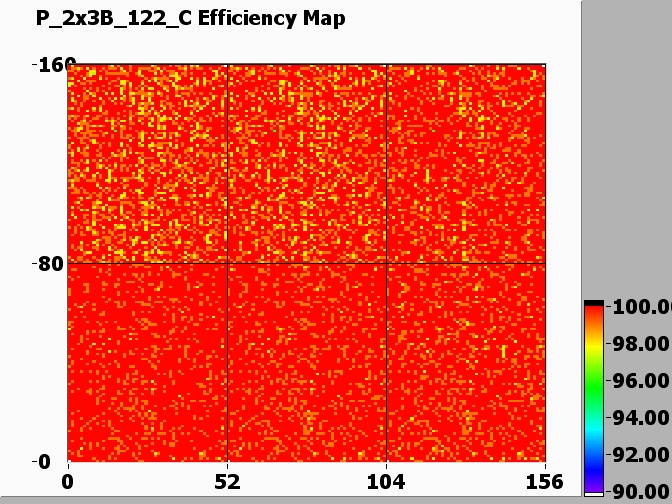

Efficiency MAP
![[IMAGE] of](P_2x3B_122_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
