P_2x3B_122

P_2x3B_122_C

Production testing

Date:5/30/2007

Operator: Emily Grace

start testing time:11:35 AM

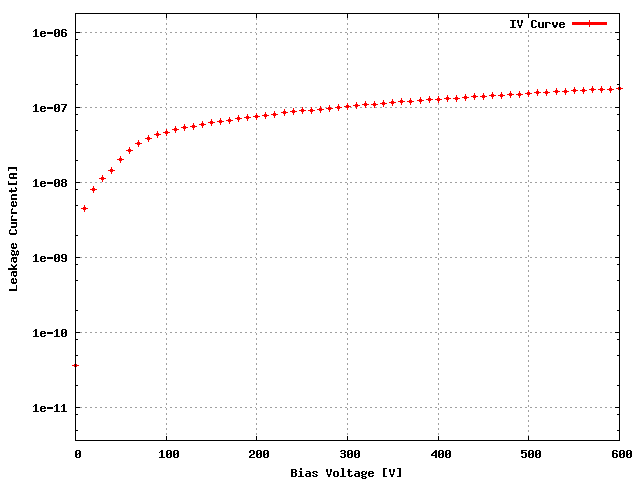

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KMNG2DT 32C

ROC1 KMNG2DT 32D

ROC2 KMNG2DT 42C

ROC3 KMNG2DT 52C

ROC4 KMNG2DT 12C

ROC5 KMNG2DT 22B

ROC	ROC wafer	Label
ROC0	KMNG2DT	32C
ROC1	KMNG2DT	32D
ROC2	KMNG2DT	42C
ROC3	KMNG2DT	52C
ROC4	KMNG2DT	12C
ROC5	KMNG2DT	22B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 162 162 174 150 160 148

Vana, VanaData 145 139 145 146 135 137

CalDelData and plots 85 77 71 76 78 81

VthrCompData and plots 89 75 90 90 81 78

TestDdata ,TestD Plots 0 1 1 0 1 3

LightData ,Light Plots 1 1 2 1 1 6

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

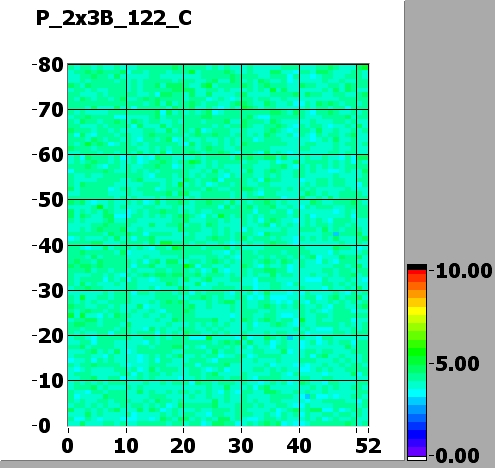

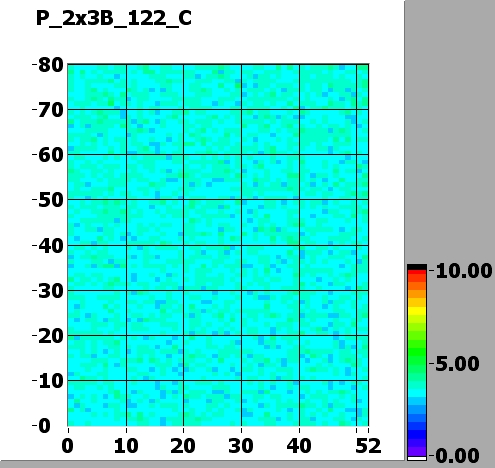

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	110	100	105	110	100
Vsf	145	140	150	145	140	140
VoffsetOp	110	95	115	105	80	85
VIbias_PH	100	100	100	100	95	100

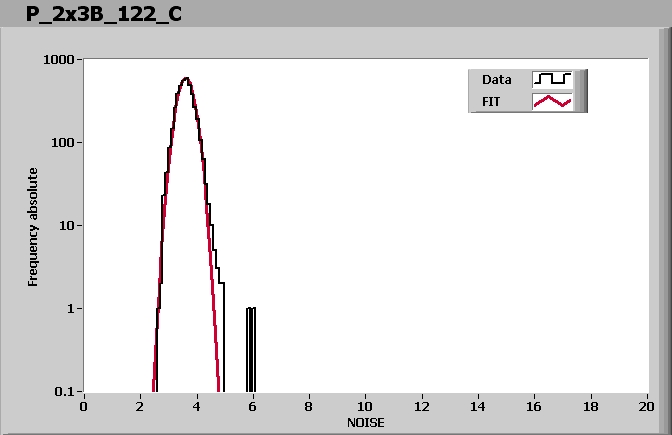

ROC0 NOISE			MEAN = 3.603755 SIGMA = 0.278163
ROC1 NOISE			MEAN = 3.957702 SIGMA = 0.307629
ROC2 NOISE			MEAN = 3.499860 SIGMA = 0.262888

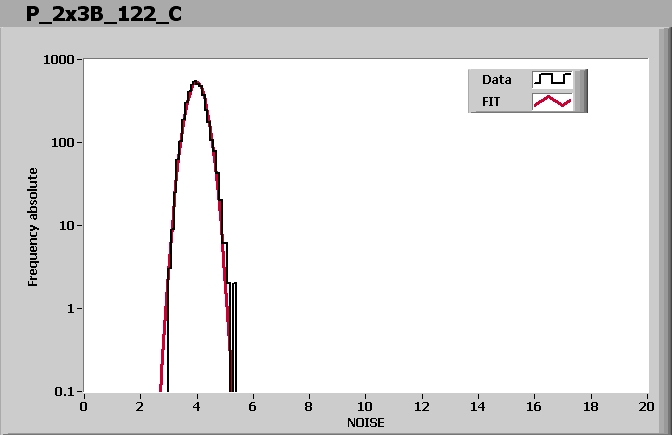

ROC3 NOISE			MEAN = 3.982562 SIGMA = 0.307062
ROC4 NOISE			MEAN = 4.040282 SIGMA = 0.316467
ROC5 NOISE			MEAN = 4.710509 SIGMA = 0.357828

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:00 PM

Ibias_DAC, Ibias_DAC Data	162	162	174	150	160	148
Vana, VanaData	145	139	145	146	135	137
CalDelData and plots	85	77	71	76	78	81
VthrCompData and plots	89	75	90	90	81	78
TestDdata ,TestD Plots	0	1	1	0	1	3
LightData ,Light Plots	1	1	2	1	1	6
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
