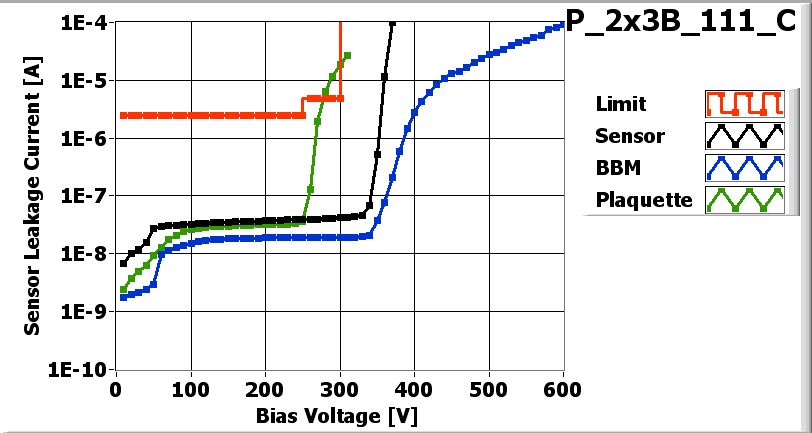

| IV_XML-File |
| Maximum Voltage 310 V |
![[IMAGE] of](P_2x3B_111_C_LASER.jpg)

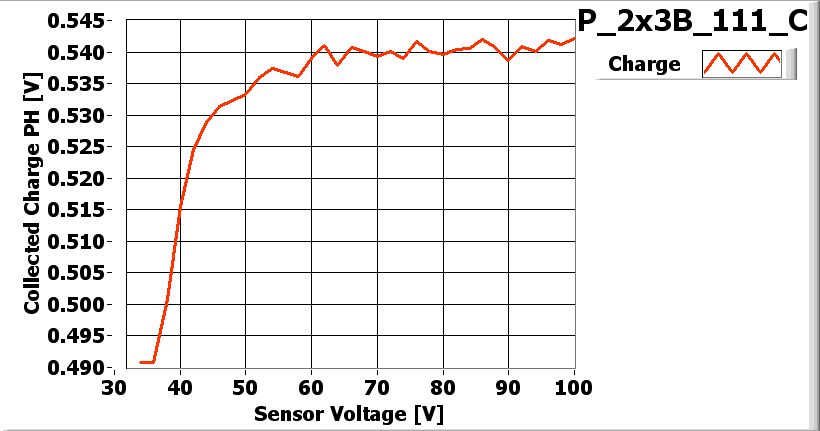

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/17/2007
| Part | ID |
|---|---|
| BBM | BBM_111-2x3B |
| VHDI | 2x3_543 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 76A |
| ROC1 | DWLQFTT | 75A |
| ROC2 | DWLQFTT | 74B |
| ROC3 | DWLQFTT | 76D |
| ROC4 | DWLQFTT | 73B |
| ROC5 | DWLQFTT | 74A |
Inspected by Lockwood Gale on date 4/18/2007
| LR_dev | 0.034 |
| LL_dev | 0.039 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problem. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/19/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/19/2007 by Ozhan Koybasi
P_2x3B_111_Con 4/20/2007 1:15 PM
P_2x3B_111_Con 4/20/2007 1:15 PM
PLAQUETTE TESTED on 2007-04-20 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 142 | 142 | 144 | 134 | 134 | |
| Vana | 139 | 151 | 144 | 144 | 127 | 133 | |
| Cal_Del | 87 | 97 | 91 | 93 | 101 | 97 | |
| Vthrs_Comp | 84 | 91 | 88 | 87 | 84 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 2 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_111_C_Ibias-dac.jpg) |

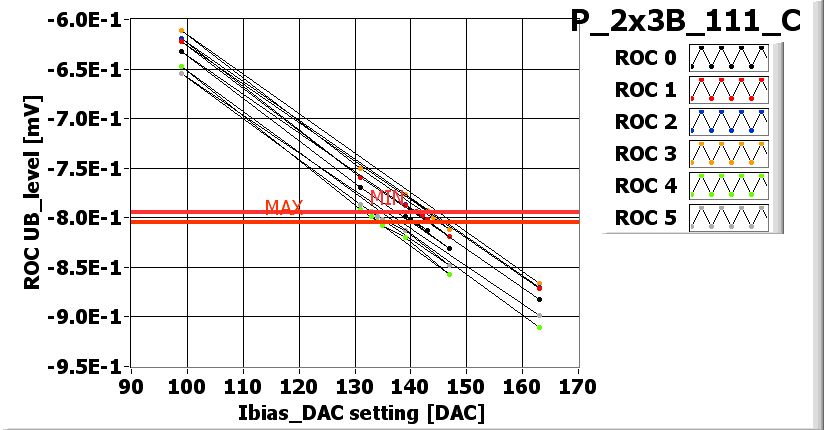

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_111_C_Vana.jpg) |

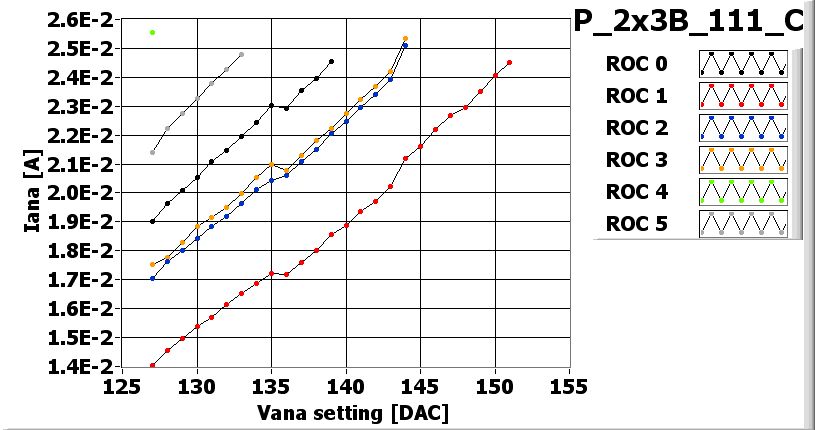

VANA_XML-File |
![[IMAGE] of](P_2x3B_111_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_111_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_111_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_111_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 100 | 100 | 95 | 140 | 100 |
| Vsf | 140 | 150 | 140 | 145 | 140 | 145 |
| VoffsetOp | 100 | 110 | 110 | 125 | 90 | 110 |
| VIbias_PH | 100 | 100 | 100 | 95 | 105 | 100 |

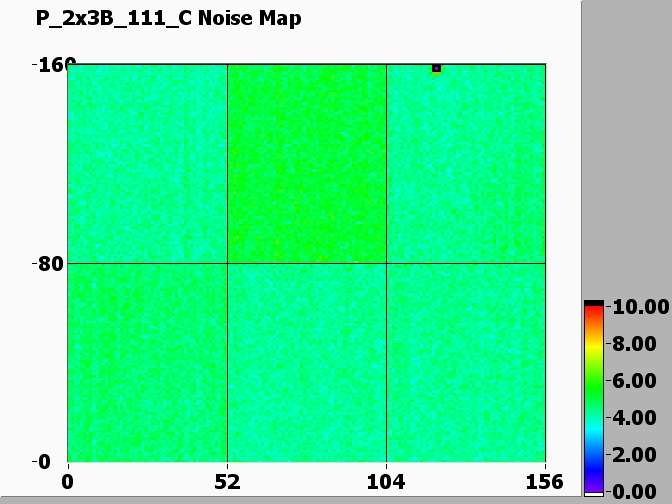

Noise MAP
![[IMAGE] of](P_2x3B_111_C-290-noise.jpg)

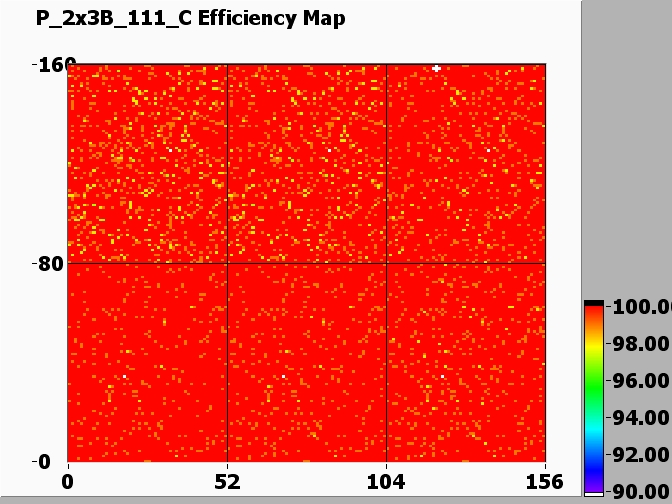

Efficiency MAP
![[IMAGE] of](P_2x3B_111_C-290-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
