P_2x3B_111

P_2x3B_111_C

Production testing

Date:4/20/2007

Operator: Gino Bolla

start testing time:1:15 PM

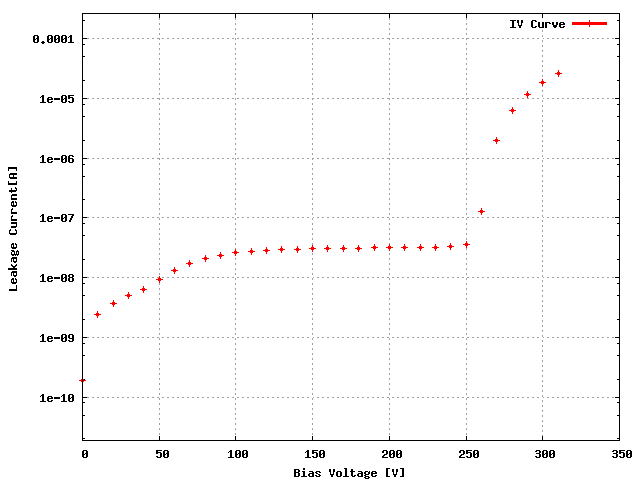

Sensor: S_2x3B_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DWLQFTT 76A

ROC1 DWLQFTT 75A

ROC2 DWLQFTT 74B

ROC3 DWLQFTT 76D

ROC4 DWLQFTT 73B

ROC5 DWLQFTT 74A

ROC	ROC wafer	Label
ROC0	DWLQFTT	76A
ROC1	DWLQFTT	75A
ROC2	DWLQFTT	74B
ROC3	DWLQFTT	76D
ROC4	DWLQFTT	73B
ROC5	DWLQFTT	74A

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 140 142 142 144 134 134

Vana, VanaData 139 151 144 144 127 133

CalDelData and plots 87 97 91 93 101 97

VthrCompData and plots 84 91 88 87 84 87

TestDdata ,TestD Plots 0 0 0 1 2 0

LightData ,Light Plots 0 0 0 0 2 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

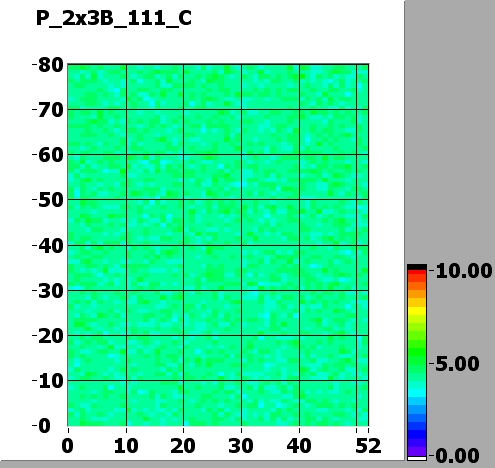

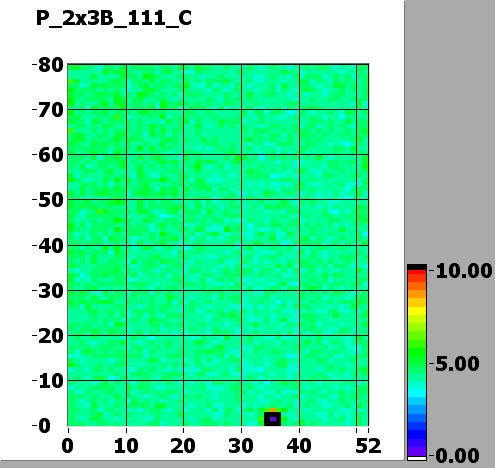

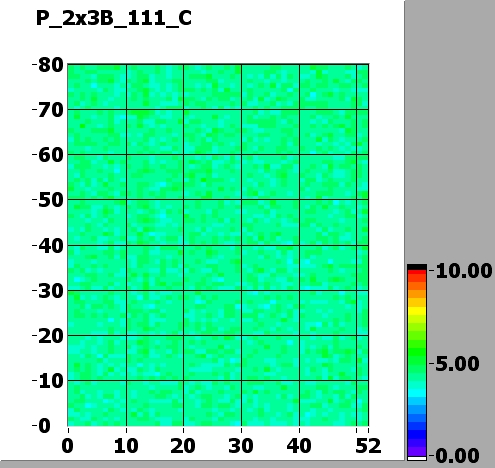

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	100	100	95	140	100
Vsf	140	150	140	145	140	145
VoffsetOp	100	110	110	125	90	110
VIbias_PH	100	100	100	95	105	100

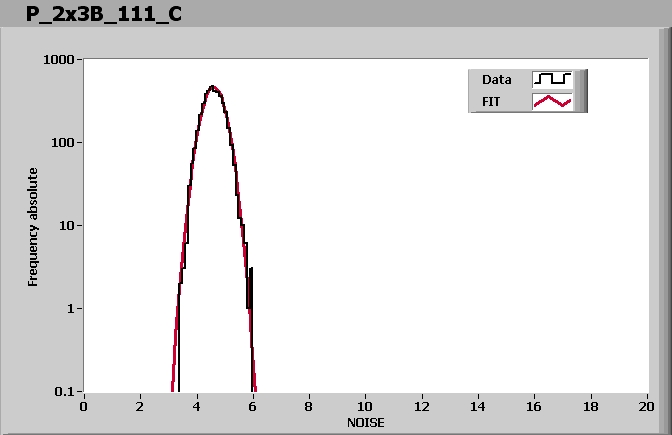

ROC0 NOISE			MEAN = 4.593312 SIGMA = 0.361311
ROC1 NOISE			MEAN = 4.249997 SIGMA = 0.320650
ROC2 NOISE			MEAN = 4.295646 SIGMA = 0.335148

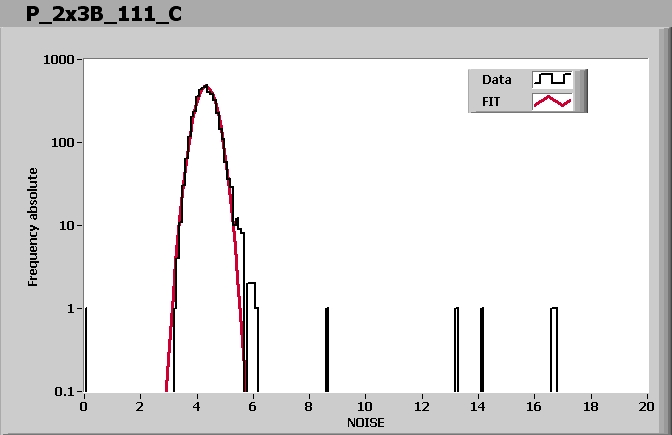

ROC3 NOISE			MEAN = 4.323871 SIGMA = 0.344095
ROC4 NOISE			MEAN = 5.066699 SIGMA = 0.393063
ROC5 NOISE			MEAN = 4.238538 SIGMA = 0.314106

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:39 PM

Ibias_DAC, Ibias_DAC Data	140	142	142	144	134	134
Vana, VanaData	139	151	144	144	127	133
CalDelData and plots	87	97	91	93	101	97
VthrCompData and plots	84	91	88	87	84	87
TestDdata ,TestD Plots	0	0	0	1	2	0
LightData ,Light Plots	0	0	0	0	2	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
