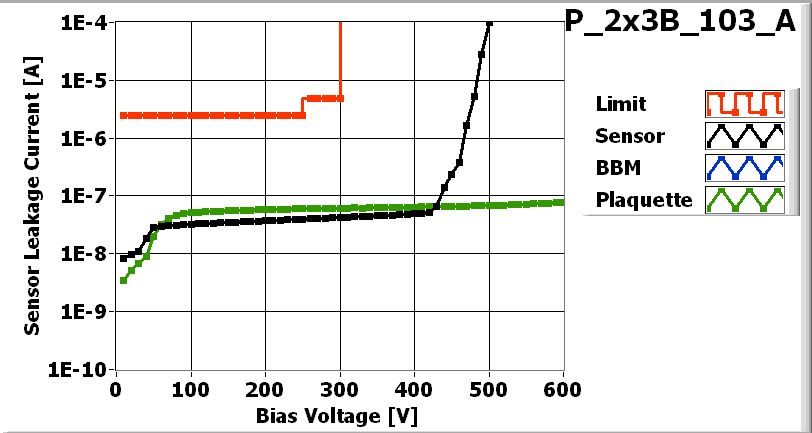

![[IMAGE] of](P_2x3B_103_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_103_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_103-2x3B |
| VHDI | 2x3_755 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 16B |
| ROC1 | W55_D3LQE4T | 16A |
| ROC2 | W55_D3LQE4T | 15C |
| ROC3 | W52_DOLQC8T | 25C |
| ROC4 | W52_DOLQC8T | 26A |
| ROC5 | W52_DOLQC8T | 26C |
Inspected by Lockwood Gale on date 12/5/2007
| LR_dev | 0.051 |
| LL_dev | 0.047 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 1, Ch 34, 2FL, 2 tries, No other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/5/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/7/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/7/2007 by Ozhan Koybasi
P_2x3B_103_Aon 12/10/2007 11:32 AM
P_2x3B_103_Aon 12/10/2007 11:32 AM
PLAQUETTE TESTED on 2007-12-10 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 162 | 164 | 162 | 140 | 142 | |
| Vana | 150 | 147 | 159 | 149 | 144 | 143 | |
| Cal_Del | 81 | 86 | 94 | 89 | 75 | 90 | |
| Vthrs_Comp | 84 | 90 | 93 | 88 | 86 | 82 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_103_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

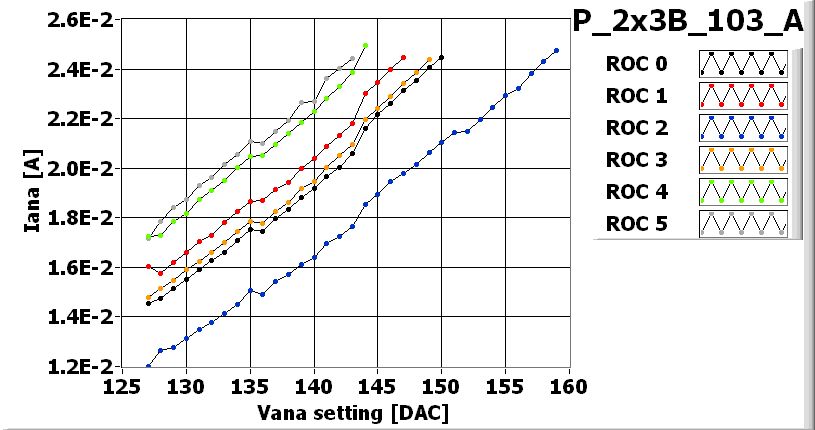

![[IMAGE] of](P_2x3B_103_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_103_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_103_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_103_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_103_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 115 | 95 | 185 | 185 |
| Vsf | 150 | 145 | 160 | 145 | 145 | 145 |
| VoffsetOp | 110 | 105 | 90 | 85 | 60 | 60 |
| VIbias_PH | 100 | 215 | 110 | 45 | 50 | 50 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_103_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_103_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_103_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_103_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
