![[IMAGE] of](P_2x3B_102_A_IV.jpg)

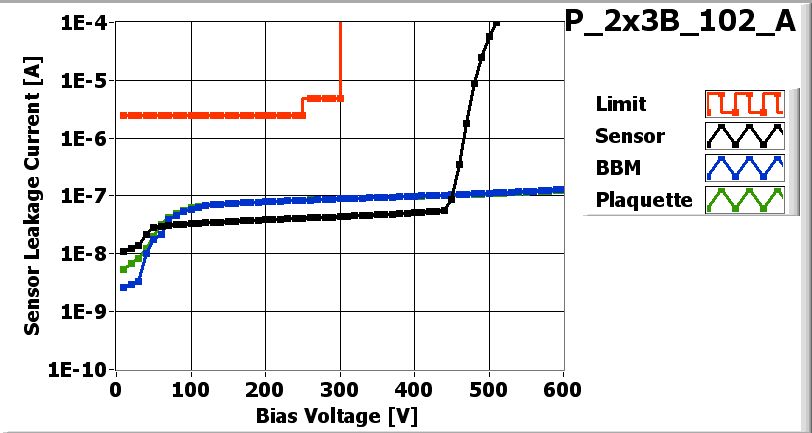

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_102_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/13/2007
| Part | ID |
|---|---|
| BBM | BBM_102-2x3B |
| VHDI | 2x3_462 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 30C |
| ROC1 | W29_X64K5ST | 30B |
| ROC2 | W29_X64K5ST | 49C |
| ROC3 | W29_X64K5ST | 22D |
| ROC4 | W29_X64K5ST | 23A |
| ROC5 | W29_X64K5ST | 23B |
Inspected by Arndt Kirk on date 2/19/2007
| LR_dev | 0.145 |
| LL_dev | 0.142 |
| FINAL COMMENT by Arndt Kirk | ROC0 chn 35 bonded on 8th attempt, leaving many bond feet on ROC pad - otherwise no wirebond problem. |
PLAQUETTE made READY for testing on 2/19/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/20/2007 by Ozhan Koybasi
P_2x3B_102_Aon 2/21/2007 3:35 PM
P_2x3B_102_Aon 2/21/2007 3:35 PM
PLAQUETTE TESTED on 2007-02-21 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 142 | 142 | 138 | 128 | 128 | |
| Vana | 138 | 125 | 135 | 131 | 129 | 116 | |
| Cal_Del | 69 | 86 | 84 | 73 | 81 | 79 | |
| Vthrs_Comp | 83 | 82 | 71 | 70 | 77 | 81 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 2 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 2 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_102_A_Ibias-dac.jpg) |

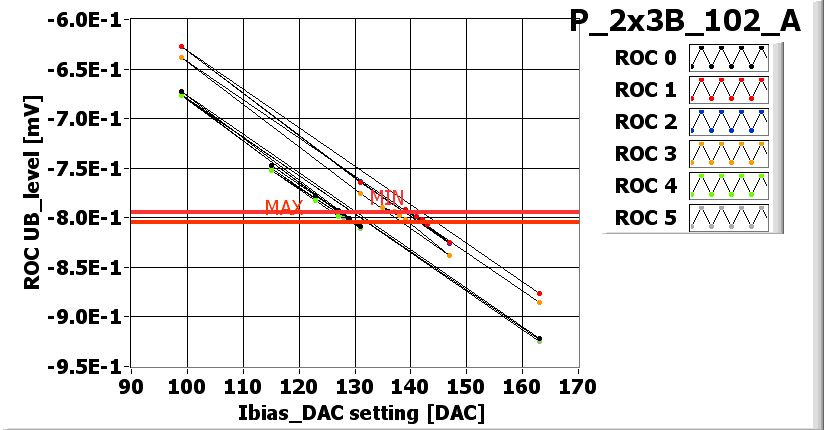

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_102_A_Vana.jpg) |

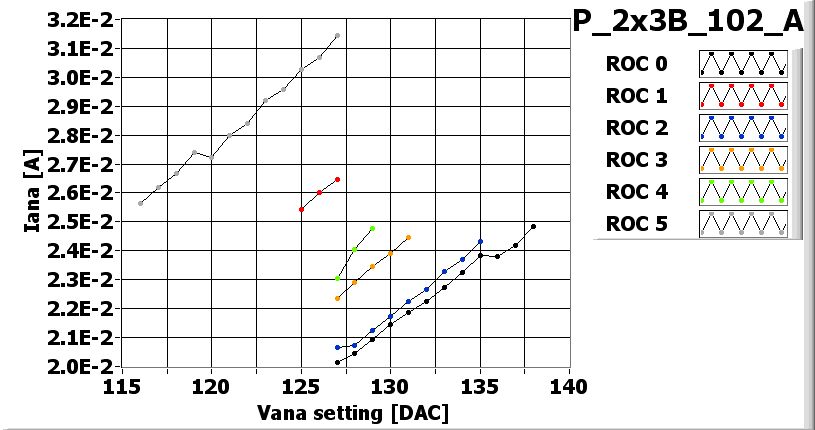

VANA_XML-File |
![[IMAGE] of](P_2x3B_102_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_102_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_102_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_102_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 135 | 90 | 120 | 120 | 180 |
| Vsf | 140 | 140 | 140 | 140 | 140 | 140 |
| VoffsetOp | 60 | 90 | 90 | 75 | 80 | 75 |
| VIbias_PH | 105 | 100 | 105 | 105 | 100 | 95 |

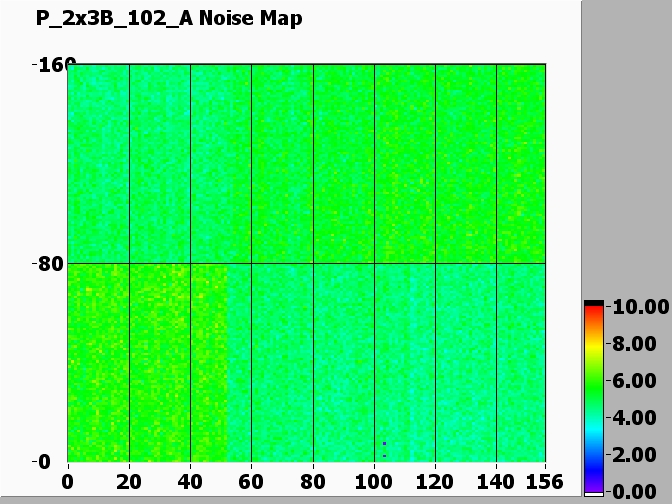

Noise MAP
![[IMAGE] of](P_2x3B_102_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_102_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
