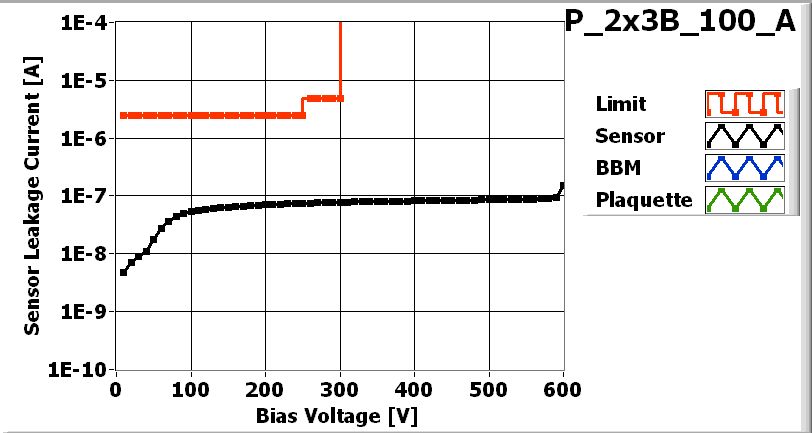

![[IMAGE] of](P_2x3B_100_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

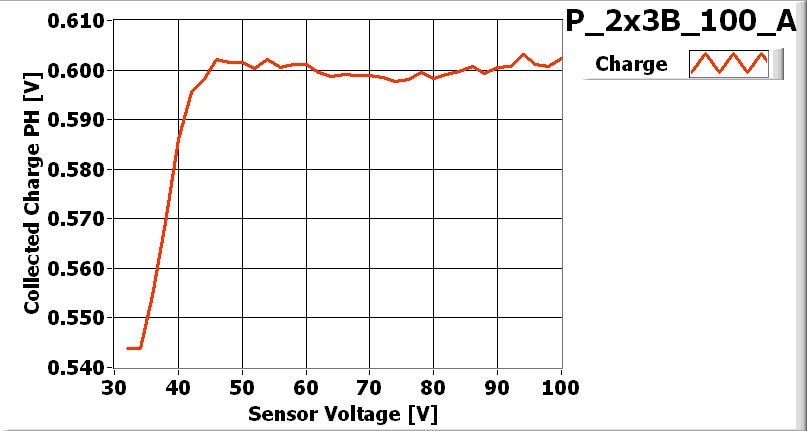

![[IMAGE] of](P_2x3B_100_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_100-2x3B |
| VHDI | 2x3_271 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X54JP2T | 44B |
| ROC1 | X54JP2T | 44A |
| ROC2 | X54JP2T | 43C |
| ROC3 | X54JP2T | 38D |
| ROC4 | X54JP2T | 39A |
| ROC5 | X54JP2T | 39B |
Inspected by Arndt Kirk on date 2006-07-18
| LR_dev | 0.061 |
| LL_dev | 0.059 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-18 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-19 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 175 | 159 | 189 | 166 | 167 | 156 | |
| Vana | 139 | 127 | 151 | 131 | 123 | 124 | |
| Cal_Del | 70 | 73 | 68 | 102 | 82 | 83 | |
| Vthrs_Comp | 84 | 80 | 93 | 83 | 82 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

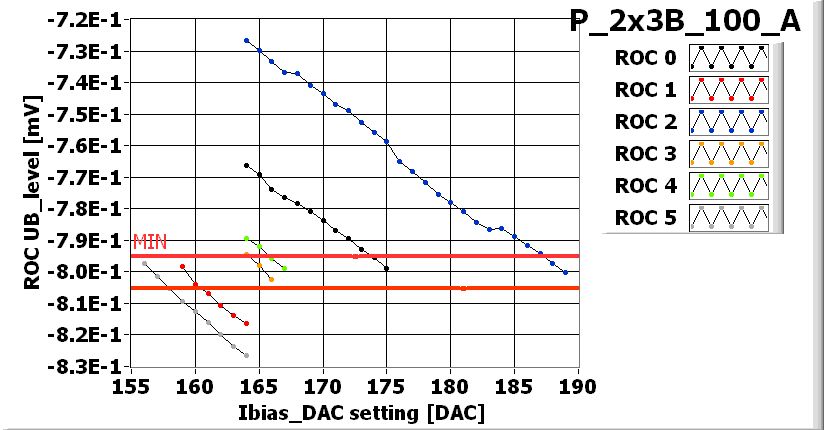

![[IMAGE] of](P_2x3B_100_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

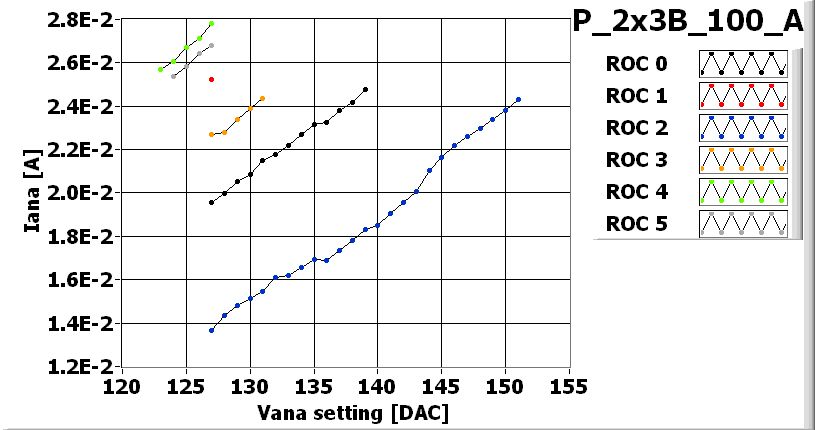

![[IMAGE] of](P_2x3B_100_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_100_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_100_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_100_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_100_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-19
