![[IMAGE] of](P_2x3B_091_A_IV.jpg)

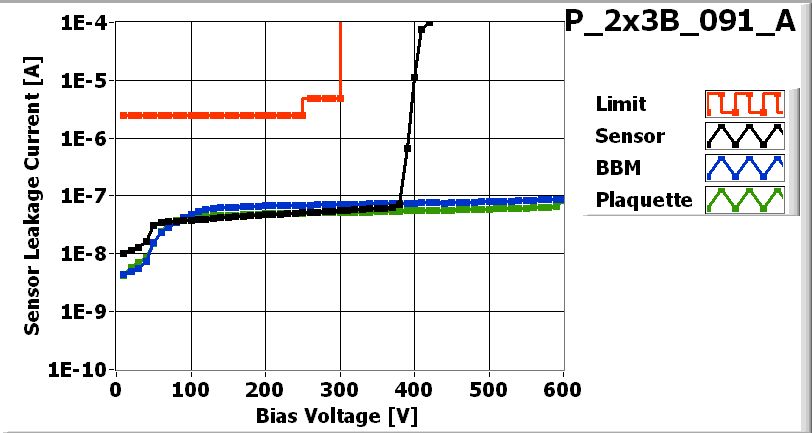

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_091_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 10/20/2007
| Part | ID |
|---|---|
| BBM | BBM_091-2x3B |
| VHDI | 2x3_718 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W54_D2LQG4T | 26A |
| ROC1 | W19_XN4K38T | 06C |
| ROC2 | W19_XN4K38T | 68C |
| ROC3 | W19_XN4K38T | 23D |
| ROC4 | W19_XN4K38T | 24B |
| ROC5 | W19_XN4K38T | 25B |
Inspected by Lockwood Gale on date 10/23/2007
| LR_dev | 0.076 |
| LL_dev | 0.064 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Reworked BBM. Force used to join BBM to VHDI = 1.5 kg per ROC. No assembly problems. ROC 4, CH 11, wo, ROC 4 CH 18 1hb, ROC 3 Ch 3,17 wo bonded on second try, all wires bonded. |
PLAQUETTE made READY for ENCAPSULATION on 10/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 10/23/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 10/23/2007 by Ozhan Koybasi
P_2x3B_091_Aon 10/23/2007 5:20 PM
P_2x3B_091_Aon 10/23/2007 5:20 PM
PLAQUETTE TESTED on 2007-10-23 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 148 | 154 | 150 | 156 | 162 | |
| Vana | 139 | 130 | 132 | 127 | 117 | 134 | |
| Cal_Del | 76 | 75 | 87 | 101 | 86 | 80 | |
| Vthrs_Comp | 90 | 78 | 69 | 67 | 69 | 86 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 2 | 2 | 0 | 0 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 2 | 0 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_091_A_Ibias-dac.jpg) |

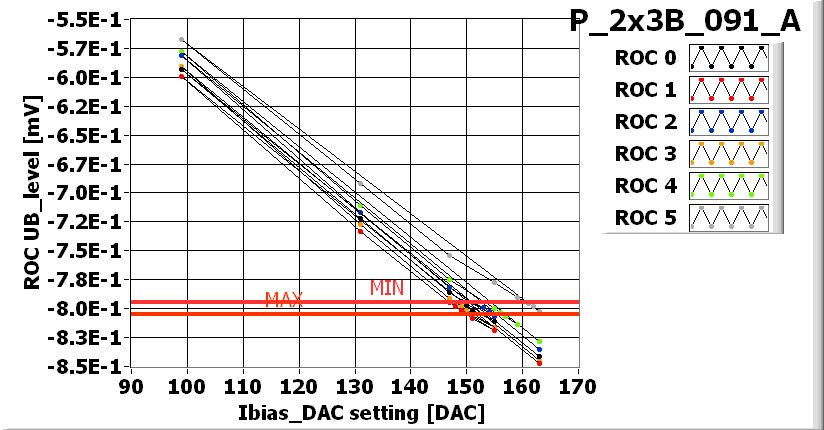

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_091_A_Vana.jpg) |

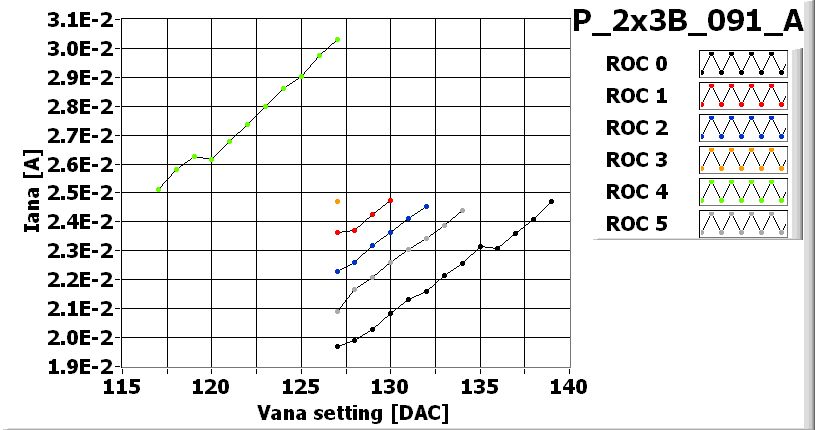

VANA_XML-File |
![[IMAGE] of](P_2x3B_091_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_091_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_091_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_091_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 145 | 95 | 120 | 150 | 110 |
| Vsf | 145 | 135 | 140 | 140 | 145 | 140 |
| VoffsetOp | 110 | 90 | 65 | 65 | 75 | 105 |
| VIbias_PH | 100 | 105 | 100 | 105 | 100 | 105 |

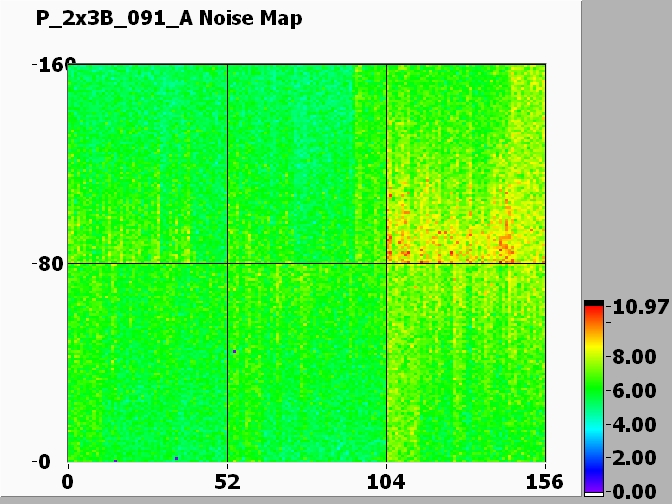

Noise MAP at VMAX
![[IMAGE] of](P_2x3B_091_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_091_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_091_A-200-noise.jpg)

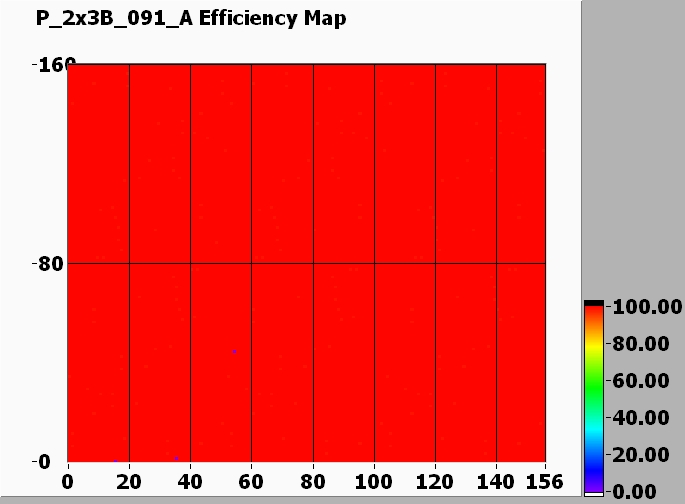

Efficiency MAP
![[IMAGE] of](P_2x3B_091_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
