P_2x3B_091

P_2x3B_091_A

Production testing

Date:10/23/2007

Operator: Ozhan Koybasi

start testing time:5:20 PM

Sensor: S_2x3B_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W54_D2LQG4T 26A

ROC1 W19_XN4K38T 06C

ROC2 W19_XN4K38T 68C

ROC3 W19_XN4K38T 23D

ROC4 W19_XN4K38T 24B

ROC5 W19_XN4K38T 25B

This plaquette has been reworked. Old results

ROC	ROC wafer	Label
ROC0	W54_D2LQG4T	26A
ROC1	W19_XN4K38T	06C
ROC2	W19_XN4K38T	68C
ROC3	W19_XN4K38T	23D
ROC4	W19_XN4K38T	24B
ROC5	W19_XN4K38T	25B

Inspected by Lockwood Gale on date 10/23/2007

LR_dev 0.076

LL_dev 0.064

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Reworked BBM. Force used to join BBM to VHDI = 1.5 kg per ROC. No assembly problems. ROC 4, CH 11, wo, ROC 4 CH 18 1hb, ROC 3 Ch 3,17 wo bonded on second try, all wires bonded.

PLAQUETTE made READY for ENCAPSULATION on 10/23/2007 by Lockwood Gale

PLAQUETTE encapsulated on 10/23/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 10/23/2007 by Ozhan Koybasi

P_2x3B_091_Aon 10/23/2007 5:20 PM

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	150	148	154	150	156	162
Vana, VanaData	139	130	132	127	117	134
CalDelData and plots	76	75	87	101	86	80
VthrCompData and plots	90	78	69	67	69	86
TestDdata ,TestD Plots	2	3	278	209	6	6
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	145	95	120	150	110
Vsf	145	135	140	140	145	140
VoffsetOp	110	90	65	65	75	105
VIbias_PH	100	105	100	105	100	105

ROC0 NOISE			MEAN = 3.855395 SIGMA = 0.373478
ROC1 NOISE			MEAN = 3.872891 SIGMA = 0.394338

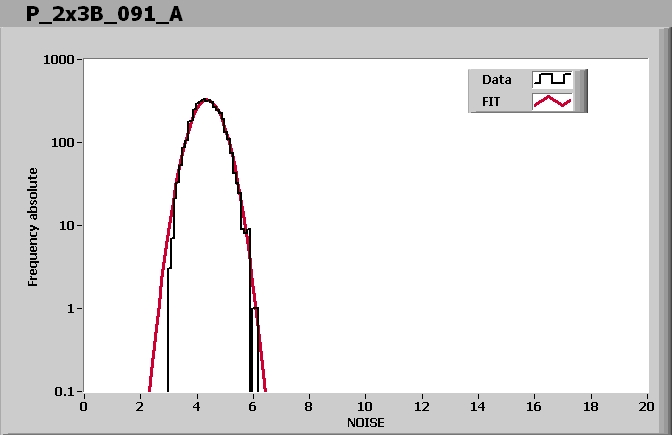

ROC2 NOISE			MEAN = 4.364397 SIGMA = 0.509139
ROC3 NOISE			MEAN = 4.724263 SIGMA = 0.622599
ROC4 NOISE			MEAN = 3.743741 SIGMA = 0.410714
ROC5 NOISE			MEAN = 3.730370 SIGMA = 0.385485

Comment (if any): test D showed too many bad pixels on two ROCs

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 5:51 PM
