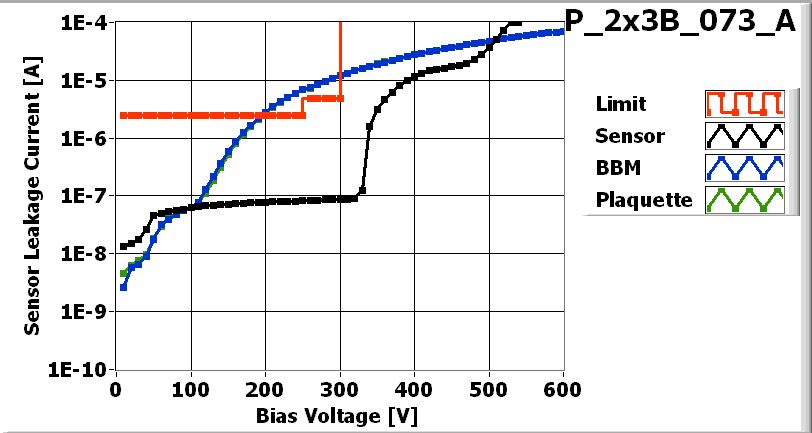

![[IMAGE] of](P_2x3B_073_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 390 V |

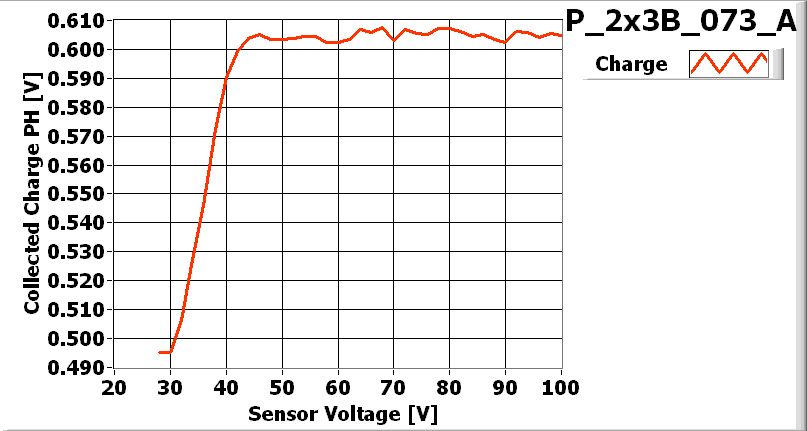

![[IMAGE] of](P_2x3B_073_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_073-2x3B |
| VHDI | 2x3_632 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 53B |
| ROC1 | W45_D3LQFLT | 53A |
| ROC2 | W45_D3LQFLT | 47C |
| ROC3 | W45_D3LQFLT | 33A |
| ROC4 | W45_D3LQFLT | 33C |
| ROC5 | W45_D3LQFLT | 34A |
Inspected by Lockwood Gale on date 5/25/2007
| LR_dev | 0.041 |
| LL_dev | 0.045 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 4, CH 32,33, No wirebonding problems |
PLAQUETTE made READY for ENCAPSULATION on 5/25/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/25/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 5/25/2007 by Arndt Kirk
P_2x3B_073_Aon 5/29/2007 9:17 AM
P_2x3B_073_Aon 5/29/2007 9:17 AM
PLAQUETTE TESTED on 2007-05-29 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 148 | 146 | 150 | 154 | 148 | |
| Vana | 135 | 141 | 145 | 138 | 142 | 135 | |
| Cal_Del | 89 | 95 | 96 | 81 | 93 | 93 | |
| Vthrs_Comp | 72 | 89 | 86 | 81 | 86 | 85 | |
| Unbumped | 0 | 2 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 2 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 3 | 2 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_073_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

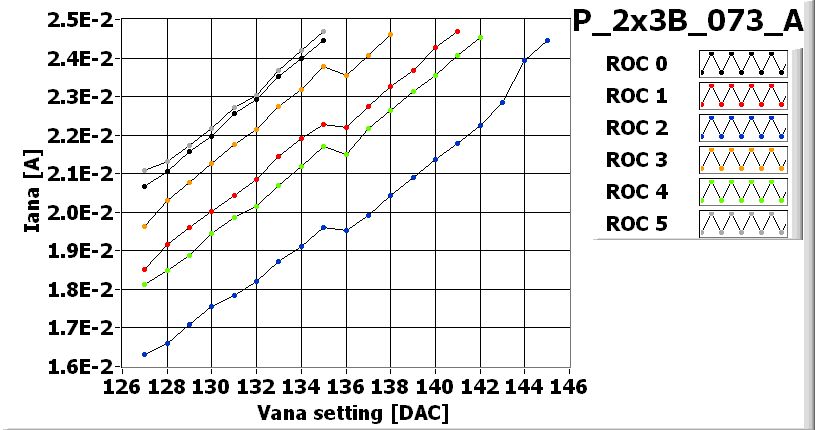

![[IMAGE] of](P_2x3B_073_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_073_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_073_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_073_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_073_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 95 | 95 | 100 | 95 | 95 |
| Vsf | 145 | 140 | 145 | 140 | 140 | 140 |
| VoffsetOp | 90 | 85 | 90 | 100 | 115 | 110 |
| VIbias_PH | 100 | 100 | 105 | 100 | 105 | 95 |

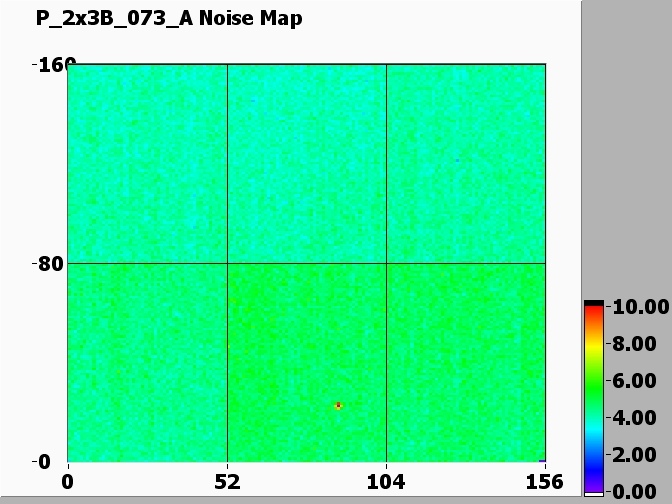

Noise MAP at VMAX
![[IMAGE] of](P_2x3B_073_A-370-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_073_A-370-efficiency.jpg)

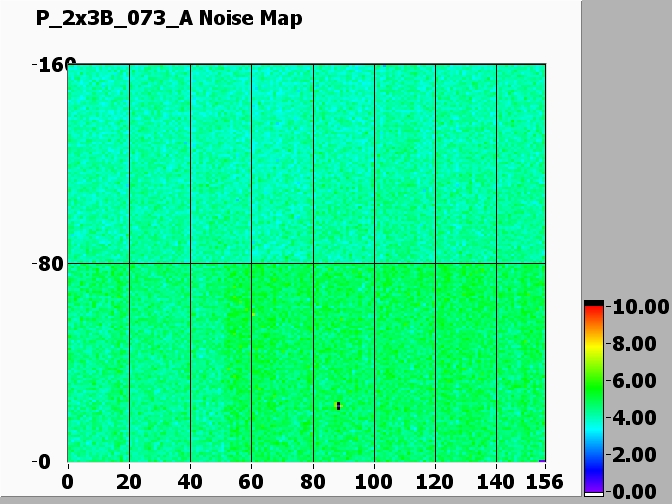

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_073_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_073_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
