P_2x3B_073

P_2x3B_073_A

Production testing

Date:5/29/2007

Operator: Emily Grace

start testing time:9:17 AM

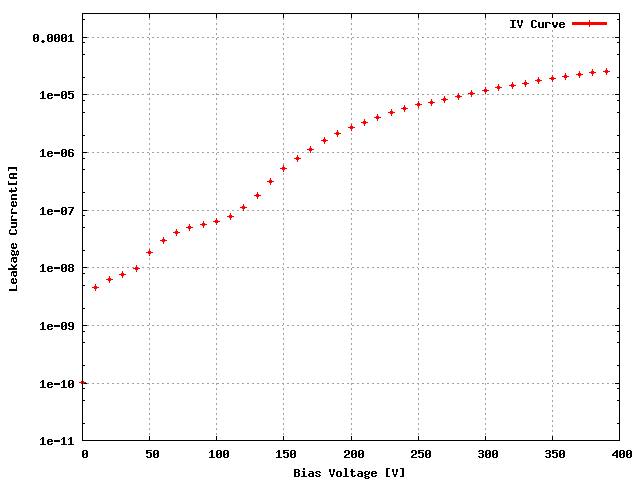

Sensor: S_2x3B_07, Data for leakage current measurement , and plot on overall it is a BAD sensor

ROC ROC wafer Label

ROC0 W45_D3LQFLT 53B

ROC1 W45_D3LQFLT 53A

ROC2 W45_D3LQFLT 47C

ROC3 W45_D3LQFLT 33A

ROC4 W45_D3LQFLT 33C

ROC5 W45_D3LQFLT 34A

ROC	ROC wafer	Label
ROC0	W45_D3LQFLT	53B
ROC1	W45_D3LQFLT	53A
ROC2	W45_D3LQFLT	47C
ROC3	W45_D3LQFLT	33A
ROC4	W45_D3LQFLT	33C
ROC5	W45_D3LQFLT	34A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 140 148 146 150 154 148

Vana, VanaData 135 141 145 138 142 135

CalDelData and plots 89 95 96 81 93 93

VthrCompData and plots 72 89 86 81 86 85

TestDdata ,TestD Plots 0 3 2 0 0 0

LightData ,Light Plots 0 2 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	85	95	95	100	95	95
Vsf	145	140	145	140	140	140
VoffsetOp	90	85	90	100	115	110
VIbias_PH	100	100	105	100	105	95

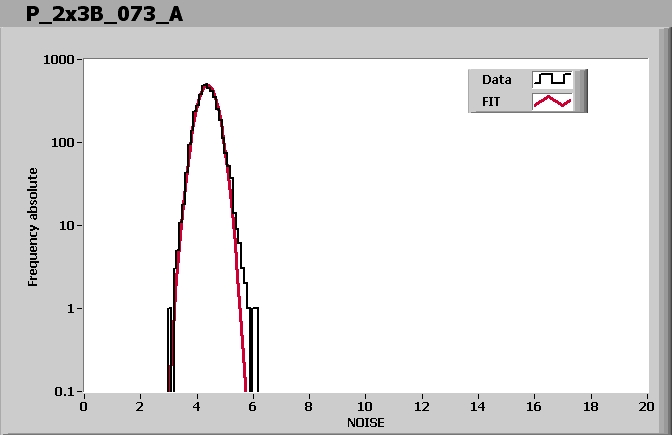

ROC0 NOISE			MEAN = 4.370077 SIGMA = 0.330230

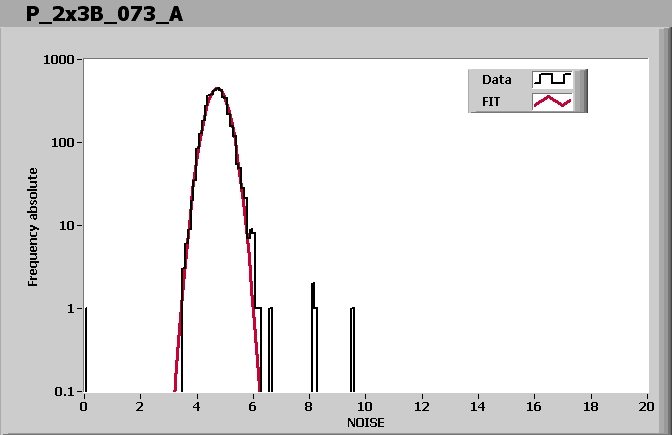

ROC1 NOISE			MEAN = 4.725666 SIGMA = 0.366602
ROC2 NOISE			MEAN = 4.676959 SIGMA = 0.358999

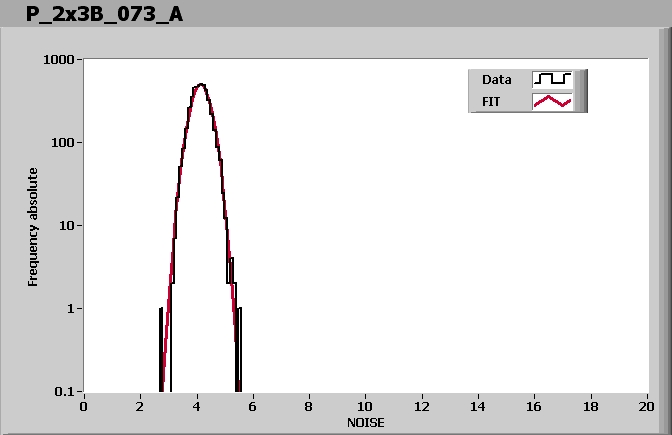

ROC3 NOISE			MEAN = 4.134792 SIGMA = 0.328854
ROC4 NOISE			MEAN = 4.017766 SIGMA = 0.340698
ROC5 NOISE			MEAN = 4.038320 SIGMA = 0.321713

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:43 AM

Ibias_DAC, Ibias_DAC Data	140	148	146	150	154	148
Vana, VanaData	135	141	145	138	142	135
CalDelData and plots	89	95	96	81	93	93
VthrCompData and plots	72	89	86	81	86	85
TestDdata ,TestD Plots	0	3	2	0	0	0
LightData ,Light Plots	0	2	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
