| IV_XML-File |

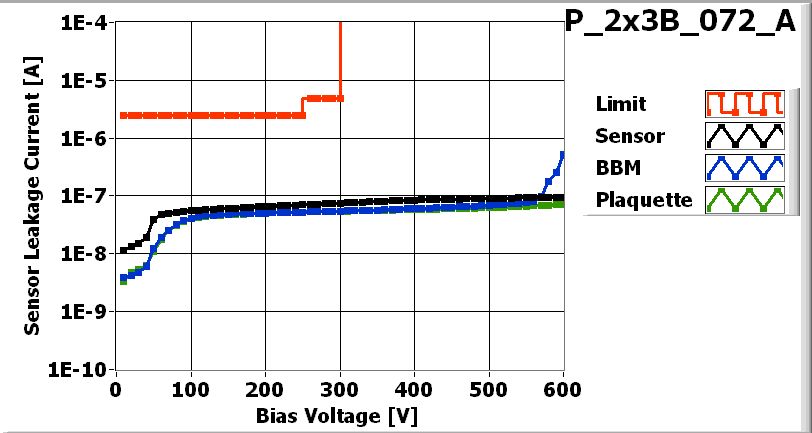

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_072_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/17/2007
| Part | ID |
|---|---|
| BBM | BBM_072-2x3B |
| VHDI | 2x3_344 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 32D |
| ROC1 | W31_X44K5UT | 32C |
| ROC2 | W31_X44K5UT | 32A |
| ROC3 | W31_X44K5UT | 16D |
| ROC4 | W31_X44K5UT | 17B |
| ROC5 | W31_X44K5UT | 17D |
Inspected by Lockwood Gale on date 1/19/2007
| LR_dev | 0.058 |
| LL_dev | 0.063 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/19/2007 by Lockwood Gale
P_2x3B_072_Aon 1/19/2007 3:42 PM
P_2x3B_072_Aon 1/19/2007 3:42 PM
PLAQUETTE TESTED on 2007-01-19 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 136 | 142 | 138 | 122 | 144 | |
| Vana | 138 | 112 | 124 | 131 | 106 | 129 | |
| Cal_Del | 72 | 87 | 75 | 79 | 94 | 80 | |
| Vthrs_Comp | 75 | 74 | 78 | 74 | 69 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_072_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_072_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_072_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_072_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_072_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_072_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
