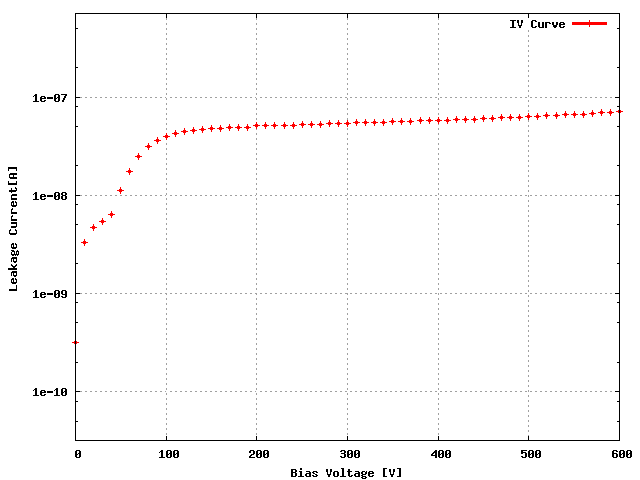

Sensor: S_2x3B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 32D |
| ROC1 | W31_X44K5UT | 32C |
| ROC2 | W31_X44K5UT | 32A |
| ROC3 | W31_X44K5UT | 16D |
| ROC4 | W31_X44K5UT | 17B |
| ROC5 | W31_X44K5UT | 17D |
| Ibias_DAC, Ibias_DAC Data | 128 | 136 | 142 | 138 | 122 | 144 |
| Vana, VanaData | 138 | 112 | 124 | 131 | 106 | 129 |
| CalDelData and plots | 72 | 87 | 75 | 79 | 94 | 80 |
| VthrCompData and plots | 75 | 74 | 78 | 74 | 69 | 77 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 0 | 2 | 1 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:55 PM
