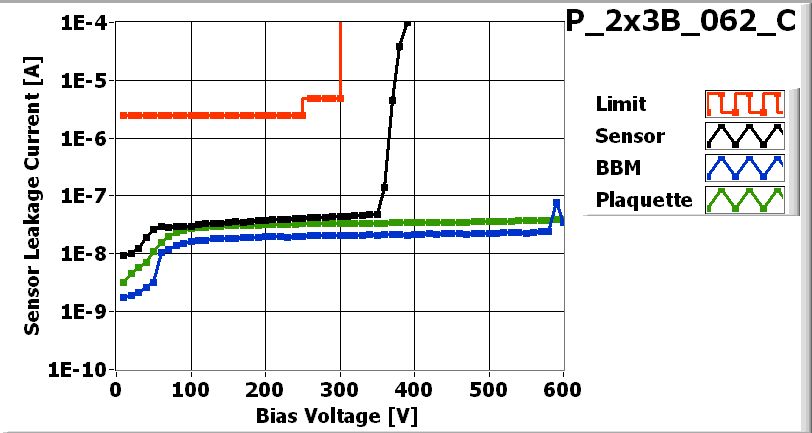

![[IMAGE] of](P_2x3B_062_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_062_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/2/2007
| Part | ID |
|---|---|
| BBM | BBM_062-2x3B |
| VHDI | 2x3_511 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 14B |
| ROC1 | XH4KFBT | 18D |
| ROC2 | XH4KFBT | 37C |
| ROC3 | XH4KFBT | 16B |
| ROC4 | XH4KFBT | 27D |
| ROC5 | XH4KFBT | 24C |
Inspected by Lockwood Gale on date 4/4/2007
| LR_dev | 0.048 |
| LL_dev | 0.047 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/4/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/5/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/5/2007 by Ozhan Koybasi
P_2x3B_062_Con 4/6/2007 11:31 AM
P_2x3B_062_Con 4/6/2007 11:31 AM
PLAQUETTE TESTED on 2007-04-06 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 134 | 132 | 134 | 140 | 142 | 134 | |
| Vana | 122 | 111 | 149 | 132 | 133 | 148 | |
| Cal_Del | 82 | 77 | 93 | 84 | 91 | 89 | |
| Vthrs_Comp | 67 | 62 | 78 | 81 | 77 | 81 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | 5 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 5 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

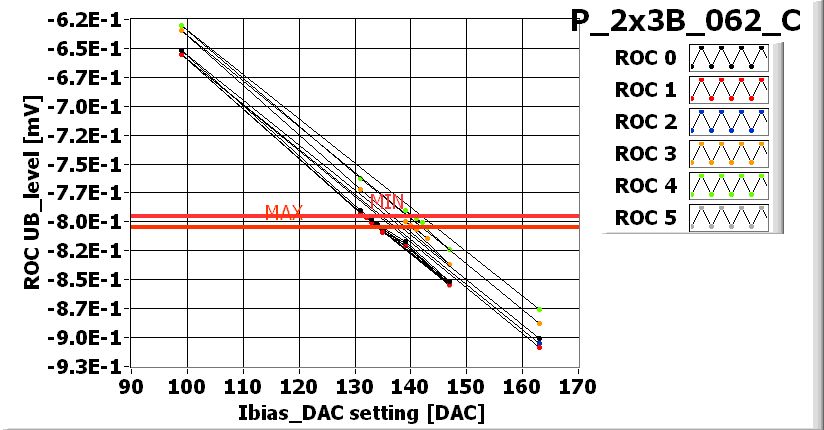

![[IMAGE] of](P_2x3B_062_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

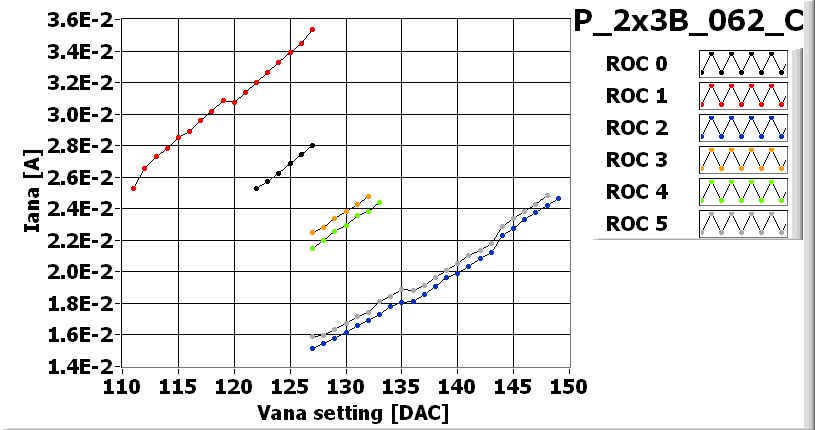

![[IMAGE] of](P_2x3B_062_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_062_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_062_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_062_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_062_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 160 | 100 | 125 | 125 | 95 |
| Vsf | 135 | 140 | 150 | 140 | 140 | 140 |
| VoffsetOp | 70 | 80 | 110 | 65 | 70 | 80 |
| VIbias_PH | 105 | 95 | 105 | 105 | 105 | 100 |

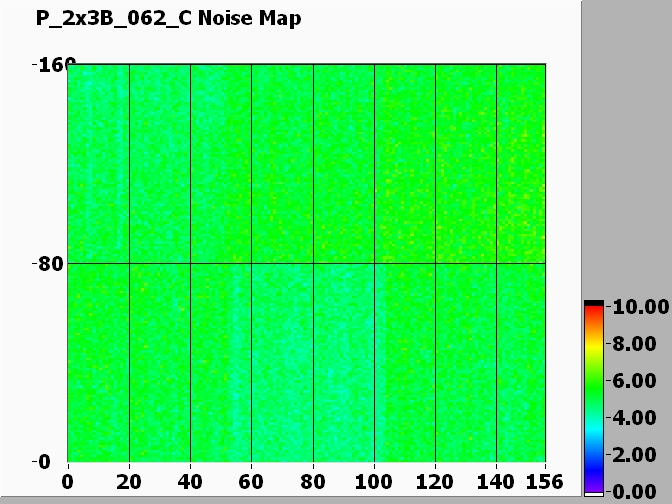

Noise MAP
![[IMAGE] of](P_2x3B_062_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_062_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
