| IV_XML-File |

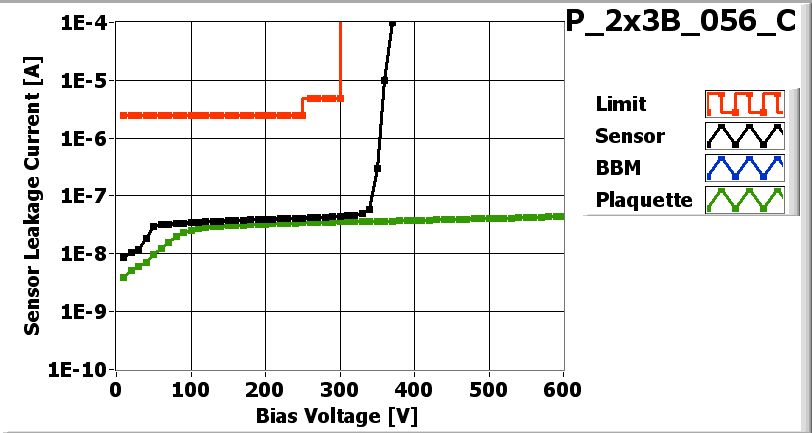

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_056_C_LASER.jpg)
| LASER_XML-File |

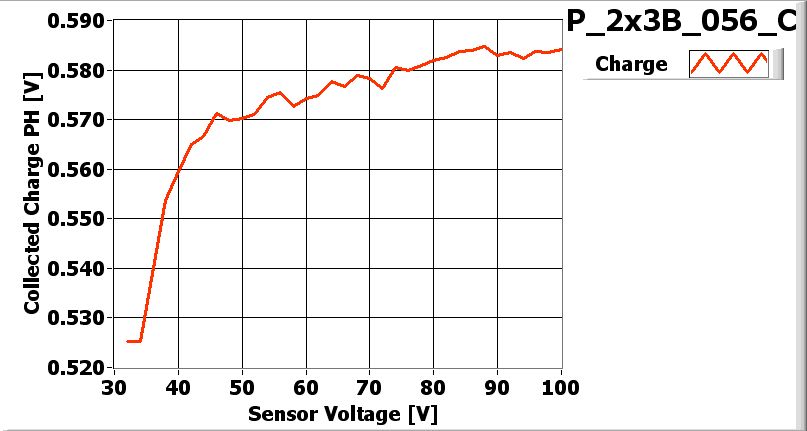

| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/29/2007
| Part | ID |
|---|---|
| BBM | BBM_056-2x3B |
| VHDI | 2x3_642 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 38C |
| ROC1 | KZNG1JT | 48C |
| ROC2 | KZNG1JT | 48D |
| ROC3 | KZNG1JT | 38A |
| ROC4 | KZNG1JT | 49D |
| ROC5 | KZNG1JT | 76B |
Inspected by Lockwood Gale on date 6/12/2007
| LR_dev | 0.012 |
| LL_dev | 0.016 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/12/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/12/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/12/2007 by Kozak Brian
P_2x3B_056_Con 6/13/2007 1:00 PM
P_2x3B_056_Con 6/13/2007 1:00 PM
PLAQUETTE TESTED on 2007-06-13 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 150 | 142 | 150 | 156 | 144 | |
| Vana | 137 | 139 | 138 | 135 | 144 | 133 | |
| Cal_Del | 57 | 59 | 57 | 55 | 71 | 70 | |
| Vthrs_Comp | 54 | 56 | 55 | 48 | 53 | 53 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_056_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_056_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_056_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_056_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_056_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_056_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 95 | 100 | 90 | 95 | 105 |
| Vsf | 140 | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 90 | 100 | 90 | 85 | 95 | 50 |
| VIbias_PH | 100 | 95 | 105 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_056_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_056_C-580-efficiency.jpg)

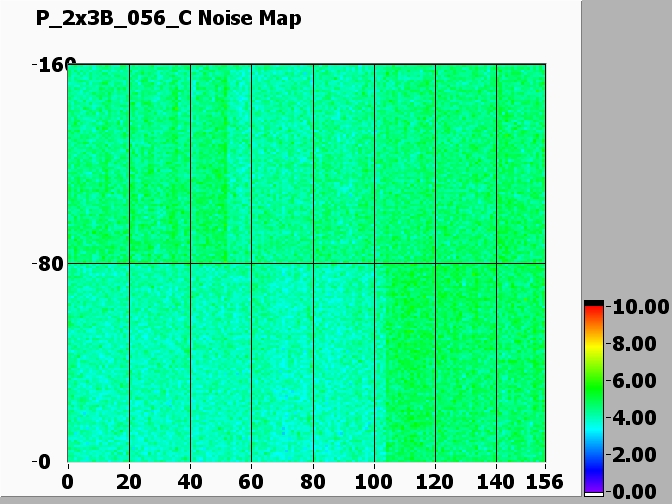

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_056_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_056_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
