P_2x3B_056

P_2x3B_056_C

Production testing

Date:6/13/2007

Operator: Emily Grace

start testing time:1:00 PM

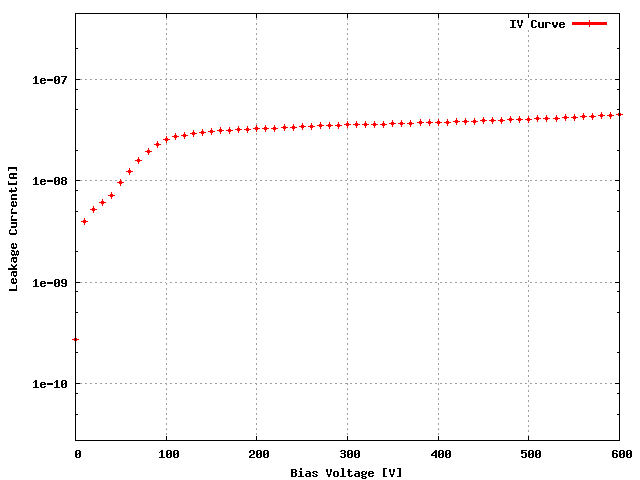

Sensor: S_2x3B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KZNG1JT 38C

ROC1 KZNG1JT 48C

ROC2 KZNG1JT 48D

ROC3 KZNG1JT 38A

ROC4 KZNG1JT 49D

ROC5 KZNG1JT 76B

ROC	ROC wafer	Label
ROC0	KZNG1JT	38C
ROC1	KZNG1JT	48C
ROC2	KZNG1JT	48D
ROC3	KZNG1JT	38A
ROC4	KZNG1JT	49D
ROC5	KZNG1JT	76B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 158 150 142 150 156 144

Vana, VanaData 137 139 138 135 144 133

CalDelData and plots 57 59 57 55 71 70

VthrCompData and plots 54 56 55 48 53 53

TestDdata ,TestD Plots 0 0 0 0 2 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	140	95	100	90	95	105
Vsf	140	145	140	140	140	140
VoffsetOp	90	100	90	85	95	50
VIbias_PH	100	95	105	100	100	95

ROC0 NOISE			MEAN = 4.003060 SIGMA = 0.311295
ROC1 NOISE			MEAN = 3.956477 SIGMA = 0.328798
ROC2 NOISE			MEAN = 4.656612 SIGMA = 0.380073

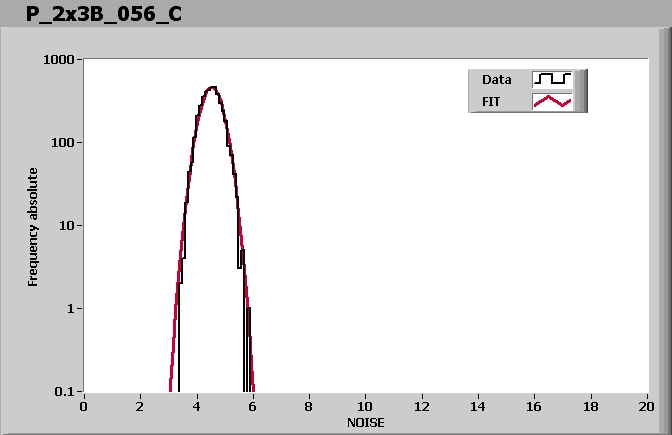

ROC3 NOISE			MEAN = 4.526858 SIGMA = 0.363353
ROC4 NOISE			MEAN = 4.204990 SIGMA = 0.359443

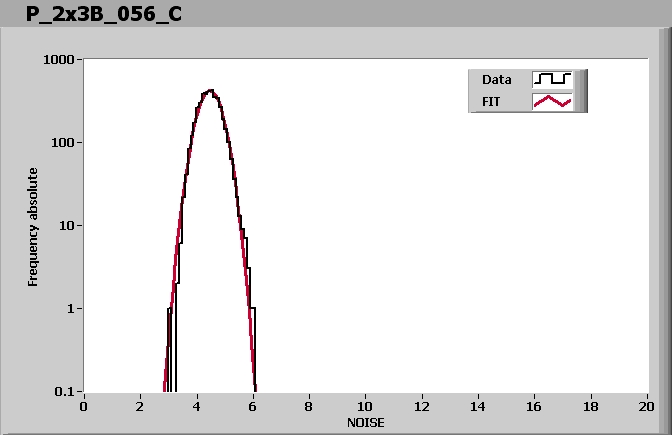

ROC5 NOISE			MEAN = 4.462121 SIGMA = 0.397156

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:22 PM

Ibias_DAC, Ibias_DAC Data	158	150	142	150	156	144
Vana, VanaData	137	139	138	135	144	133
CalDelData and plots	57	59	57	55	71	70
VthrCompData and plots	54	56	55	48	53	53
TestDdata ,TestD Plots	0	0	0	0	2	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
