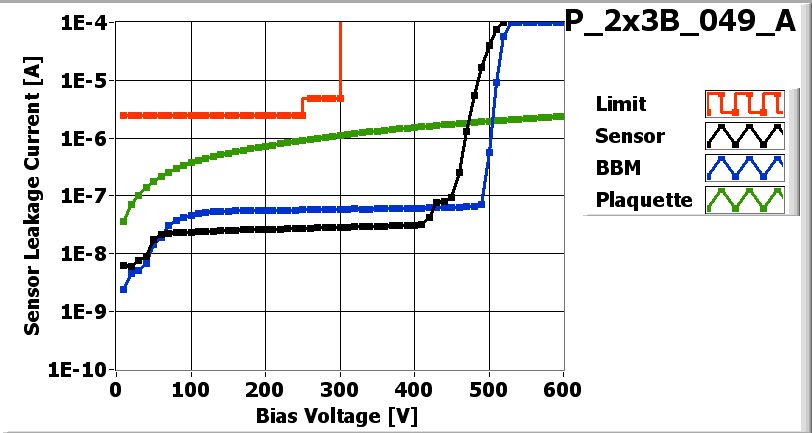

![[IMAGE] of](P_2x3B_049_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_049_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 6/14/2007
| Part | ID |
|---|---|
| BBM | BBM_049-2x3B |
| VHDI | 2x3_517 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W48_DVLQDVT | 58B |
| ROC1 | W48_DVLQDVT | 58A |
| ROC2 | W48_DVLQDVT | 57B |
| ROC3 | W48_DVLQDVT | 32B |
| ROC4 | W48_DVLQDVT | 32C |
| ROC5 | W48_DVLQDVT | 32D |
Inspected by Lockwood Gale on date 6/18/2007
| LR_dev | 0.031 |
| LL_dev | 0.030 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 5, CH 30,29, ROC 3,ch 34,35 No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/18/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/18/2007 by Ozhan Koybasi
P_2x3B_049_Aon 6/20/2007 1:51 PM
P_2x3B_049_A-1on 6/20/2007 1:53 PM
P_2x3B_049_A-1on 6/20/2007 1:53 PM
PLAQUETTE TESTED on 2007-06-20 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 156 | 142 | 158 | 144 | 148 | |
| Vana | 150 | 144 | 147 | 138 | 133 | 151 | |
| Cal_Del | 62 | 73 | 95 | 82 | 101 | 71 | |
| Vthrs_Comp | 89 | 89 | 84 | 84 | 79 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 2 | 0 | 1 | 0 | |
| Noisy | 3 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 1 | 2 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_049_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_049_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_049_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_049_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_049_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_049_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 95 | 95 | 105 | 90 |
| Vsf | 150 | 145 | 150 | 140 | 135 | 150 |
| VoffsetOp | 120 | 125 | 90 | 115 | 65 | 110 |
| VIbias_PH | 100 | 100 | 105 | 100 | 105 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_049_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_049_A-1-580-efficiency.jpg)

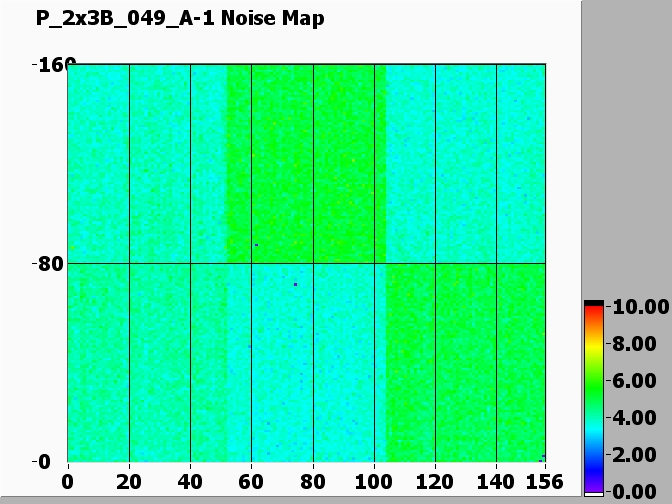

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_049_A-1-200-noise.jpg)

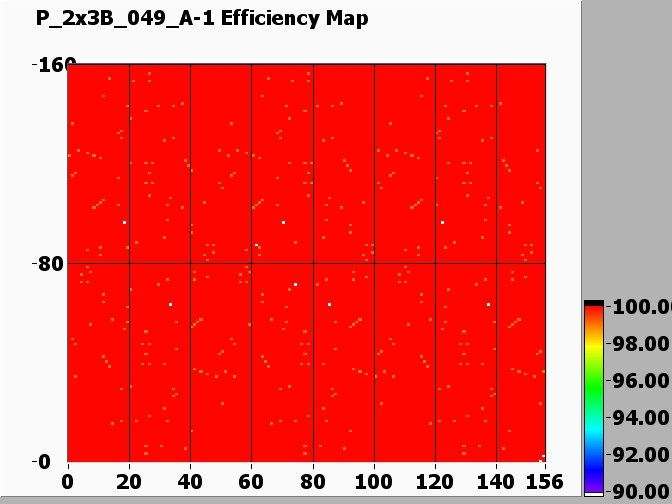

Efficiency MAP
![[IMAGE] of](P_2x3B_049_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
