P_2x3B_049

P_2x3B_049_A-1

Production testing

Date:6/20/2007

Operator: Emily Grace

start testing time:1:53 PM

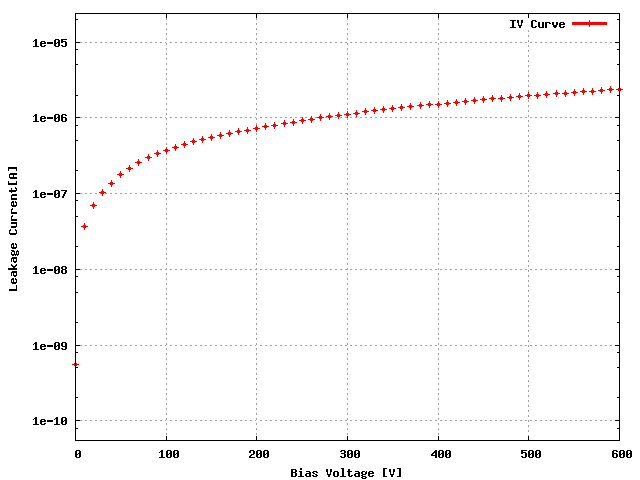

Sensor: S_2x3B_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W48_DVLQDVT 58B

ROC1 W48_DVLQDVT 58A

ROC2 W48_DVLQDVT 57B

ROC3 W48_DVLQDVT 32B

ROC4 W48_DVLQDVT 32C

ROC5 W48_DVLQDVT 32D

ROC	ROC wafer	Label
ROC0	W48_DVLQDVT	58B
ROC1	W48_DVLQDVT	58A
ROC2	W48_DVLQDVT	57B
ROC3	W48_DVLQDVT	32B
ROC4	W48_DVLQDVT	32C
ROC5	W48_DVLQDVT	32D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 158 156 142 158 144 148

Vana, VanaData 150 144 147 138 133 151

CalDelData and plots 62 73 95 82 101 71

VthrCompData and plots 89 89 84 84 79 90

TestDdata ,TestD Plots 3 1 2 0 1 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

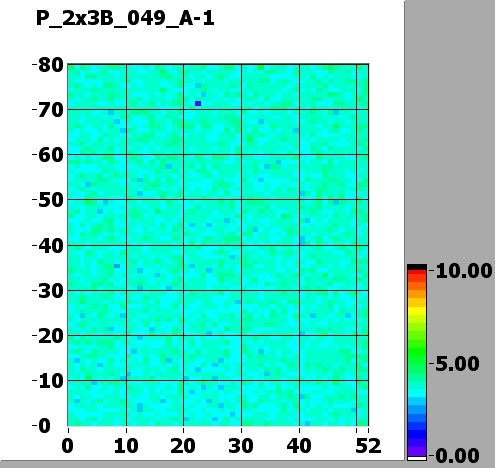

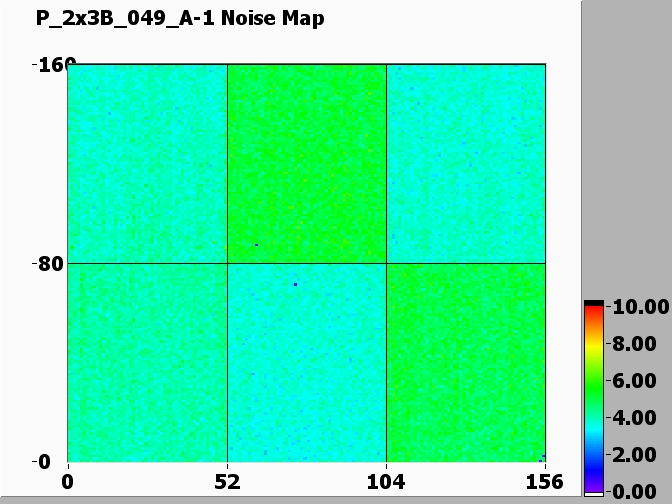

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	90	95	95	105	90
Vsf	150	145	150	140	135	150
VoffsetOp	120	125	90	115	65	110
VIbias_PH	100	100	105	100	105	95

ROC0 NOISE			MEAN = 4.056013 SIGMA = 0.320785
ROC1 NOISE			MEAN = 3.665460 SIGMA = 0.285791

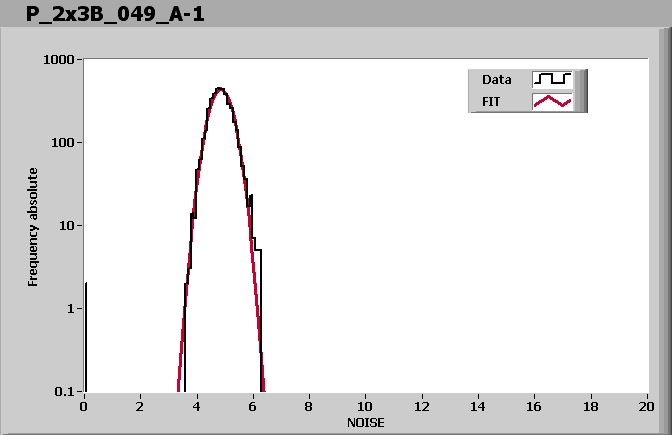

ROC2 NOISE			MEAN = 4.852035 SIGMA = 0.370024

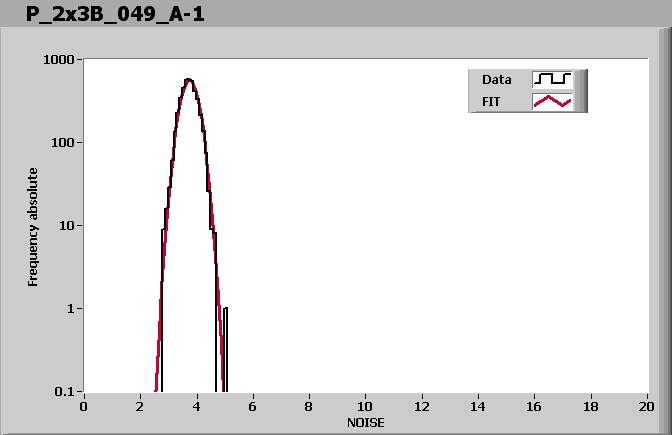

ROC3 NOISE			MEAN = 3.739757 SIGMA = 0.290958
ROC4 NOISE			MEAN = 5.065613 SIGMA = 0.405007

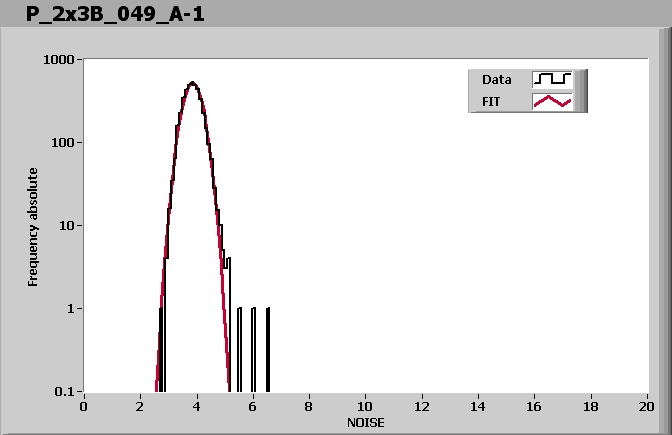

ROC5 NOISE			MEAN = 3.849059 SIGMA = 0.315381

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3B_049_A.html,

End testing time: 2:20 PM
