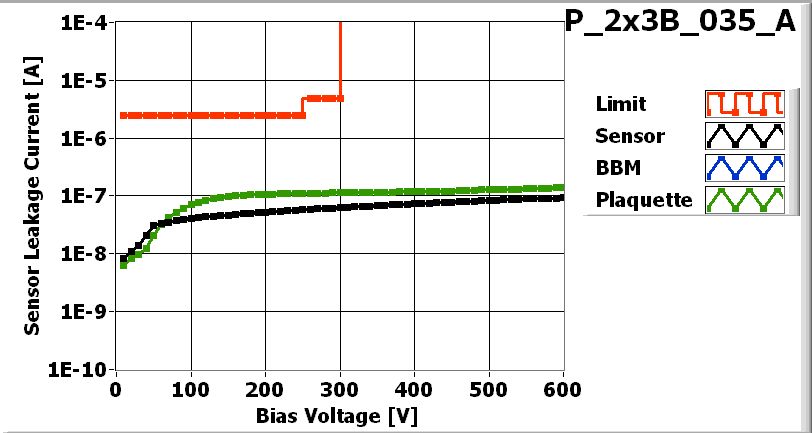

![[IMAGE] of](P_2x3B_035_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_035_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_035-2x3B |
| VHDI | 2x3_734 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 42A |
| ROC1 | W55_D3LQE4T | 41C |
| ROC2 | W55_D3LQE4T | 40B |
| ROC3 | W55_D3LQE4T | 37D |
| ROC4 | W55_D3LQE4T | 38A |
| ROC5 | W55_D3LQE4T | 38B |
Inspected by Arndt Kirk on date 11/9/2007
| LR_dev | 0.042 |
| LL_dev | 0.035 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. Irregular VHDI pads for ROC wirebonds. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/9/2007 by Arndt Kirk
PLAQUETTE encapsulated on 11/9/2007 by Lockwood Gale
PLAQUETTE made READY for testing on 11/9/2007 by Lockwood Gale
P_2x3B_035_Aon 11/9/2007 1:35 PM
P_2x3B_035_Aon 11/9/2007 1:35 PM
PLAQUETTE TESTED on 2007-11-09 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 160 | 154 | 166 | 146 | 146 | 144 | |
| Vana | 149 | 137 | 150 | 142 | 142 | 144 | |
| Cal_Del | 84 | 102 | 83 | 98 | 78 | 81 | |
| Vthrs_Comp | 88 | 77 | 84 | 82 | 88 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 3 | 5 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 3 | 5 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

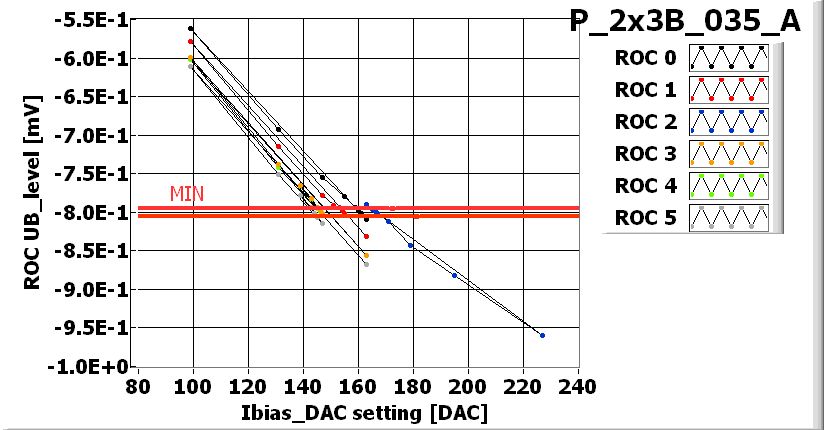

![[IMAGE] of](P_2x3B_035_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_035_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_035_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_035_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_035_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_035_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 95 | 100 | 85 | 105 | 95 |
| Vsf | 150 | 140 | 155 | 145 | 140 | 150 |
| VoffsetOp | 115 | 95 | 130 | 80 | 100 | 105 |
| VIbias_PH | 95 | 105 | 100 | 100 | 100 | 100 |

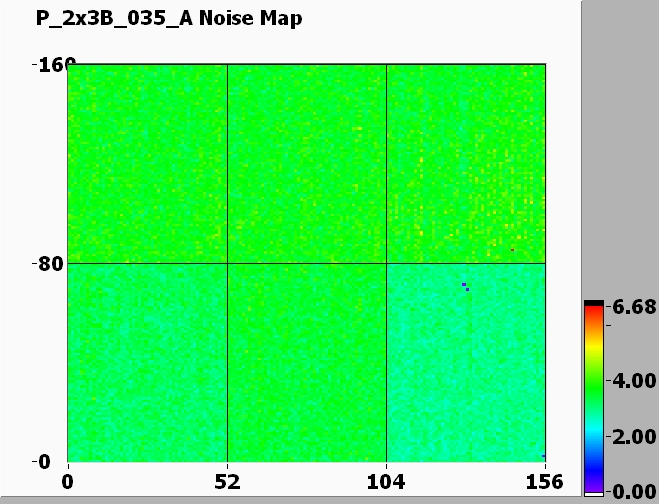

Noise MAP at VMAX
![[IMAGE] of](P_2x3B_035_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_035_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_035_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_035_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
