P_2x3B_035

P_2x3B_035_A

Production testing

Date:11/9/2007

Operator: Gino Bolla

start testing time:1:35 PM

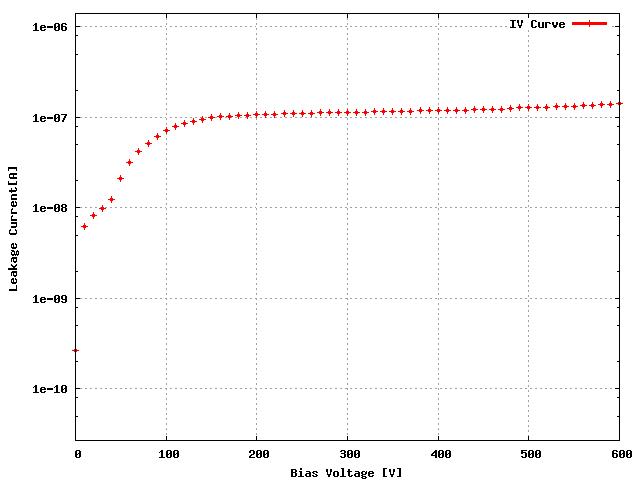

Sensor: S_2x3B_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W55_D3LQE4T 42A

ROC1 W55_D3LQE4T 41C

ROC2 W55_D3LQE4T 40B

ROC3 W55_D3LQE4T 37D

ROC4 W55_D3LQE4T 38A

ROC5 W55_D3LQE4T 38B

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	42A
ROC1	W55_D3LQE4T	41C
ROC2	W55_D3LQE4T	40B
ROC3	W55_D3LQE4T	37D
ROC4	W55_D3LQE4T	38A
ROC5	W55_D3LQE4T	38B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 160 154 166 146 146 144

Vana, VanaData 149 137 150 142 142 144

CalDelData and plots 84 102 83 98 78 81

VthrCompData and plots 88 77 84 82 88 88

TestDdata ,TestD Plots 4 0 3 12 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	95	100	85	105	95
Vsf	150	140	155	145	140	150
VoffsetOp	115	95	130	80	100	105
VIbias_PH	95	105	100	100	100	100

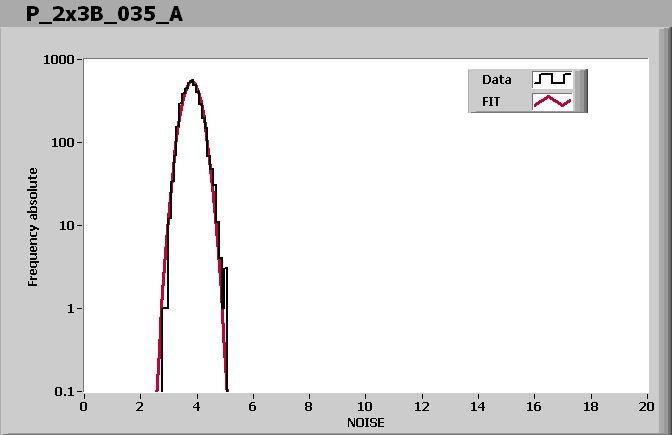

ROC0 NOISE			MEAN = 3.817624 SIGMA = 0.301966

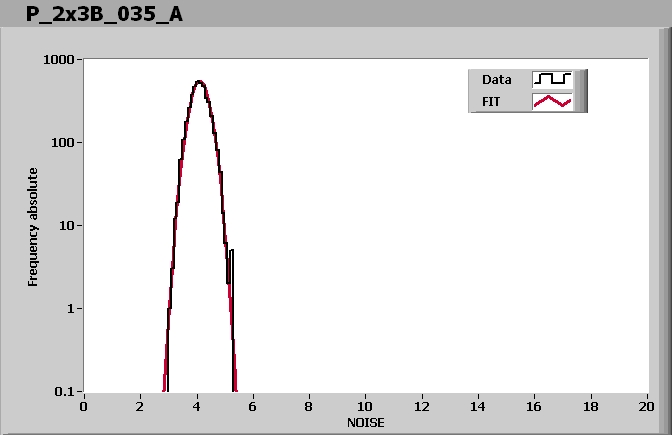

ROC1 NOISE			MEAN = 4.104835 SIGMA = 0.307122

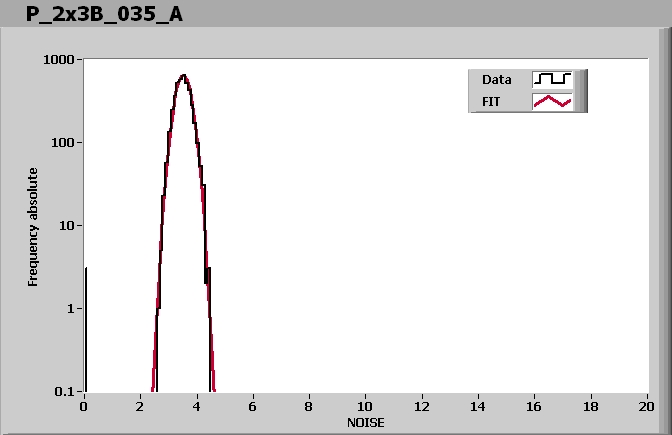

ROC2 NOISE			MEAN = 3.514392 SIGMA = 0.260091

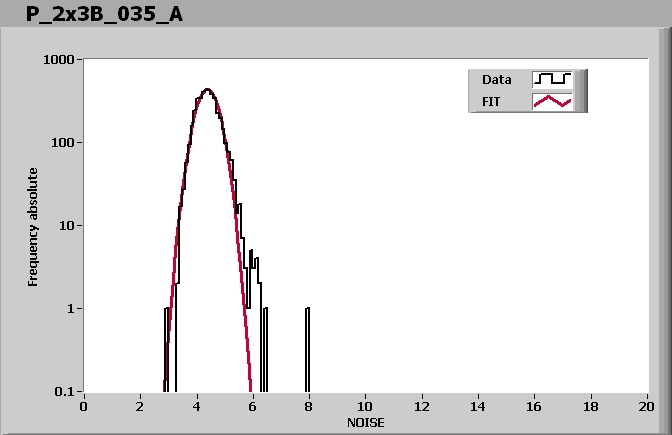

ROC3 NOISE			MEAN = 4.372432 SIGMA = 0.374883
ROC4 NOISE			MEAN = 4.325618 SIGMA = 0.344737
ROC5 NOISE			MEAN = 4.341274 SIGMA = 0.328444

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:01 PM

Ibias_DAC, Ibias_DAC Data	160	154	166	146	146	144
Vana, VanaData	149	137	150	142	142	144
CalDelData and plots	84	102	83	98	78	81
VthrCompData and plots	88	77	84	82	88	88
TestDdata ,TestD Plots	4	0	3	12	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
