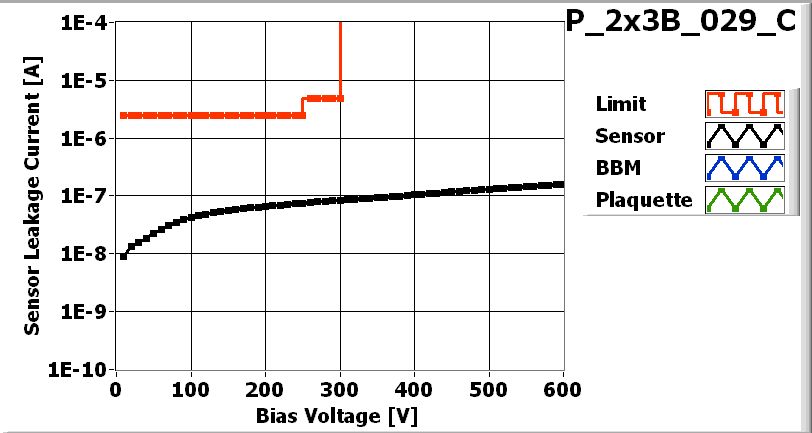

![[IMAGE] of](P_2x3B_029_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

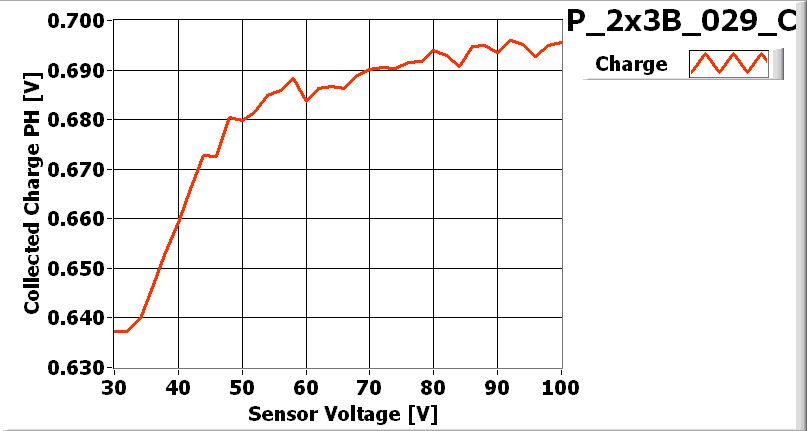

![[IMAGE] of](P_2x3B_029_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_029-2x3B |
| VHDI | 2x3_288 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XI4K3GT | 61D |
| ROC1 | XI4K3GT | 62D |
| ROC2 | XI4K3GT | 63D |
| ROC3 | XI4K3GT | 66D |
| ROC4 | XI4K3GT | 66C |
| ROC5 | XI4K3GT | 64C |
Inspected by Arndt Kirk on date 2006-08-08
| LR_dev | 0.072 |
| LL_dev | 0.065 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-08 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-09 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 159 | 156 | 149 | 140 | 174 | 154 | |
| Vana | 124 | 124 | 117 | 124 | 128 | 123 | |
| Cal_Del | 88 | 93 | 98 | 104 | 93 | 95 | |
| Vthrs_Comp | 63 | 67 | 60 | 66 | 80 | 66 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

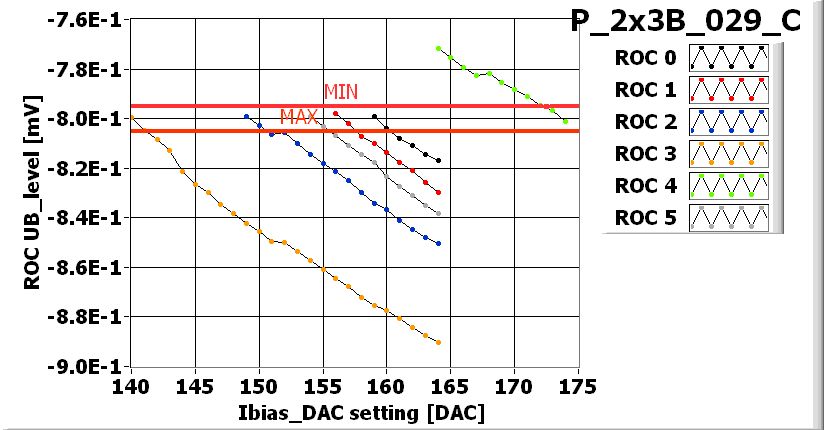

![[IMAGE] of](P_2x3B_029_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

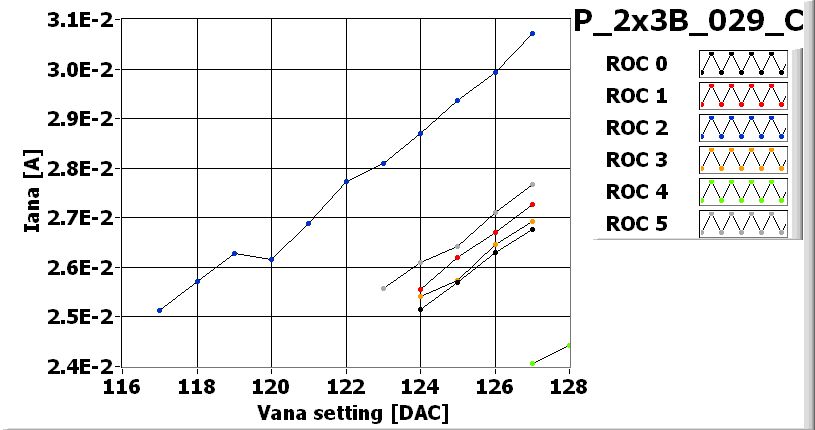

![[IMAGE] of](P_2x3B_029_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_029_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_029_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_029_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_029_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-10
