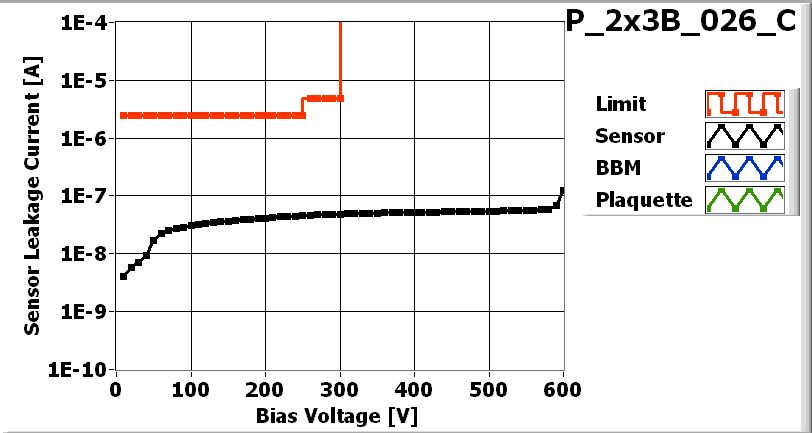

![[IMAGE] of](P_2x3B_026_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

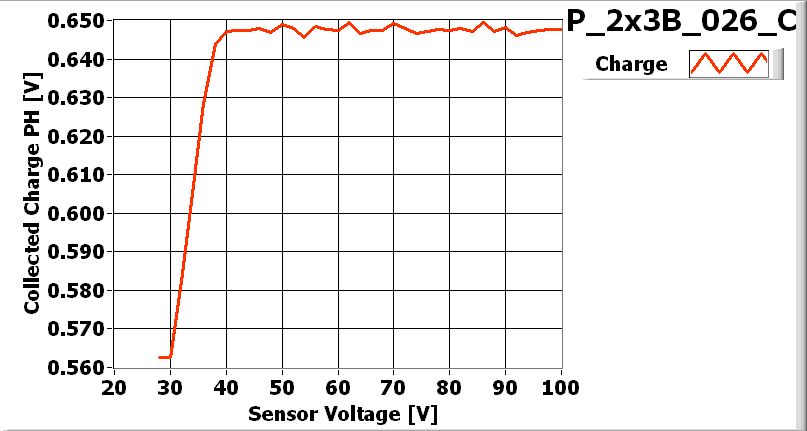

![[IMAGE] of](P_2x3B_026_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_026-2x3B |
| VHDI | 2x3_313 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 42D |
| ROC1 | XL4K3DT | 47C |
| ROC2 | XL4K3DT | 48C |
| ROC3 | XL4K3DT | 76B |
| ROC4 | XL4K3DT | 41D |
| ROC5 | XL4K3DT | 42C |
Inspected by Arndt Kirk on date 2006-07-27
| LR_dev | 0.033 |
| LL_dev | 0.049 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-27 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-27 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 178 | 167 | 174 | 165 | 166 | 172 | |
| Vana | 131 | 133 | 127 | 118 | 117 | 130 | |
| Cal_Del | 89 | 97 | 92 | 95 | 102 | 84 | |
| Vthrs_Comp | 67 | 73 | 80 | 74 | 75 | 68 | |
| Unbumped | 0 | 5 | 4 | 7 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 5 | 4 | 7 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

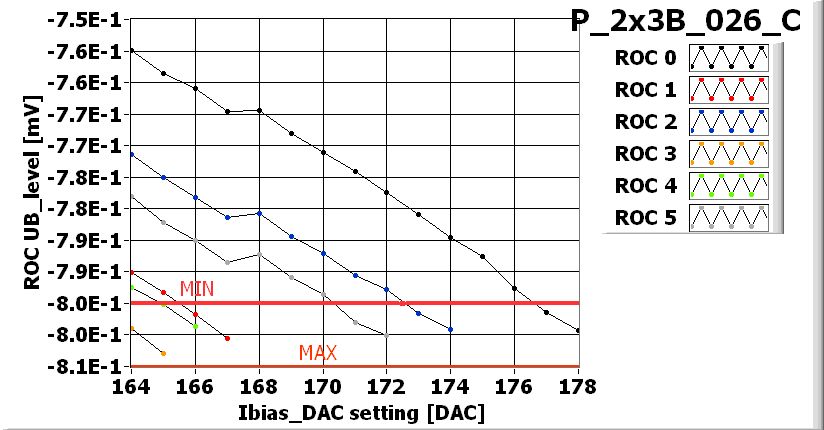

![[IMAGE] of](P_2x3B_026_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

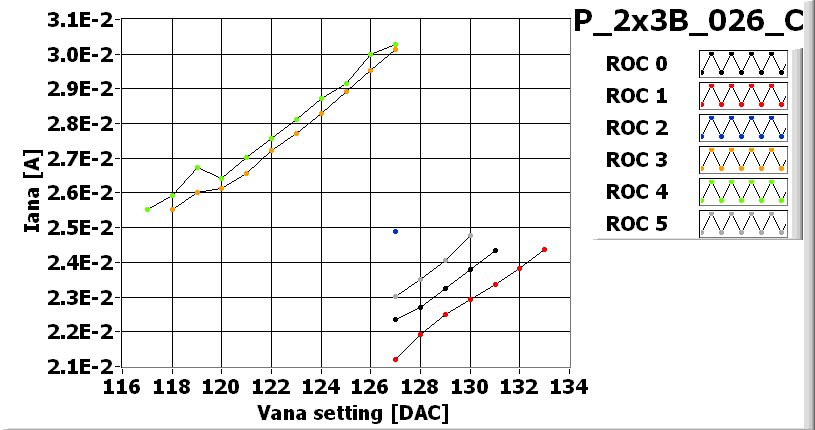

![[IMAGE] of](P_2x3B_026_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_026_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_026_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_026_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_026_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-31
