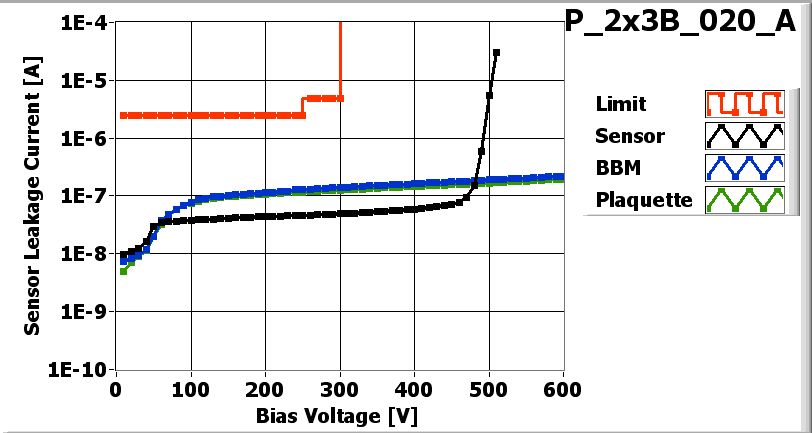

![[IMAGE] of](P_2x3B_020_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_020_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_020-2x3B |
| VHDI | 2x3_534 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 24B |
| ROC1 | W49_D1LQG5T | 24A |
| ROC2 | W49_D1LQG5T | 23D |
| ROC3 | W49_D1LQG5T | 57D |
| ROC4 | W49_D1LQG5T | 58A |
| ROC5 | W49_D1LQG5T | 58B |
Inspected by Lockwood Gale on date 5/18/2007
| LR_dev | 0.052 |
| LL_dev | 0.074 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/18/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/18/2007 by Ortiz Jason
P_2x3B_020_Aon 5/21/2007 1:24 PM
P_2x3B_020_Aon 5/21/2007 1:24 PM
PLAQUETTE TESTED on 2007-05-21 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 144 | 148 | 168 | 154 | 158 | 142 | |
| Vana | 129 | 137 | 157 | 144 | 144 | 154 | |
| Cal_Del | 81 | 76 | 79 | 92 | 73 | 82 | |
| Vthrs_Comp | 85 | 83 | 91 | 87 | 89 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

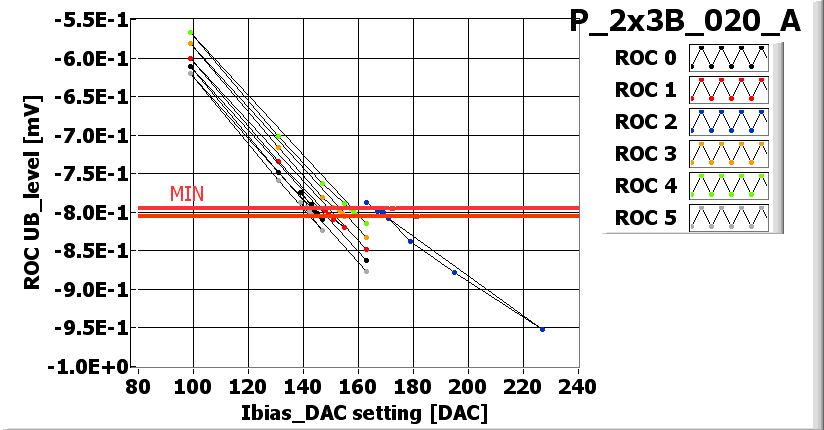

![[IMAGE] of](P_2x3B_020_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

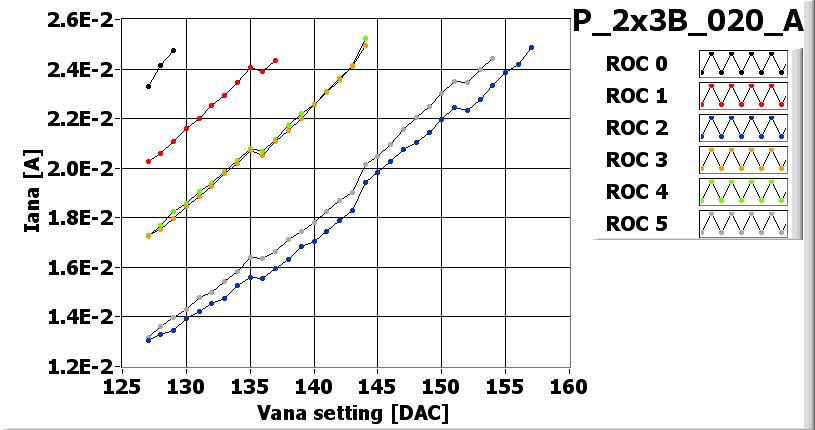

![[IMAGE] of](P_2x3B_020_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_020_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_020_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_020_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_020_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 115 | 95 | 90 | 100 | 95 |
| Vsf | 140 | 140 | 160 | 145 | 140 | 150 |
| VoffsetOp | 105 | 95 | 115 | 90 | 110 | 100 |
| VIbias_PH | 105 | 100 | 95 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_020_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_020_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_020_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_020_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
