P_2x3B_020

P_2x3B_020_A

Production testing

Date:5/21/2007

Operator: Emily Grace

start testing time:1:24 PM

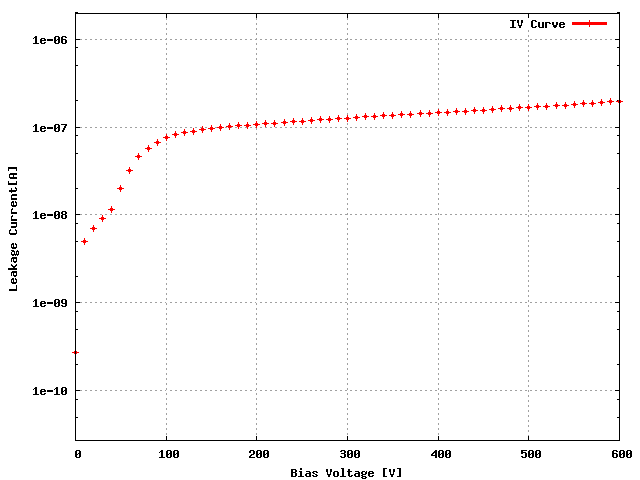

Sensor: S_2x3B_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 24B

ROC1 W49_D1LQG5T 24A

ROC2 W49_D1LQG5T 23D

ROC3 W49_D1LQG5T 57D

ROC4 W49_D1LQG5T 58A

ROC5 W49_D1LQG5T 58B

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	24B
ROC1	W49_D1LQG5T	24A
ROC2	W49_D1LQG5T	23D
ROC3	W49_D1LQG5T	57D
ROC4	W49_D1LQG5T	58A
ROC5	W49_D1LQG5T	58B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 144 148 168 154 158 142

Vana, VanaData 129 137 157 144 144 154

CalDelData and plots 81 76 79 92 73 82

VthrCompData and plots 85 83 91 87 89 90

TestDdata ,TestD Plots 0 0 0 0 1 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	115	95	90	100	95
Vsf	140	140	160	145	140	150
VoffsetOp	105	95	115	90	110	100
VIbias_PH	105	100	95	100	100	100

ROC0 NOISE			MEAN = 4.403693 SIGMA = 0.352230

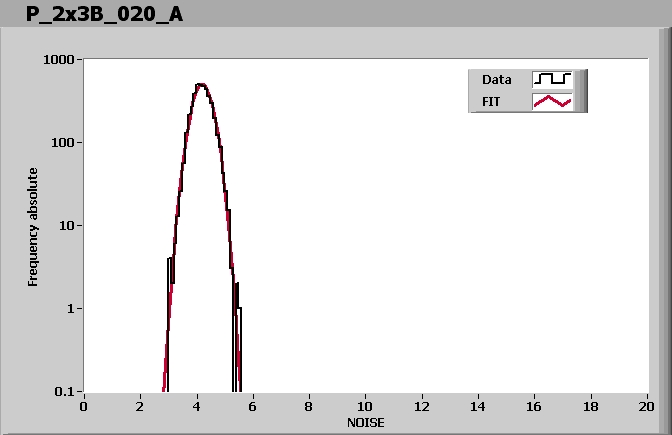

ROC1 NOISE			MEAN = 4.190629 SIGMA = 0.331328
ROC2 NOISE			MEAN = 4.186537 SIGMA = 0.335672
ROC3 NOISE			MEAN = 4.294707 SIGMA = 0.356257
ROC4 NOISE			MEAN = 3.976021 SIGMA = 0.315927
ROC5 NOISE			MEAN = 4.536281 SIGMA = 0.355231

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:48 PM

Ibias_DAC, Ibias_DAC Data	144	148	168	154	158	142
Vana, VanaData	129	137	157	144	144	154
CalDelData and plots	81	76	79	92	73	82
VthrCompData and plots	85	83	91	87	89	90
TestDdata ,TestD Plots	0	0	0	0	1	1
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
