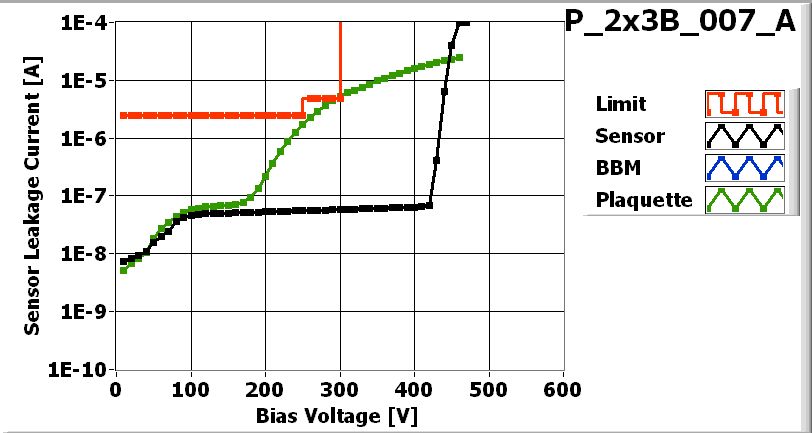

![[IMAGE] of](P_2x3B_007_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 460 V |
![[IMAGE] of](P_2x3B_007_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_007-2x3B |
| VHDI | 2x3_411 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_D0LQC8T | 04A |
| ROC1 | W52_D0LQC8T | 03D |
| ROC2 | W52_D0LQC8T | 23B |
| ROC3 | W52_D0LQC8T | 16A |
| ROC4 | W52_D0LQC8T | 56A |
| ROC5 | W52_D0LQC8T | 56B |
Inspected by Lockwood Gale on date 2/27/2008
| LR_dev | 0.060 |
| LL_dev | 0.062 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 3, Ch 2, 2FL, 2 tries, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2008 by Lockwood Gale
PLAQUETTE encapsulated on 2/28/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/28/2008 by Ozhan Koybasi
P_2x3B_007_Aon 2/28/2008 3:56 PM
P_2x3B_007_Aon 2/28/2008 3:56 PM
PLAQUETTE TESTED on 2008-02-28 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 138 | 142 | 146 | 146 | 162 | 160 | |
| Vana | 137 | 134 | 149 | 141 | 145 | 135 | |
| Cal_Del | 94 | 95 | 78 | 75 | 72 | 87 | |
| Vthrs_Comp | 75 | 81 | 90 | 88 | 91 | 88 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

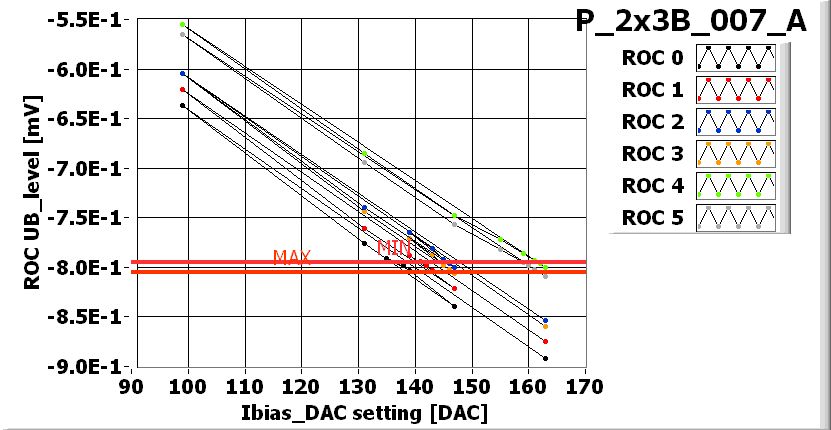

![[IMAGE] of](P_2x3B_007_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

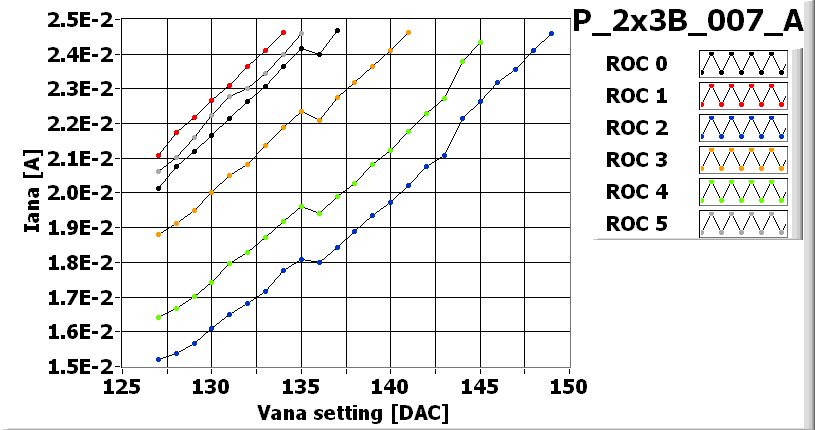

![[IMAGE] of](P_2x3B_007_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_007_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_007_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_007_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_007_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 135 | 95 | 100 | 100 | 115 |
| Vsf | 140 | 140 | 150 | 145 | 145 | 140 |
| VoffsetOp | 95 | 90 | 110 | 110 | 95 | 105 |
| VIbias_PH | 100 | 100 | 100 | 100 | 105 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_007_A-440-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_007_A-440-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_007_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_007_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
