P_2x3B_007

P_2x3B_007_A

Production testing

Date:2/28/2008

Operator: Ozhan Koybasi

start testing time:3:56 PM

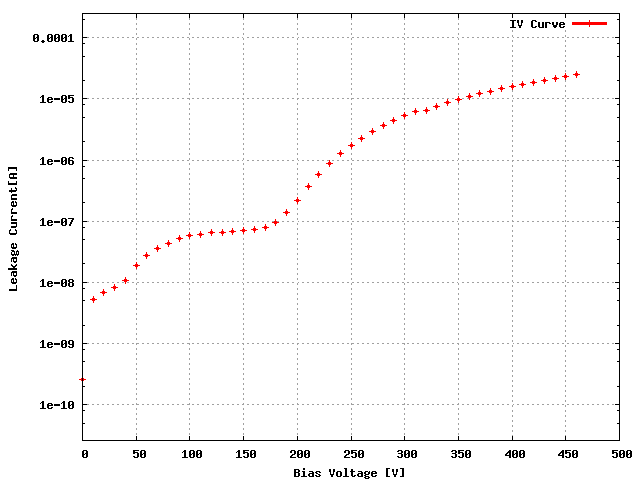

Sensor: S_2x3B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_D0LQC8T 04A

ROC1 W52_D0LQC8T 03D

ROC2 W52_D0LQC8T 23B

ROC3 W52_D0LQC8T 16A

ROC4 W52_D0LQC8T 56A

ROC5 W52_D0LQC8T 56B

ROC	ROC wafer	Label
ROC0	W52_D0LQC8T	04A
ROC1	W52_D0LQC8T	03D
ROC2	W52_D0LQC8T	23B
ROC3	W52_D0LQC8T	16A
ROC4	W52_D0LQC8T	56A
ROC5	W52_D0LQC8T	56B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 138 142 146 146 162 160

Vana, VanaData 137 134 149 141 145 135

CalDelData and plots 94 95 78 75 72 87

VthrCompData and plots 75 81 90 88 91 88

TestDdata ,TestD Plots 0 0 0 0 2 1

LightData ,Light Plots 0 0 0 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	135	95	100	100	115
Vsf	140	140	150	145	145	140
VoffsetOp	95	90	110	110	95	105
VIbias_PH	100	100	100	100	105	100

ROC0 NOISE			MEAN = 4.169065 SIGMA = 0.326653

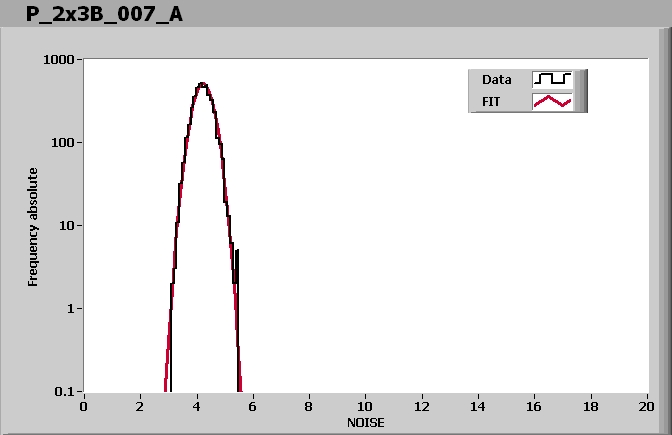

ROC1 NOISE			MEAN = 4.219718 SIGMA = 0.326451

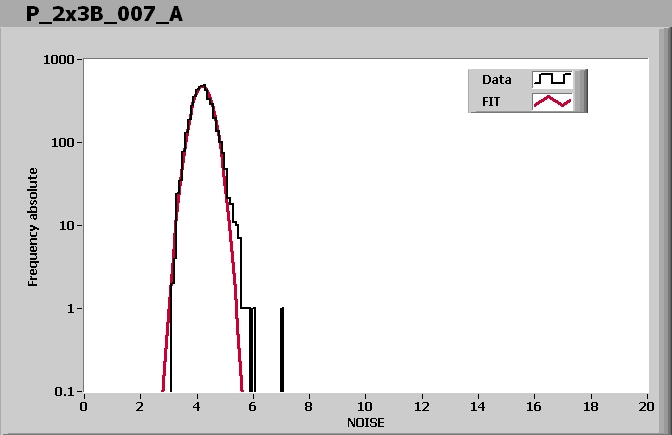

ROC2 NOISE			MEAN = 4.200853 SIGMA = 0.340951

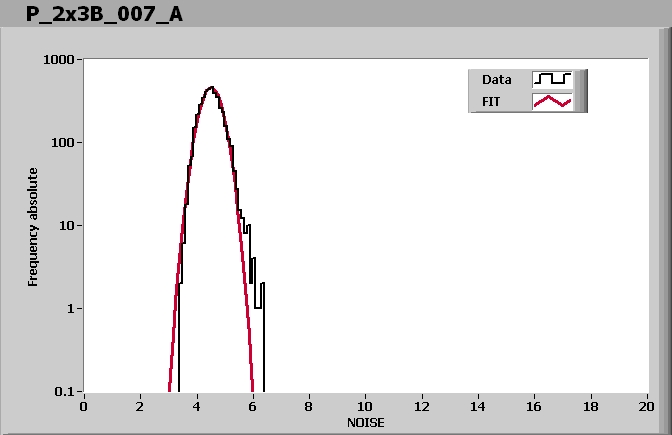

ROC3 NOISE			MEAN = 4.503062 SIGMA = 0.363877

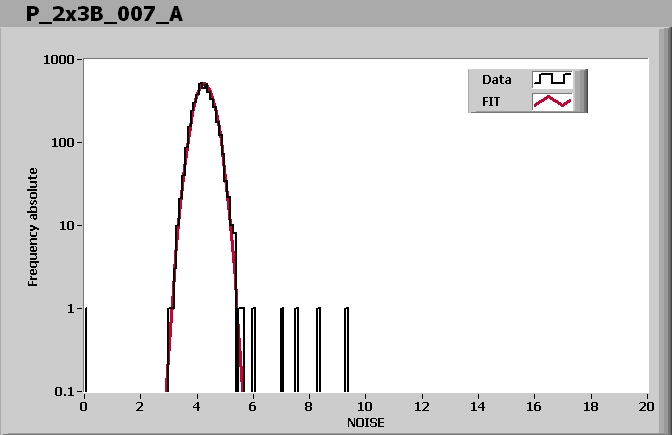

ROC4 NOISE			MEAN = 4.264738 SIGMA = 0.329023
ROC5 NOISE			MEAN = 3.977829 SIGMA = 0.298628

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:21 PM

Ibias_DAC, Ibias_DAC Data	138	142	146	146	162	160
Vana, VanaData	137	134	149	141	145	135
CalDelData and plots	94	95	78	75	72	87
VthrCompData and plots	75	81	90	88	91	88
TestDdata ,TestD Plots	0	0	0	0	2	1
LightData ,Light Plots	0	0	0	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
