![[IMAGE] of](P_2x3B_005_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_005_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_005-2x3B |
| VHDI | 2x3_730 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 38B |
| ROC1 | W47_DXLQF5T | 37D |
| ROC2 | W46_D3LQC5T | 05B |
| ROC3 | W55_D3LQE4T | 75A |
| ROC4 | W55_D3LQE4T | 75B |
| ROC5 | W55_D3LQE4T | 75C |
Inspected by Arndt Kirk on date 11/9/2007
| LR_dev | 0.050 |
| LL_dev | 0.052 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. Irregular VHDI pads for ROC wirebonds. ROC3 ch 35 2FL scraped VHDI pad 5 tries, no other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/9/2007 by Arndt Kirk
PLAQUETTE encapsulated on 11/9/2007 by Lockwood Gale
PLAQUETTE made READY for testing on 11/9/2007 by Lockwood Gale
P_2x3B_005_Aon 11/9/2007 1:03 PM
P_2x3B_005_Aon 11/9/2007 1:03 PM
PLAQUETTE TESTED on 2007-11-09 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 162 | 158 | 148 | 148 | 154 | 162 | |
| Vana | 144 | 147 | 133 | 130 | 144 | 149 | |
| Cal_Del | 80 | 92 | 104 | 96 | 94 | 80 | |
| Vthrs_Comp | 90 | 83 | 69 | 80 | 80 | 94 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

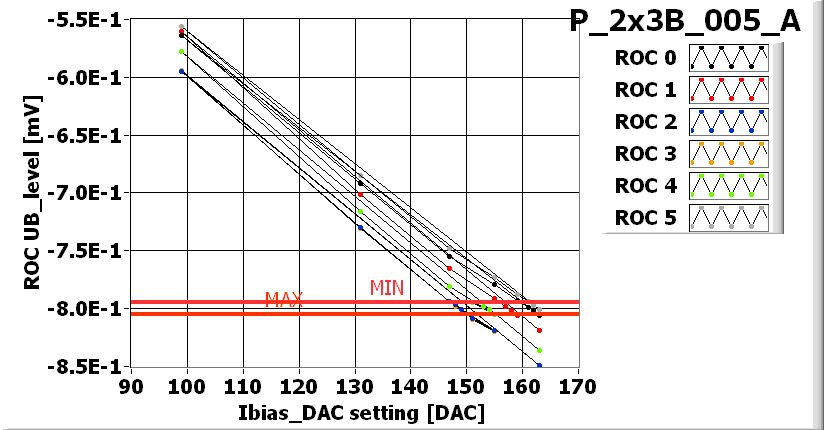

![[IMAGE] of](P_2x3B_005_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_005_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_005_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_005_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_005_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_005_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 100 | 110 | 100 | 95 |
| Vsf | 145 | 145 | 140 | 140 | 150 | 145 |
| VoffsetOp | 110 | 105 | 105 | 90 | 95 | 95 |
| VIbias_PH | 100 | 100 | 100 | 95 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_005_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_005_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3B_005_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_005_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
