P_2x3B_005

P_2x3B_005_A

Production testing

Date:11/9/2007

Operator: Ozhan Koybasi

start testing time:1:03 PM

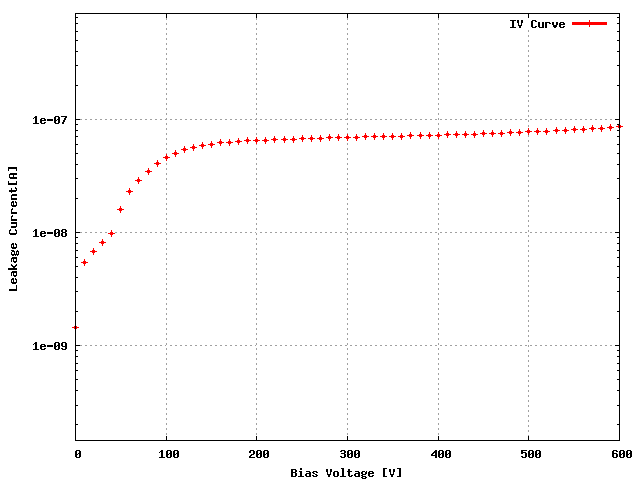

Sensor: S_2x3B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W47_DXLQF5T 38B

ROC1 W47_DXLQF5T 37D

ROC2 W46_D3LQC5T 05B

ROC3 W55_D3LQE4T 75A

ROC4 W55_D3LQE4T 75B

ROC5 W55_D3LQE4T 75C

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	38B
ROC1	W47_DXLQF5T	37D
ROC2	W46_D3LQC5T	05B
ROC3	W55_D3LQE4T	75A
ROC4	W55_D3LQE4T	75B
ROC5	W55_D3LQE4T	75C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 162 158 148 148 154 162

Vana, VanaData 144 147 133 130 144 149

CalDelData and plots 80 92 104 96 94 80

VthrCompData and plots 90 83 69 80 80 94

TestDdata ,TestD Plots 1 1 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	95	100	110	100	95
Vsf	145	145	140	140	150	145
VoffsetOp	110	105	105	90	95	95
VIbias_PH	100	100	100	95	100	100

ROC0 NOISE			MEAN = 3.875291 SIGMA = 0.288690
ROC1 NOISE			MEAN = 4.402113 SIGMA = 0.373337
ROC2 NOISE			MEAN = 4.125154 SIGMA = 0.320630
ROC3 NOISE			MEAN = 4.099840 SIGMA = 0.319116
ROC4 NOISE			MEAN = 4.457071 SIGMA = 0.347967

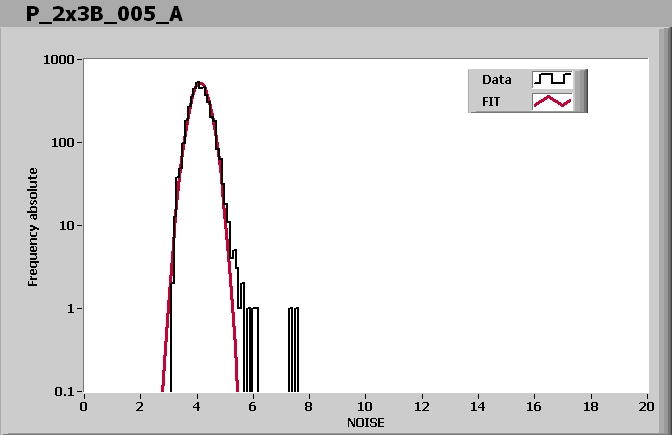

ROC5 NOISE			MEAN = 4.118295 SIGMA = 0.321974

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:32 PM

Ibias_DAC, Ibias_DAC Data	162	158	148	148	154	162
Vana, VanaData	144	147	133	130	144	149
CalDelData and plots	80	92	104	96	94	80
VthrCompData and plots	90	83	69	80	80	94
TestDdata ,TestD Plots	1	1	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
