![[IMAGE] of](P_2x3B_004_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 230 V |
![[IMAGE] of](P_2x3B_004_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_004-2x3B |
| VHDI | 2x3_385 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 05A |
| ROC1 | XE4K3KT | 04B |
| ROC2 | XE4K3KT | 04A |
| ROC3 | XE4K3KT | 05D |
| ROC4 | XE4K3KT | 03A |
| ROC5 | XE4K3KT | 03B |
Inspected by Arndt Kirk on date 2/7/2007
| LR_dev | 0.069 |
| LL_dev | 0.089 |
| FINAL COMMENT by Arndt Kirk | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/7/2007 by Arndt Kirk
P_2x3B_004_Con 2/7/2007 4:18 PM
P_2x3B_004_Con 2/7/2007 4:18 PM
PLAQUETTE TESTED on 2007-02-07 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 138 | 138 | 130 | 126 | 130 | |
| Vana | 142 | 128 | 126 | 139 | 138 | 131 | |
| Cal_Del | 91 | 88 | 81 | 83 | 84 | 90 | |
| Vthrs_Comp | 77 | 80 | 87 | 73 | 83 | 83 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_004_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_004_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_004_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_004_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_004_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_004_Cno-bump-light.jpg) |
LIGHT_XML-File |

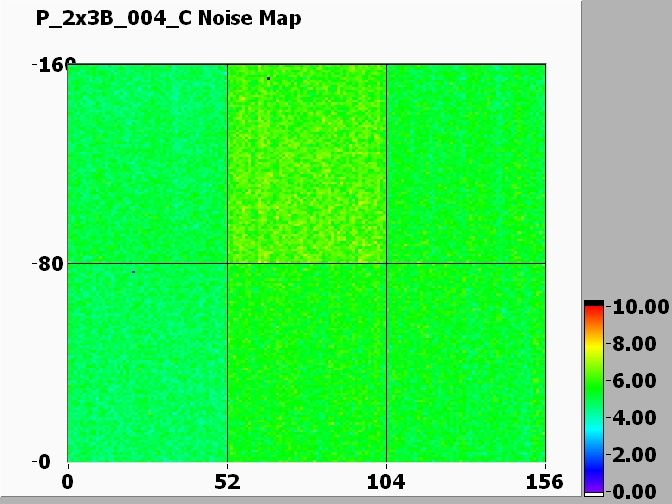

Noise MAP
![[IMAGE] of](P_2x3B_004_C-100-noise.jpg)

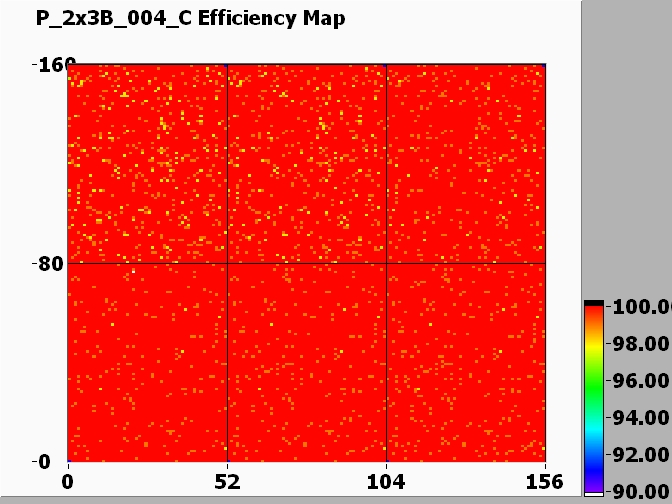

Efficiency MAP
![[IMAGE] of](P_2x3B_004_C-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC0-HISTO.jpg) | MEAN = 4.814246SIGMA = 0.363977 |

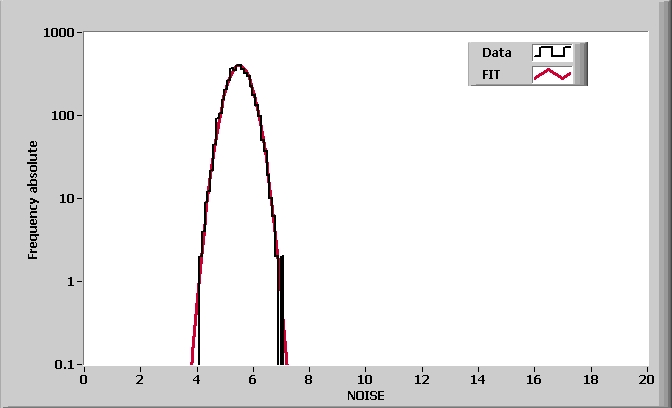

| ROC1 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC1-HISTO.jpg) | MEAN = 5.509327SIGMA = 0.415102 |

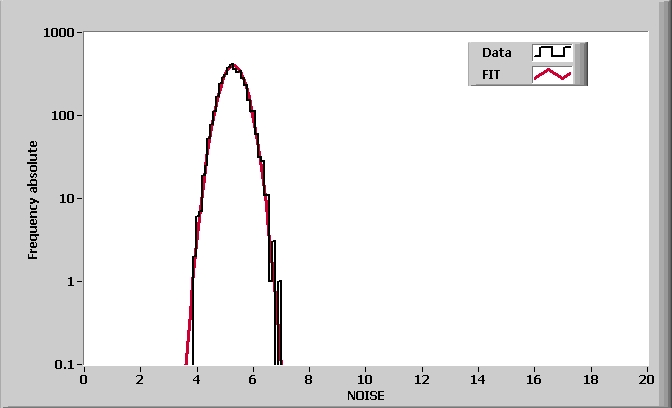

| ROC2 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC2-HISTO.jpg) | MEAN = 5.293478SIGMA = 0.415149 |
| ROC3 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC3-HISTO.jpg) | MEAN = 5.314345SIGMA = 0.434157 |

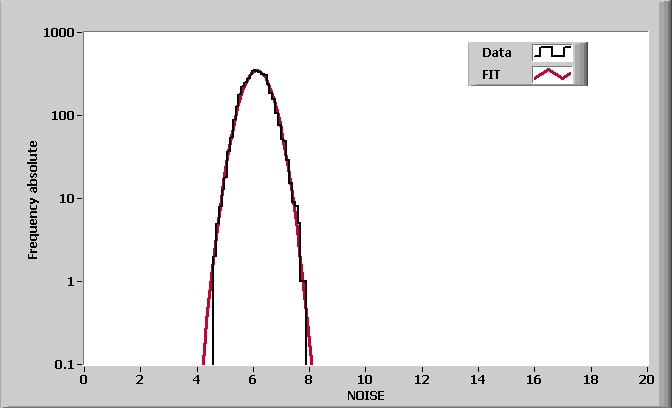

| ROC4 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC4-HISTO.jpg) | MEAN = 6.133102SIGMA = 0.477901 |

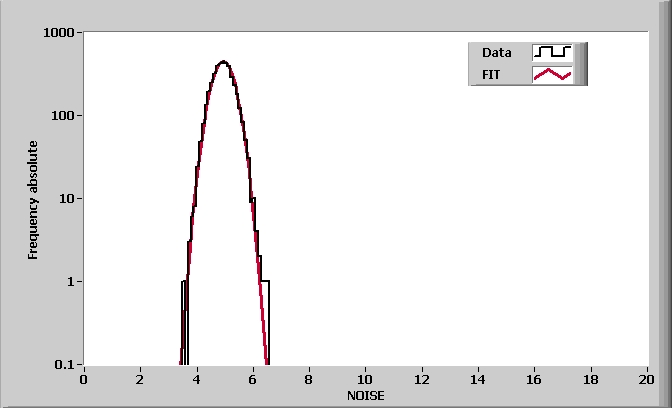

| ROC5 NOISE | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x3B_004_C-100-noise-ROC5-HISTO.jpg) | MEAN = 4.936693SIGMA = 0.368616 |
PLAQUETTE READY TO BE POTTED
