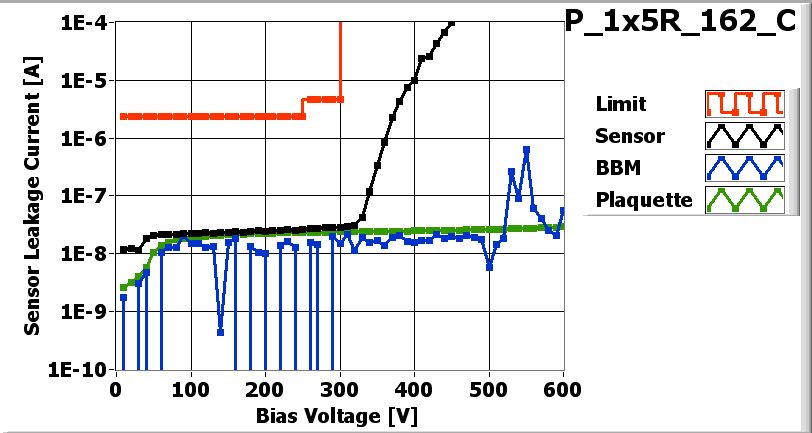

![[IMAGE] of](P_1x5R_162_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

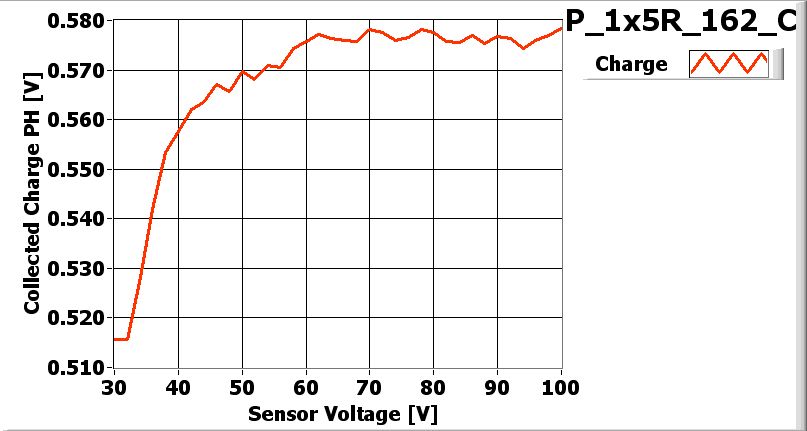

![[IMAGE] of](P_1x5R_162_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Arndt Kirk on date 5/1/2007
| Part | ID |
|---|---|
| BBM | BBM_162-1x5 |
| VHDI | 1x5R_245 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KNN0GDT | 14D |
| ROC1 | KNN0GDT | 04B |
| ROC2 | KNN0GDT | 74A |
| ROC3 | KNN0GDT | 74C |
| ROC4 | KNN0GDT | 18C |
Inspected by Arndt Kirk on date 5/7/2007
| LR_dev | 0.051 |
| LL_dev | 0.048 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/7/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/8/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 5/8/2007 by Arndt Kirk
P_1x5R_162_Con 5/8/2007 10:21 AM
P_1x5R_162_Con 5/8/2007 10:21 AM
PLAQUETTE TESTED on 2007-05-08 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 134 | 144 | 138 | 148 | 156 | |
| Vana | 134 | 143 | 134 | 134 | 143 | |
| Cal_Del | 84 | 77 | 90 | 68 | 72 | |
| Vthrs_Comp | 86 | 75 | 73 | 79 | 78 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

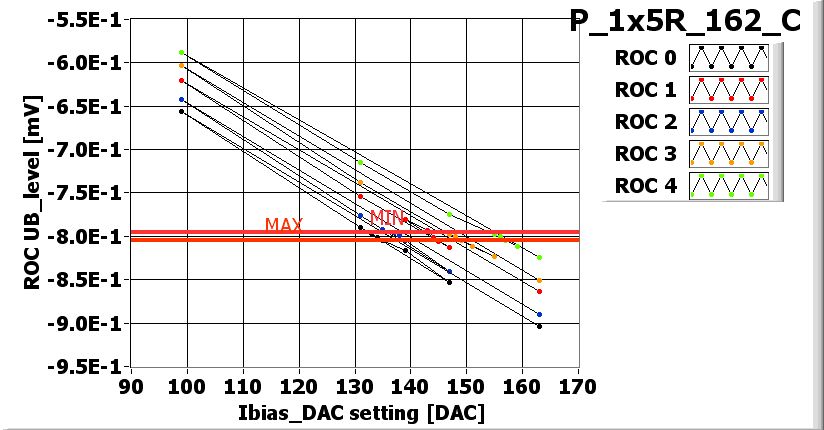

![[IMAGE] of](P_1x5R_162_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

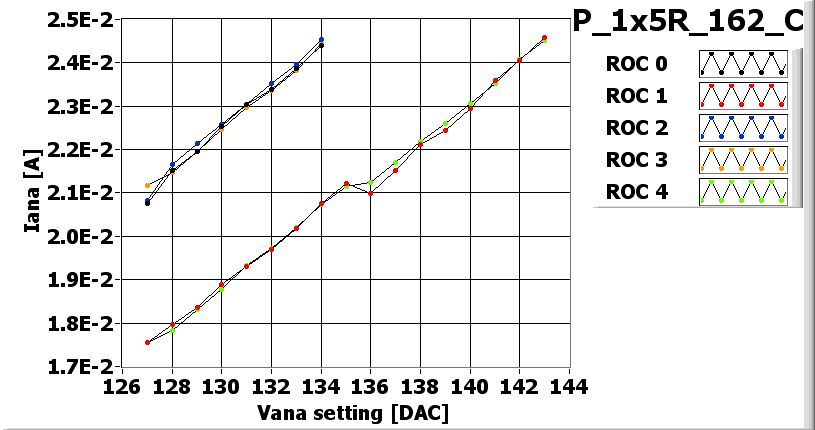

![[IMAGE] of](P_1x5R_162_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_162_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_162_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_162_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_162_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 85 | 115 | 115 | 100 |
| Vsf | 140 | 145 | 140 | 140 | 140 |
| VoffsetOp | 85 | 95 | 75 | 85 | 95 |
| VIbias_PH | 95 | 100 | 105 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_1x5R_162_C-580-noise.jpg)

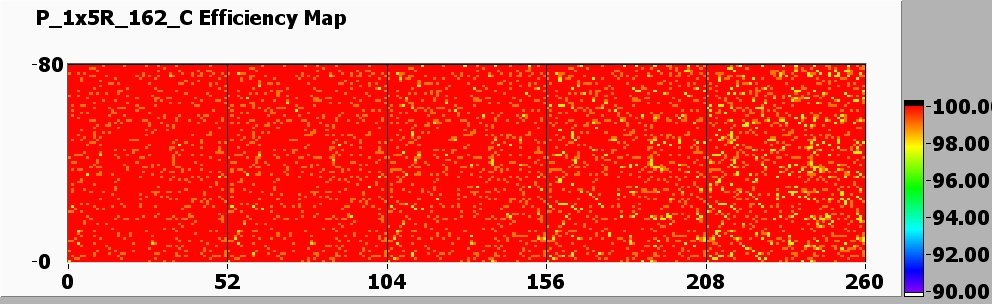

Efficiency MAP
![[IMAGE] of](P_1x5R_162_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
