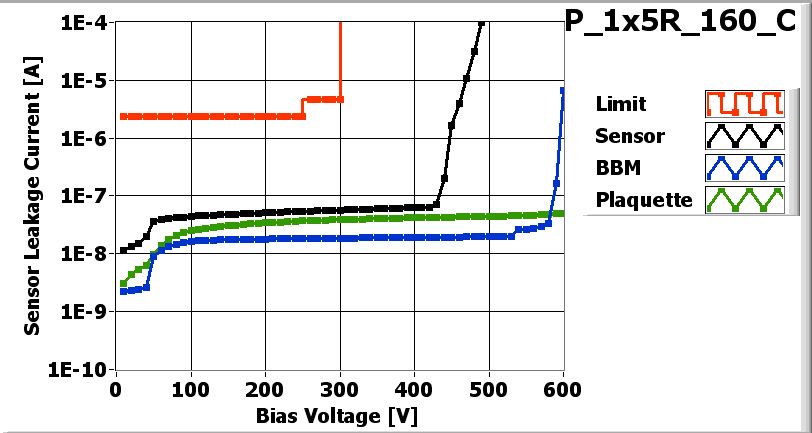

![[IMAGE] of](P_1x5R_160_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_160_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_160-1x5 |
| VHDI | 1x5R_287 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 15A |
| ROC1 | KBNG0QT | 13C |
| ROC2 | KBNG0QT | 75B |
| ROC3 | KBNG0QT | 75A |
| ROC4 | KBNG0QT | 35A |
Inspected by Lockwood Gale on date 6/18/2007
| LR_dev | 0.002 |
| LL_dev | 0.064 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/18/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/18/2007 by Ozhan Koybasi
P_1x5R_160_Con 6/20/2007 2:52 PM
P_1x5R_160_Con 6/20/2007 2:52 PM
PLAQUETTE TESTED on 2007-06-20 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 142 | 154 | 150 | 154 | 166 | |
| Vana | 128 | 146 | 124 | 135 | 144 | |
| Cal_Del | 64 | 66 | 92 | 98 | 65 | |
| Vthrs_Comp | 91 | 84 | 80 | 75 | 90 | |
| Unbumped | 23 | 6 | 6 | 1 | 11 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 23 | 6 | 6 | 1 | 11 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

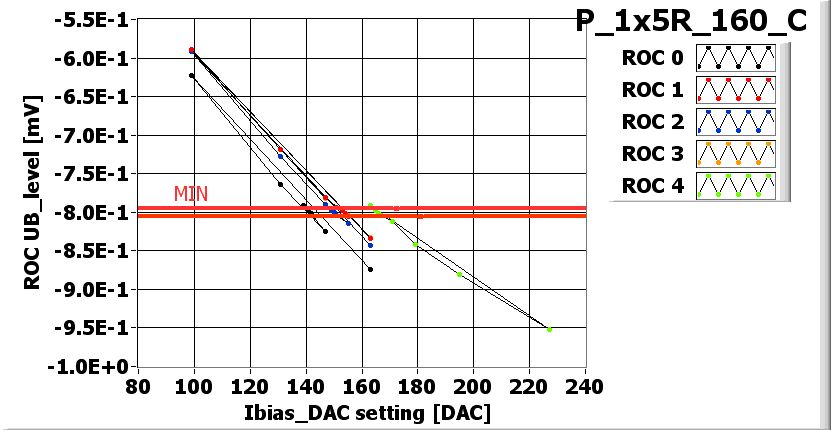

![[IMAGE] of](P_1x5R_160_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

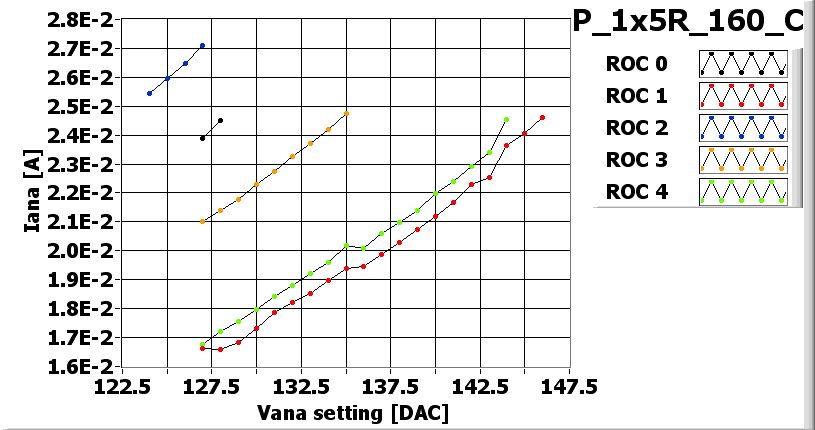

![[IMAGE] of](P_1x5R_160_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_160_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_160_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_160_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

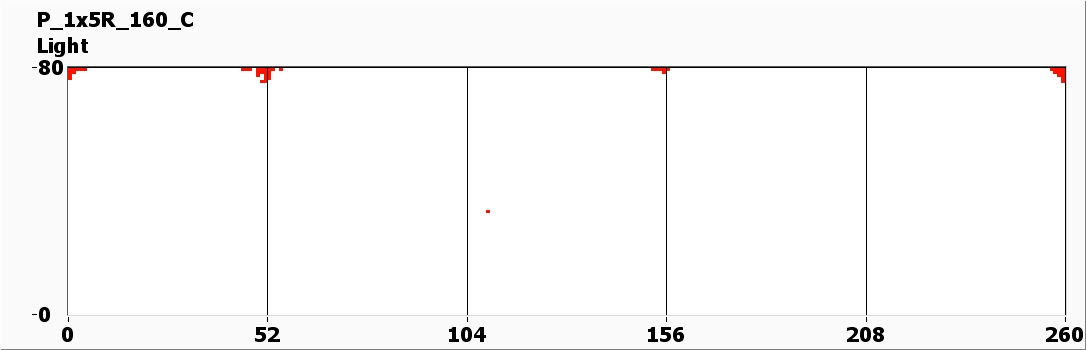

![[IMAGE] of](P_1x5R_160_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 95 | 155 | 120 | 90 |
| Vsf | 140 | 145 | 135 | 145 | 145 |
| VoffsetOp | 80 | 95 | 75 | 95 | 105 |
| VIbias_PH | 105 | 95 | 105 | 100 | 100 |

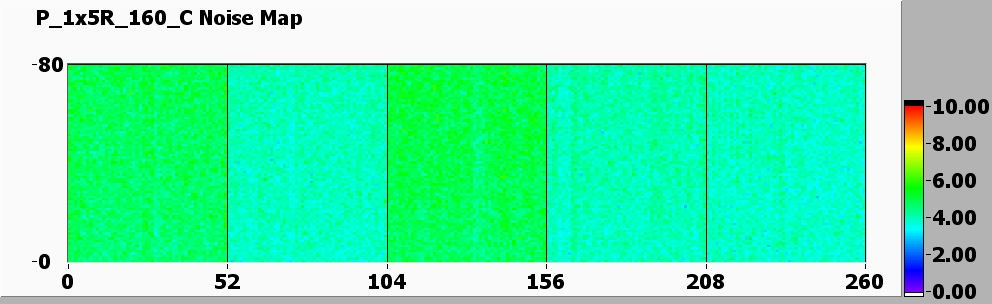

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_160_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_160_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5R_160_C-200-noise.jpg)

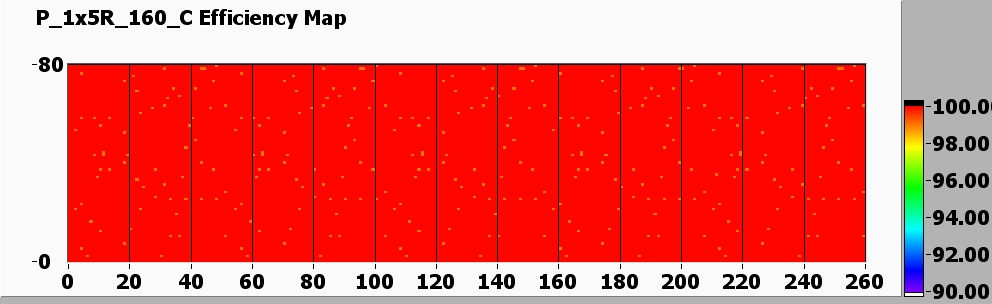

Efficiency MAP
![[IMAGE] of](P_1x5R_160_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
