P_1x5R_160

P_1x5R_160_C

Production testing

Date:6/20/2007

Operator: Emily Grace

start testing time:2:52 PM

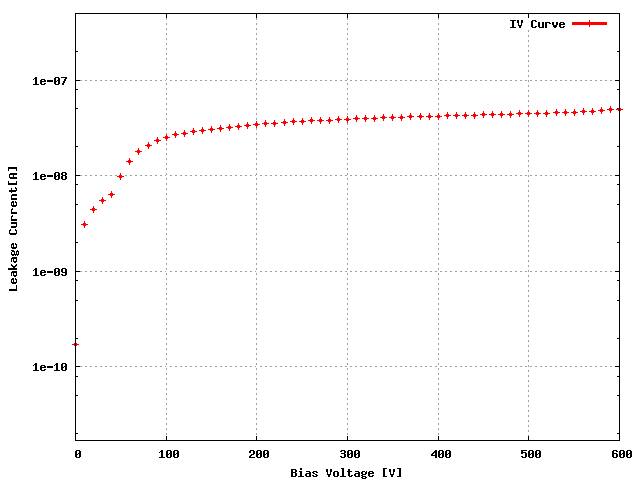

Sensor: S_1x5R_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 15A

ROC1 KBNG0QT 13C

ROC2 KBNG0QT 75B

ROC3 KBNG0QT 75A

ROC4 KBNG0QT 35A

ROC	ROC wafer	Label
ROC0	KBNG0QT	15A
ROC1	KBNG0QT	13C
ROC2	KBNG0QT	75B
ROC3	KBNG0QT	75A
ROC4	KBNG0QT	35A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 142 154 150 154 166

Vana, VanaData 128 146 124 135 144

CalDelData and plots 64 66 92 98 65

VthrCompData and plots 91 84 80 75 90

TestDdata ,TestD Plots 0 0 0 0 0

LightData ,Light Plots 23 6 6 1 11

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	95	155	120	90
Vsf	140	145	135	145	145
VoffsetOp	80	95	75	95	105
VIbias_PH	105	95	105	100	100

ROC0 NOISE			MEAN = 4.694996 SIGMA = 0.356863
ROC1 NOISE			MEAN = 3.896336 SIGMA = 0.295463
ROC2 NOISE			MEAN = 4.851413 SIGMA = 0.403727
ROC3 NOISE			MEAN = 3.967857 SIGMA = 0.328519
ROC4 NOISE			MEAN = 3.834418 SIGMA = 0.311851

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:18 PM

Ibias_DAC, Ibias_DAC Data	142	154	150	154	166
Vana, VanaData	128	146	124	135	144
CalDelData and plots	64	66	92	98	65
VthrCompData and plots	91	84	80	75	90
TestDdata ,TestD Plots	0	0	0	0	0
LightData ,Light Plots	23	6	6	1	11
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
