![[IMAGE] of](P_1x5R_143_A_IV.jpg)

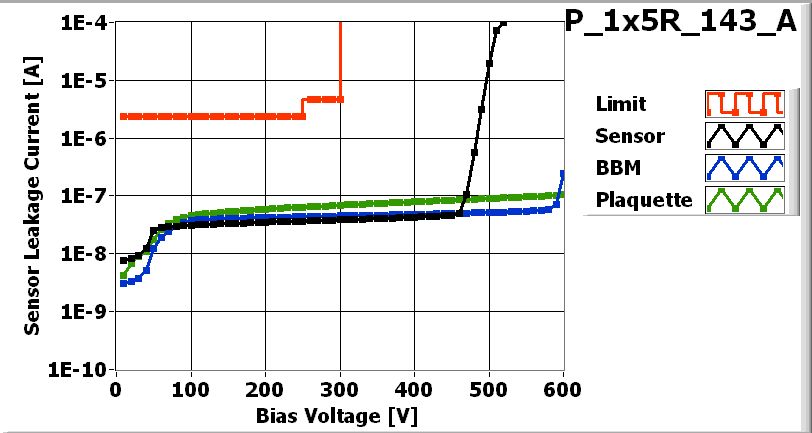

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_143_A_LASER.jpg)

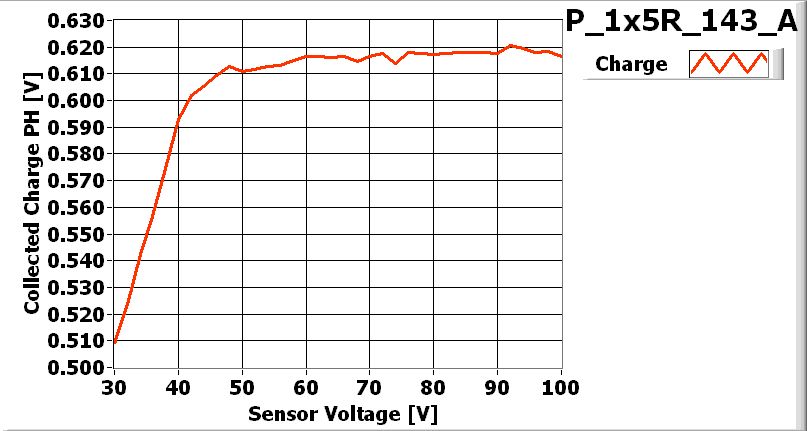

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 10/20/2007
| Part | ID |
|---|---|
| BBM | BBM_143-1x5 |
| VHDI | 1x5R_314 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 62C |
| ROC1 | W30_X74K5RT | 62B |
| ROC2 | W30_X74K5RT | 62A |
| ROC3 | W30_X74K5RT | 61B |
| ROC4 | W54_D2LQG4T | 26B |
Inspected by Lockwood Gale on date 10/23/2007
| LR_dev | 0.066 |
| LL_dev | 0.046 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Reworked BBM. Force used to join BBM to VHDI = 1.5 kg per ROC. No assembly problems. ROC 1, CH 32, 5 wo, ROC 4, CH 1 1hb, ROC 3 CH 7, 1hb 2 tries, All wires bonded. |
PLAQUETTE made READY for ENCAPSULATION on 10/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 10/23/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 10/23/2007 by Ozhan Koybasi
P_1x5R_143_Aon 10/23/2007 6:40 PM
P_1x5R_143_Aon 10/23/2007 6:40 PM
PLAQUETTE TESTED on 2007-10-23 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 150 | 150 | 150 | 148 | 138 | |
| Vana | 122 | 132 | 130 | 144 | 126 | |
| Cal_Del | 88 | 71 | 64 | 74 | 94 | |
| Vthrs_Comp | 73 | 74 | 86 | 84 | 73 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_143_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_143_A_Vana.jpg) |

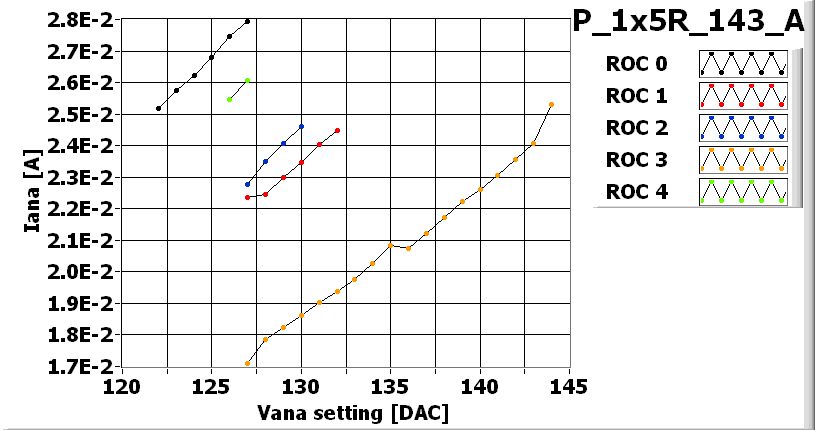

VANA_XML-File |
![[IMAGE] of](P_1x5R_143_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_143_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_143_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_143_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 110 | 120 | 95 | 120 |
| Vsf | 140 | 140 | 140 | 140 | 140 |
| VoffsetOp | 80 | 90 | 100 | 80 | 95 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 |

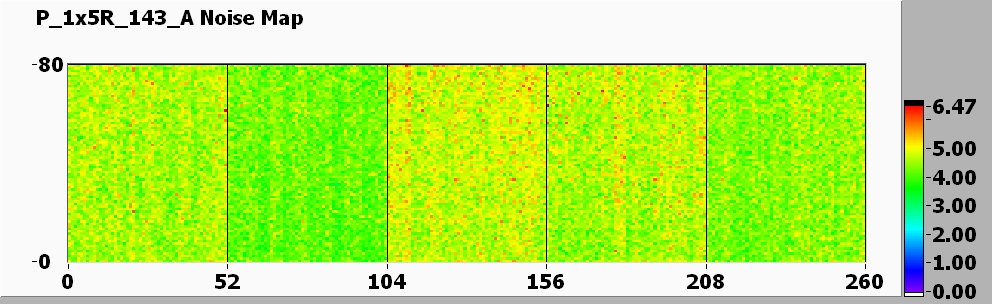

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_143_A-580-noise.jpg)

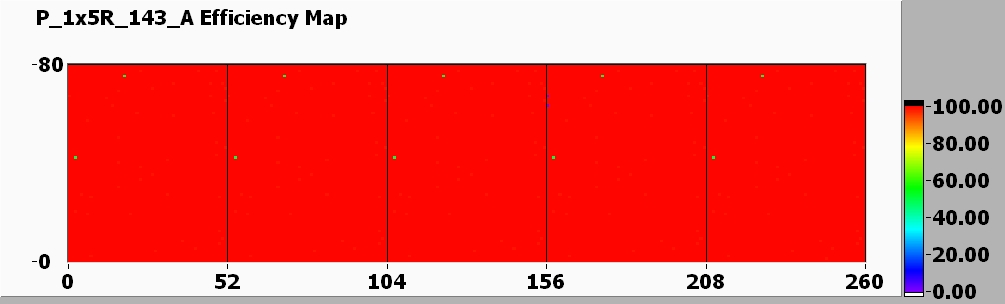

Efficiency MAP
![[IMAGE] of](P_1x5R_143_A-580-efficiency.jpg)

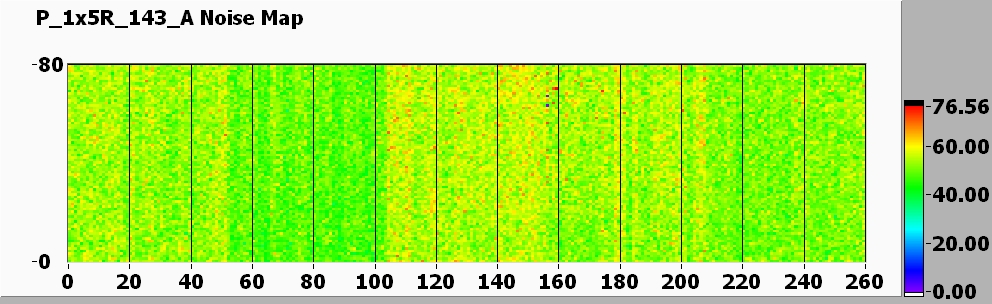

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_143_A-200-noise.jpg)

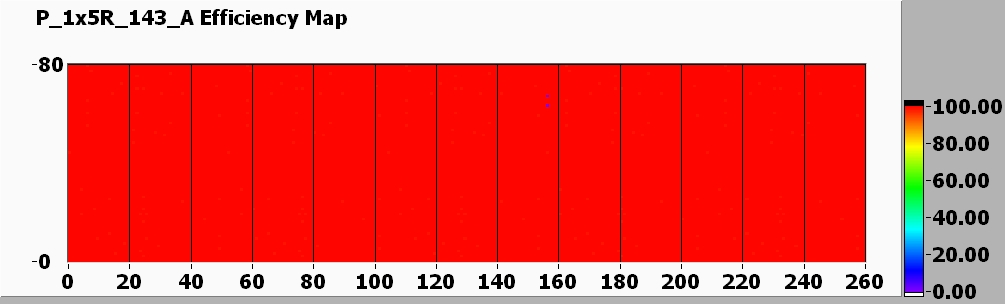

Efficiency MAP
![[IMAGE] of](P_1x5R_143_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
