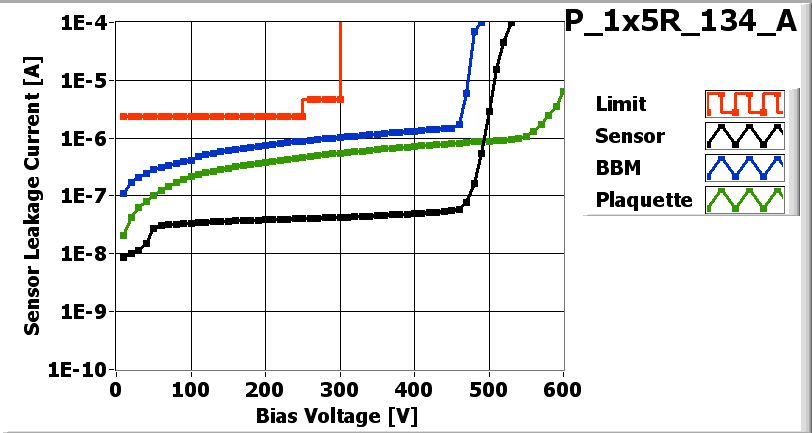

![[IMAGE] of](P_1x5R_134_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_134_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/19/2007
| Part | ID |
|---|---|
| BBM | BBM_134-1x5 |
| VHDI | 1x5R_269 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 23A |
| ROC1 | W35_XH4K3HT | 22D |
| ROC2 | W35_XH4K3HT | 22C |
| ROC3 | W35_XH4K3HT | 22B |
| ROC4 | W35_XH4K3HT | 21D |
Inspected by Arndt Kirk on date 4/26/2007
| LR_dev | 0.045 |
| LL_dev | 0.050 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/26/2007 by Arndt Kirk
PLAQUETTE encapsulated on 4/26/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/26/2007 by Ozhan Koybasi
P_1x5R_134_Aon 4/30/2007 12:49 PM
P_1x5R_134_Aon 4/30/2007 12:49 PM
PLAQUETTE TESTED on 2007-04-30 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 124 | 132 | 146 | 144 | 138 | |
| Vana | 120 | 126 | 149 | 125 | 127 | |
| Cal_Del | 85 | 70 | 64 | 89 | 99 | |
| Vthrs_Comp | 75 | 71 | 85 | 66 | 75 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

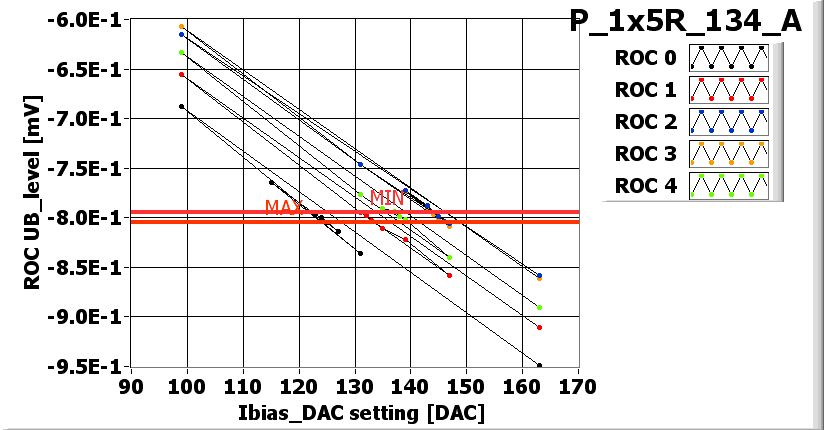

![[IMAGE] of](P_1x5R_134_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_134_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_134_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_134_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_134_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_134_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 125 | 95 | 115 | 135 |
| Vsf | 135 | 140 | 145 | 140 | 140 |
| VoffsetOp | 65 | 60 | 105 | 60 | 95 |
| VIbias_PH | 95 | 105 | 100 | 105 | 105 |

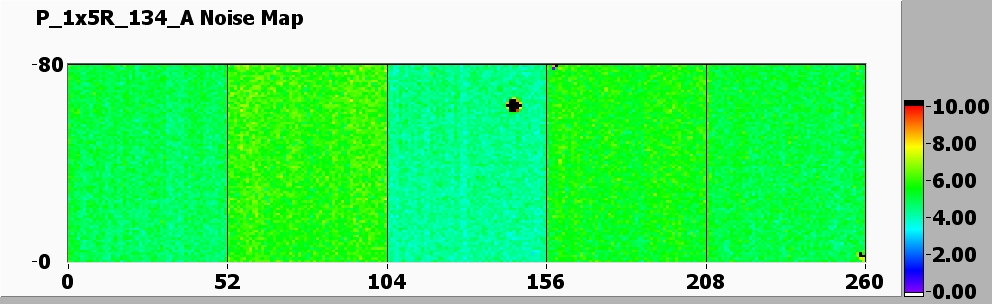

Noise MAP
![[IMAGE] of](P_1x5R_134_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_134_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
