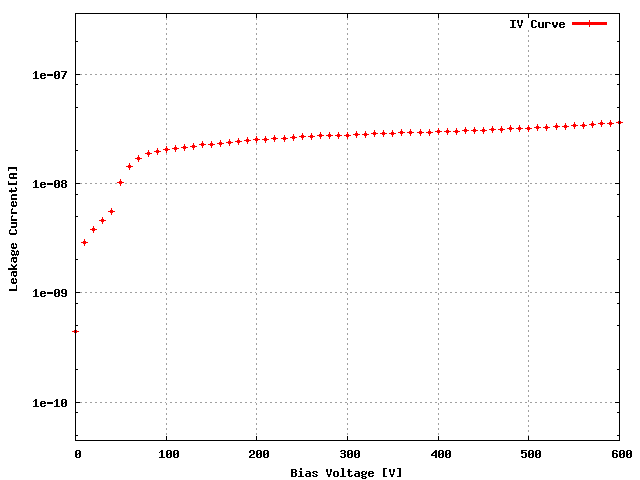

Sensor: S_1x5R_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 40C |
| ROC1 | XE4KFET | 44C |
| ROC2 | XE4KFET | 29A |
| ROC3 | XE4KFET | 30C |
| ROC4 | XE4KFET | 27D |
| Ibias_DAC, Ibias_DAC Data | 158 | 142 | 140 | 128 | 134 |
| Vana, VanaData | 139 | 144 | 145 | 129 | 128 |
| CalDelData and plots | 70 | 86 | 81 | 67 | 98 |
| VthrCompData and plots | 83 | 81 | 88 | 73 | 76 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 1 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:13 PM
