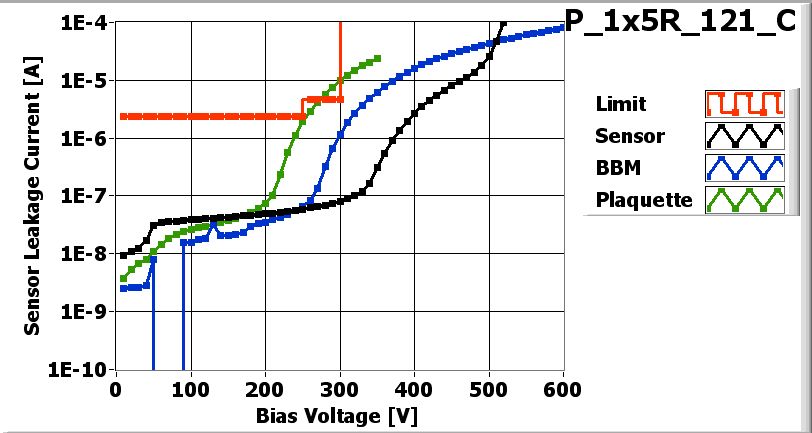

![[IMAGE] of](P_1x5R_121_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 350 V |

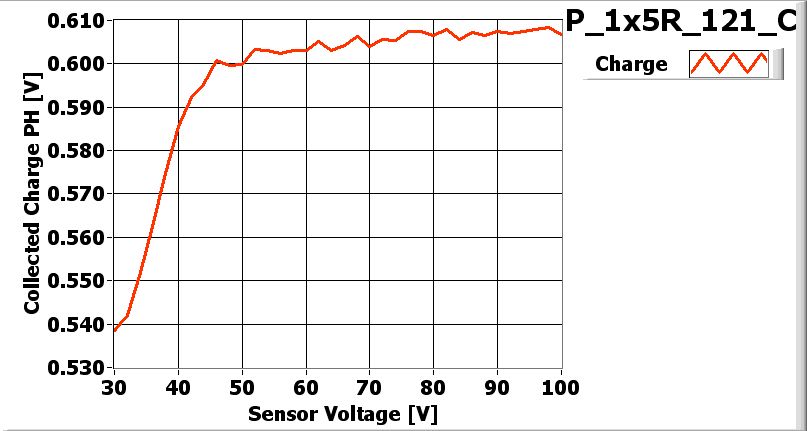

![[IMAGE] of](P_1x5R_121_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_121-1x5 |
| VHDI | 1x5R_295 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 51B |
| ROC1 | KZNG1JT | 61C |
| ROC2 | KZNG1JT | 61D |
| ROC3 | KZNG1JT | 62C |
| ROC4 | KZNG1JT | 42C |
Inspected by Arndt Kirk on date 6/13/2007
| LR_dev | 0.030 |
| LL_dev | 0.036 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. ROC3 channel 18 and 19 multiple bonds attempts. All wires OK. |
PLAQUETTE made READY for ENCAPSULATION on 6/13/2007 by Arndt Kirk
PLAQUETTE encapsulated on 6/13/2007 by Bolla Gino
PLAQUETTE made READY for testing on 6/13/2007 by Bolla Gino
P_1x5R_121_Con 6/14/2007 10:51 AM
P_1x5R_121_Con 6/14/2007 10:51 AM
PLAQUETTE TESTED on 2007-06-14 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 166 | 154 | 162 | 162 | 162 | |
| Vana | 144 | 138 | 137 | 138 | 139 | |
| Cal_Del | 67 | 88 | 85 | 99 | 74 | |
| Vthrs_Comp | 90 | 79 | 74 | 74 | 75 | |
| Unbumped | 0 | 0 | 0 | 7 | 1 | |
| Dead | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 7 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

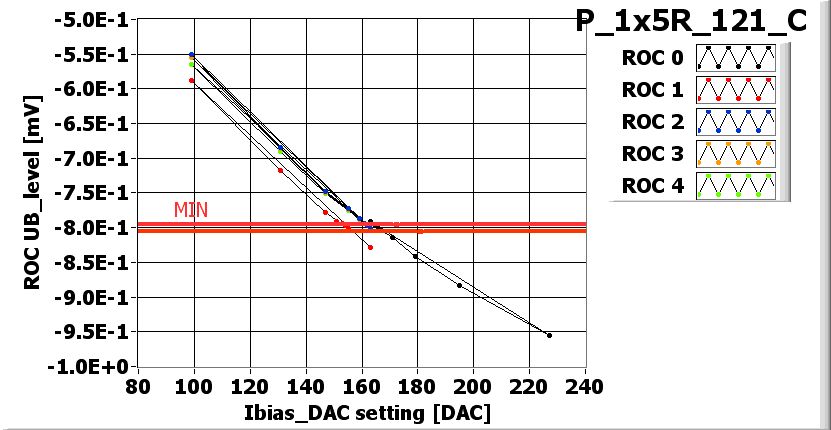

![[IMAGE] of](P_1x5R_121_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

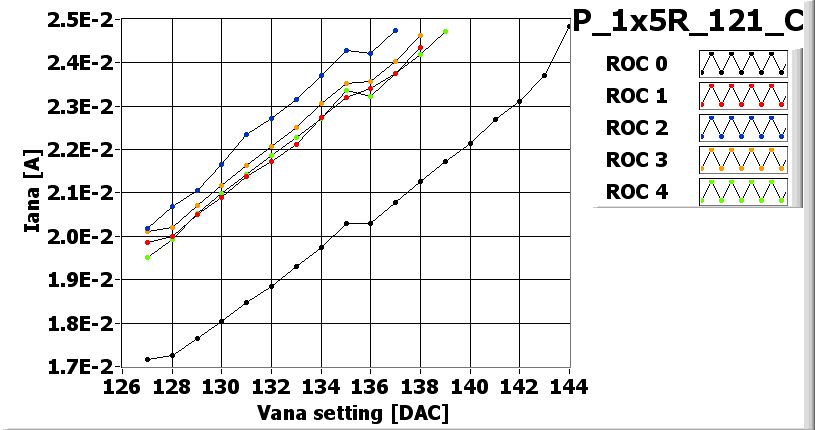

![[IMAGE] of](P_1x5R_121_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_121_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_121_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_121_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_121_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 110 | 105 | 105 | 110 |
| Vsf | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 115 | 100 | 80 | 95 | 90 |
| VIbias_PH | 95 | 100 | 95 | 100 | 100 |

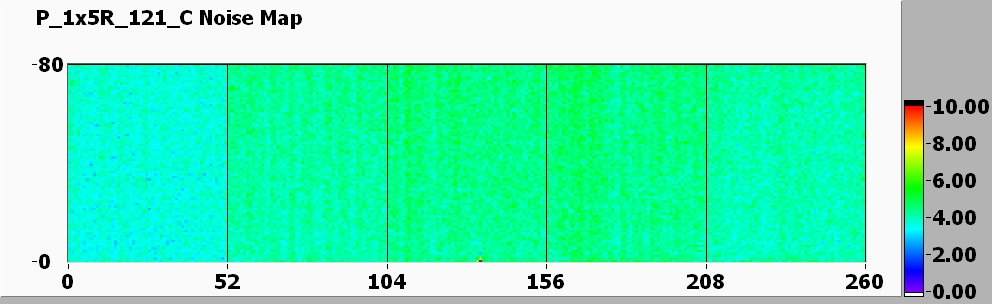

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_121_C-330-noise.jpg)

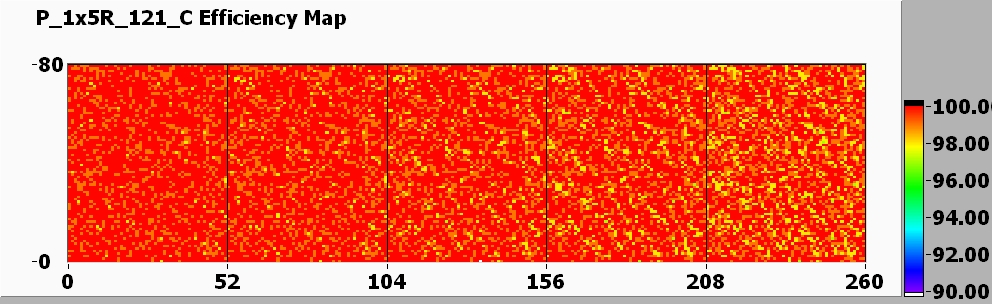

Efficiency MAP
![[IMAGE] of](P_1x5R_121_C-330-efficiency.jpg)

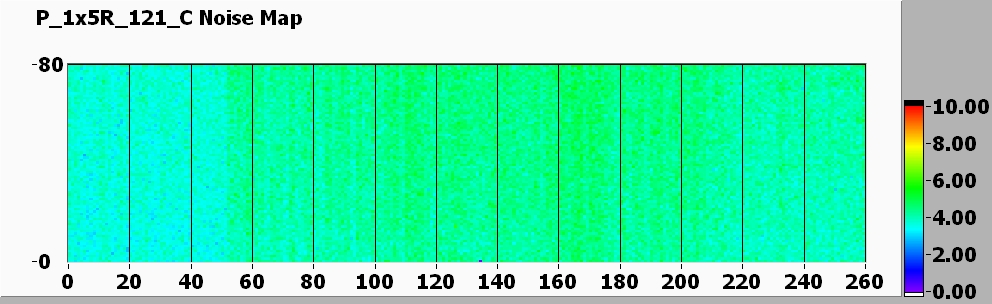

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_121_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_121_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
