P_1x5R_121

P_1x5R_121_C

Production testing

Date:6/14/2007

Operator: Emily Grace

start testing time:10:51 AM

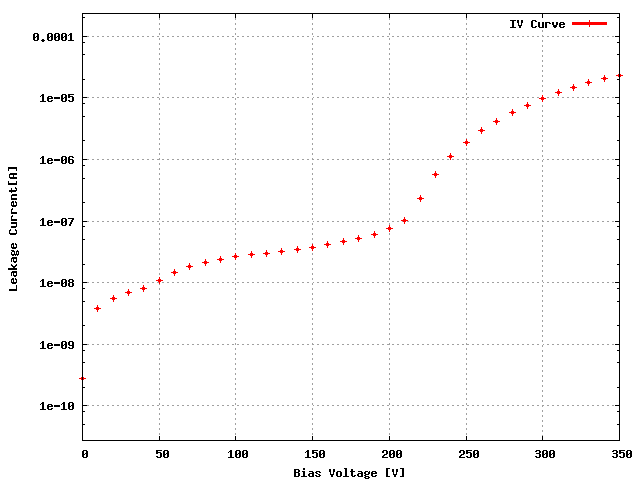

Sensor: S_1x5R_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KZNG1JT 51B

ROC1 KZNG1JT 61C

ROC2 KZNG1JT 61D

ROC3 KZNG1JT 62C

ROC4 KZNG1JT 42C

ROC	ROC wafer	Label
ROC0	KZNG1JT	51B
ROC1	KZNG1JT	61C
ROC2	KZNG1JT	61D
ROC3	KZNG1JT	62C
ROC4	KZNG1JT	42C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 166 154 162 162 162

Vana, VanaData 144 138 137 138 139

CalDelData and plots 67 88 85 99 74

VthrCompData and plots 90 79 74 74 75

TestDdata ,TestD Plots 0 1 1 0 3

LightData ,Light Plots 0 0 0 7 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	110	105	105	110
Vsf	145	140	140	140	140
VoffsetOp	115	100	80	95	90
VIbias_PH	95	100	95	100	100

ROC0 NOISE			MEAN = 3.630225 SIGMA = 0.300335

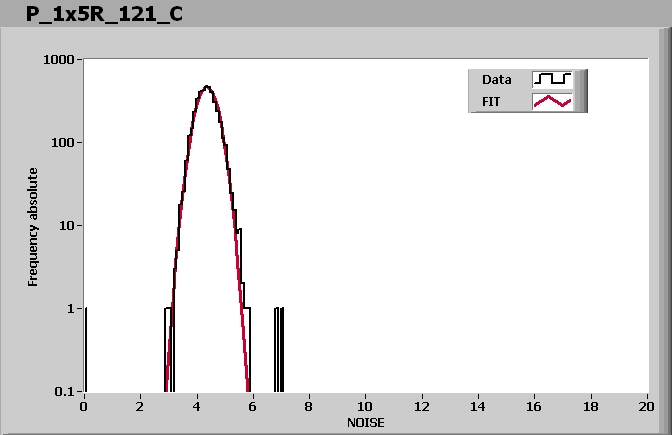

ROC1 NOISE			MEAN = 4.131393 SIGMA = 0.344607
ROC2 NOISE			MEAN = 4.350701 SIGMA = 0.352008

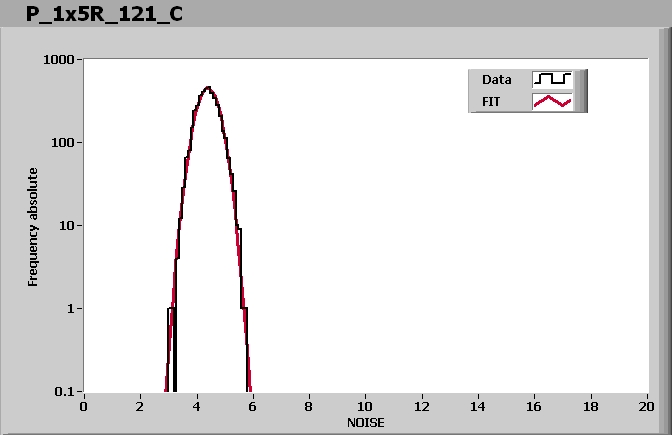

ROC3 NOISE			MEAN = 4.390944 SIGMA = 0.364144
ROC4 NOISE			MEAN = 4.010328 SIGMA = 0.310719

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:16 AM

Ibias_DAC, Ibias_DAC Data	166	154	162	162	162
Vana, VanaData	144	138	137	138	139
CalDelData and plots	67	88	85	99	74
VthrCompData and plots	90	79	74	74	75
TestDdata ,TestD Plots	0	1	1	0	3
LightData ,Light Plots	0	0	0	7	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
