P_1x5R_107_A

Parts committed by Bolla Gino on date 12/18/2006

PartID
BBMBBM_107-1x5
VHDI1x5R_226

ROCROC waferLabel
ROC0W13_XX4JPAT39B
ROC1W13_XX4JPAT39A
ROC2W13_XX4JPAT38C
ROC3W13_XX4JPAT38B
ROC4W13_XX4JPAT38A

Inspected by Lockwood Gale on date 1/8/2007
LR_dev0.020
LL_dev0.060
FINAL COMMENT by Lockwood GaleNo assembly problems. No problems wirebonding.

PLAQUETTE made READY for testing on 1/8/2007 by Lockwood Gale

P_1x5R_107_Aon 1/8/2007 11:50 AM

PLAQUETTE TESTED on 2007-01-08 by Isaac Childres

[IMAGE] of

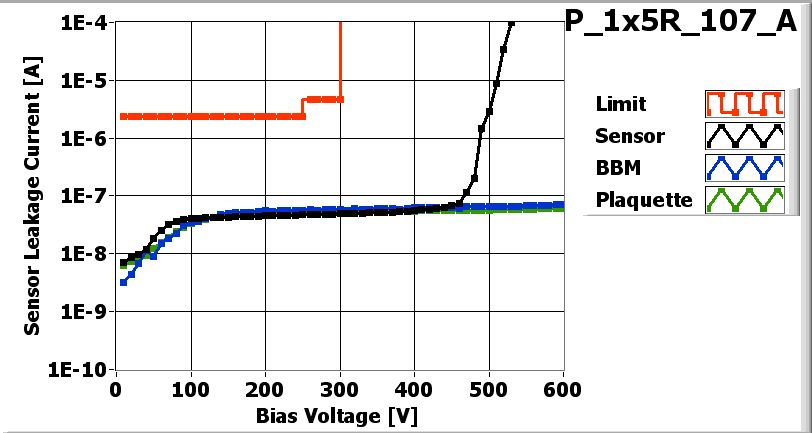

IV_XML-File
Maximum Voltage 600 V
[IMAGE] of

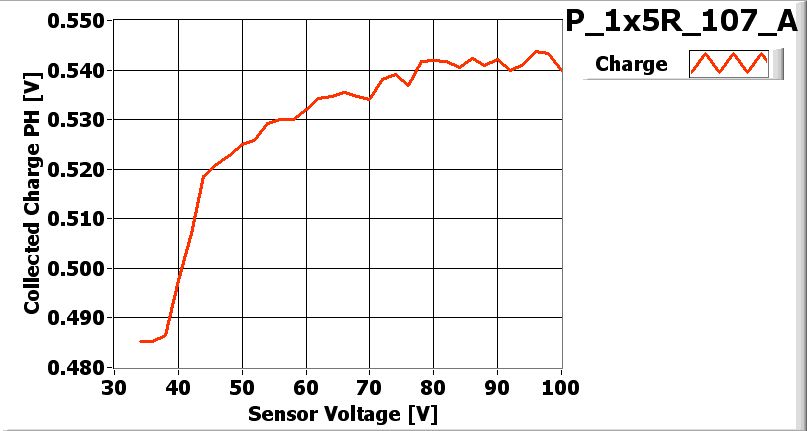

LASER_XML-File
Depletion Voltage 52 V
Operational Voltage 92 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC146144134130136
Vana122139125113127
Cal_Del6960858078
Vthrs_Comp8487606472
Unbumped00000
Dead00000
Noisy00000
Undecoded00000
Total BAD00000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

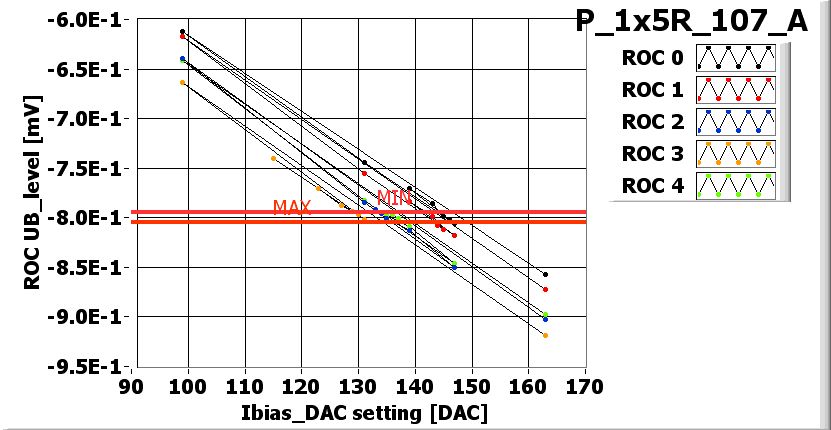

[IMAGE] of I_BIAS_DAC_XML-File

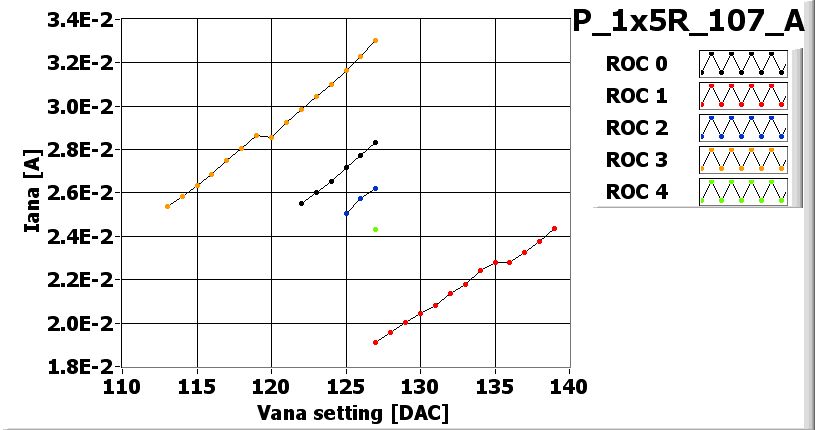

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

PLAQUETTE encapsulated on 1/19/2007 by Arndt Kirk

P_1x5R_107_A-1on 1/19/2007 1:57 PM

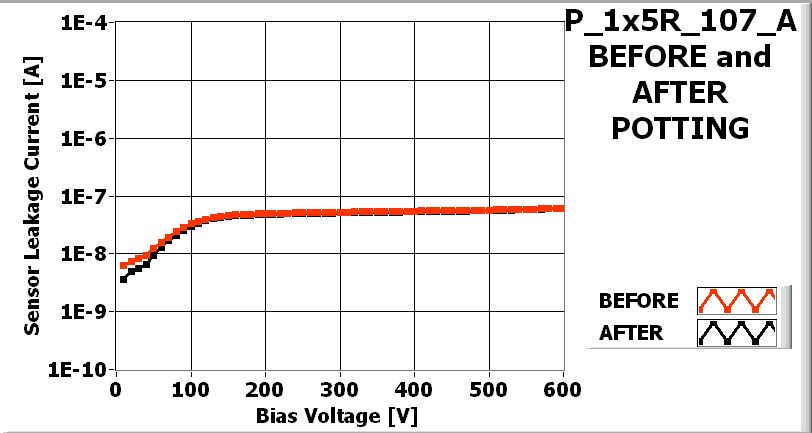

P_1x5R_107_A-1on 1/19/2007 1:57 PM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/00/00/0
ROC10/00/00/00/00/0
ROC20/00/00/00/00/0
ROC30/00/00/00/00/0
ROC40/00/00/00/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-01-23

Plaquette assigned to panel P4L_028
