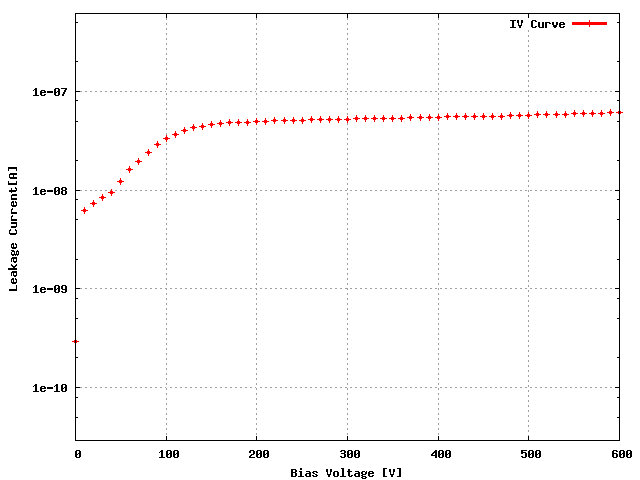

Sensor: S_1x5R_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W13_XX4JPAT | 39B |
| ROC1 | W13_XX4JPAT | 39A |
| ROC2 | W13_XX4JPAT | 38C |
| ROC3 | W13_XX4JPAT | 38B |
| ROC4 | W13_XX4JPAT | 38A |
| Ibias_DAC, Ibias_DAC Data | 146 | 144 | 134 | 130 | 136 |
| Vana, VanaData | 122 | 139 | 125 | 113 | 127 |
| CalDelData and plots | 69 | 60 | 85 | 80 | 78 |
| VthrCompData and plots | 84 | 87 | 60 | 64 | 72 | Depletion Voltage is -52 and suggested operational voltage is -92
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:04 PM
