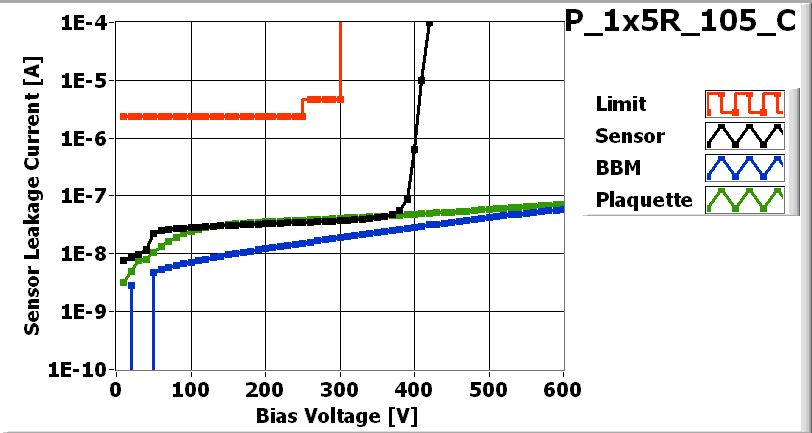

![[IMAGE] of](P_1x5R_105_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

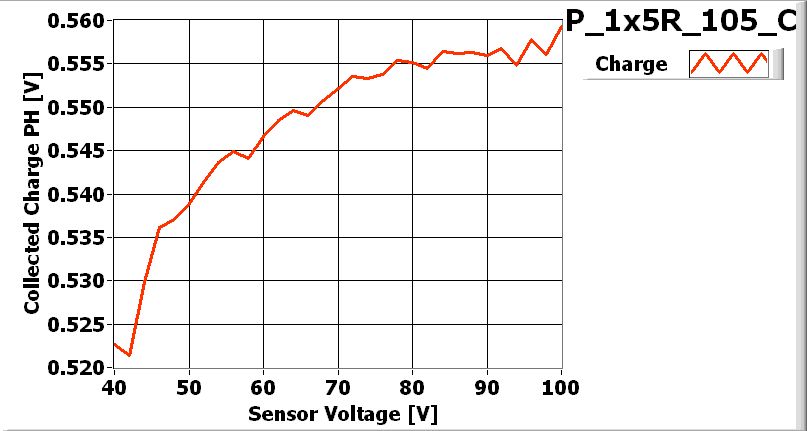

![[IMAGE] of](P_1x5R_105_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 60 V |
| Operational Voltage 100 V |
Parts committed by Arndt Kirk on date 4/5/2007
| Part | ID |
|---|---|
| BBM | BBM_105-1x5 |
| VHDI | 1x5R_264 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 49A |
| ROC1 | XW4KFXT | 74A |
| ROC2 | XW4KFXT | 75B |
| ROC3 | XW4KFXT | 76A |
| ROC4 | XW4KFXT | 29C |
Inspected by Lockwood Gale on date 4/9/2007
| LR_dev | 0.092 |
| LL_dev | 0.058 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/9/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/9/2007 by Ozhan Koybasi
P_1x5R_105_Con 4/11/2007 11:21 AM
P_1x5R_105_Con 4/11/2007 11:21 AM
PLAQUETTE TESTED on 2007-04-11 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 130 | 144 | 138 | 118 | 130 | |
| Vana | 135 | 128 | 142 | 126 | 133 | |
| Cal_Del | 60 | 67 | 83 | 103 | 79 | |
| Vthrs_Comp | 90 | 86 | 79 | 68 | 67 | |
| Unbumped | 0 | 0 | 0 | 0 | 5 | |
| Dead | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 5 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

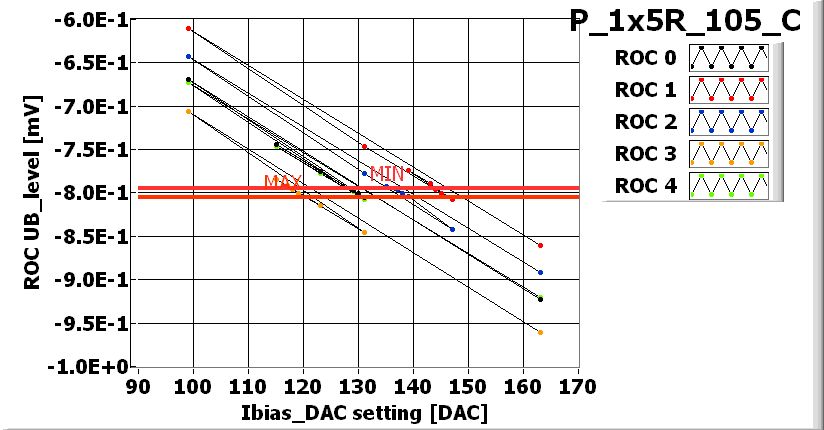

![[IMAGE] of](P_1x5R_105_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

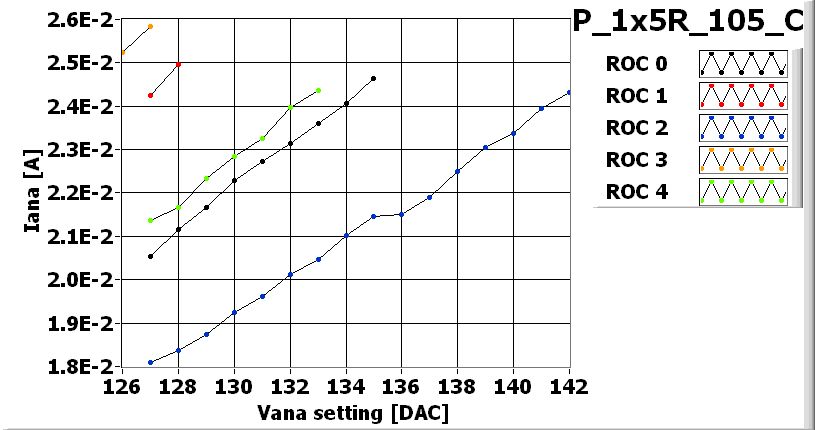

![[IMAGE] of](P_1x5R_105_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_105_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_105_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_105_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_105_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 135 | 100 | 130 | 105 |
| Vsf | 140 | 135 | 140 | 140 | 140 |
| VoffsetOp | 100 | 75 | 100 | 65 | 95 |
| VIbias_PH | 105 | 105 | 105 | 100 | 100 |
Noise MAP

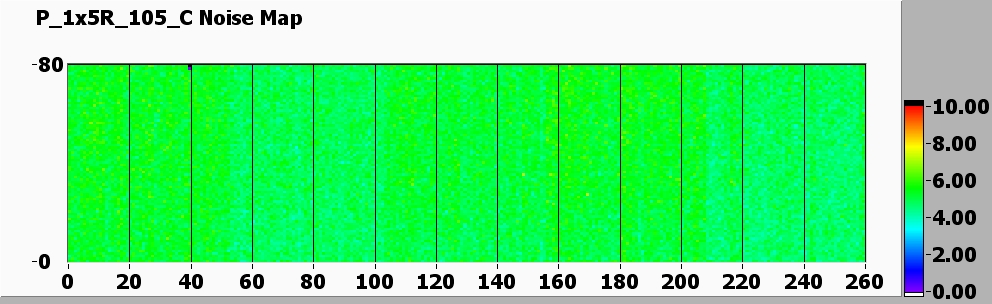

![[IMAGE] of](P_1x5R_105_C-580-noise.jpg)
Efficiency MAP

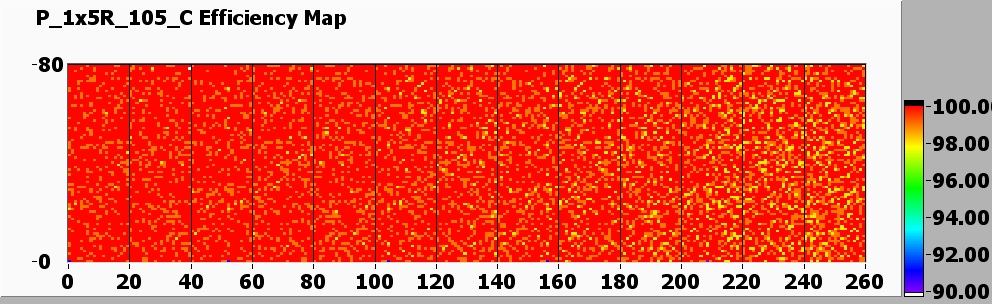

![[IMAGE] of](P_1x5R_105_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
